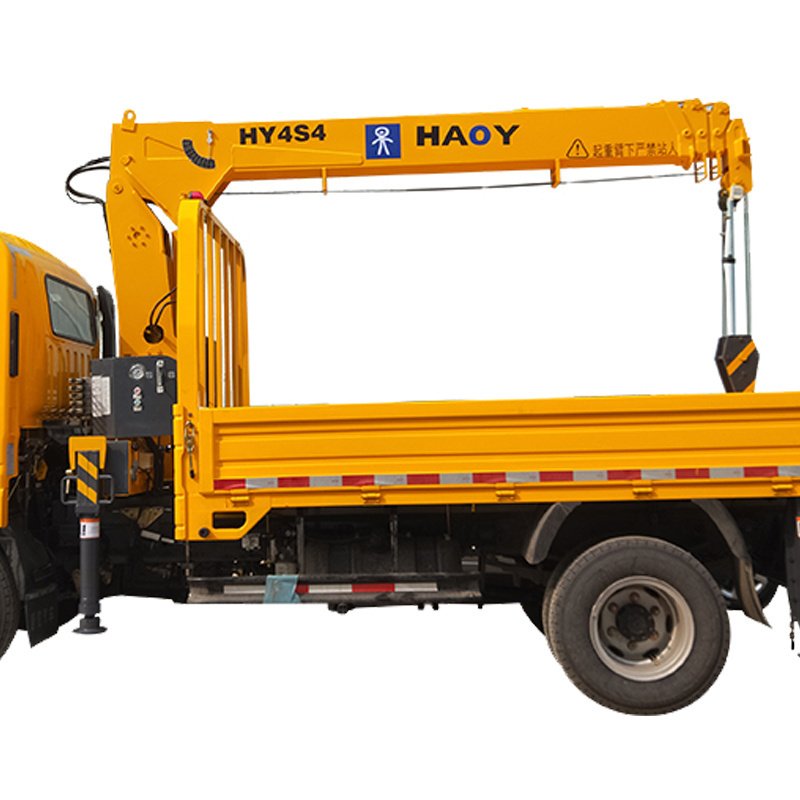

China HAOY With Remote Control Wireless Joy Stick 4 Tons Construction Electric For Light New Truck Crane

China HAOY With Remote Control Wireless Joy Stick 4 Tons Construction Electric For Light New Truck Crane

FOB Reference Price: Get Latest Price

≥1 Pieces

US $9000

≥3 Pieces

US $8800

≥5 Pieces

US $8600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: construction machinery

Rated Lifting Moment:: 8.4Ton.M

Span:: 4055 MM

Place of Origin:: Jiangsu, China

Brand Name:: HAOY

Weight (KG):: 1300 kg

Quick Details

Rated Loading Capacity:: 4 TON

Max. Lifting Height:: 12 M

Engine Brand:: FPT

Application:: construction machinery

Rated Lifting Moment:: 8.4Ton.M

Span:: 4055 MM

Place of Origin:: Jiangsu, China

Brand Name:: HAOY

Weight (KG):: 1300 kg

Item	Unit	HY4S4
Max.Lifting Moment	Ton.M	8.4
Max.Lifting Capacity	Kg	4000
Max.Working Radius	m	10.5
Max.Working High	m	12.0
Slewing Angle	°	360°Full Slewing
Installation Space	mm	850
Qutrigger Span	mm	4055
Crane Self Weight	Kg	1300
Aerial Working High	m	12.0
Rated system pressure/fow	MPa/L/min	20/25

Overwinding Protector

The automatic limiter is sensitive
and reliable, protecting the
wire rope and hook

Copper Based Bushing

0il-free copper-based casing.Good wear resistance, not easy to deform and crack, long service life

Hydraulic Rotary Joint

Low Torque High Speed Long Life Hydraulic Pipeline Can Rotate

360° Infinitely

Cable Agency

42CrMo alloy structural steel,galvanized to prevent rust, high strength and corrosion resistance

Hydraulic Cylinder

Adopt Combined Sealing, Resistant To High Temperature, Low Temperature, Moisture and Corrosion

Remote Control

Wireless remote control

operation,strong anti-interference ability distance up to 100 meters

High Quality Balancing Valve

Original Imported Balance Pressure, Adjust Flow, Good Sealing,

Reliable and Durable

Three Point Bridge Bracket

The three-point bridge bracket protectsthe truck girder from even stress and will not deformation.

Swing Drive

Simple Dtructure, Small Size, Strong Sarrying Sapacity, Sigh Srecision and Reduced Failure Rate

1) How many years of your factory?

We have 13 years production and nearly 10 years experience, we exported to more than 50 countries & regions. And we are a manufacturer specialized in truck crane,pickup crane,aerial platform truck,marine crane.

2) Which kind of payment you can be accepted?

Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.

3) How about the delivery time?

20-40 working days after received 30% T/T or L/C.70% balance payment before shipping.
