Quick Details
-
Brand Name:
-
Ipandee
-
Model Number:
-
Explorer-N series
-
Work Time (h):
-
24h
-
Max PV Power:
-
1560W
-
Max PV Voltage:
-
100VDC, 150VDC
-
Certificate:
-
CE, FCC, ROHS
-
Warranty:
-
2 years
-

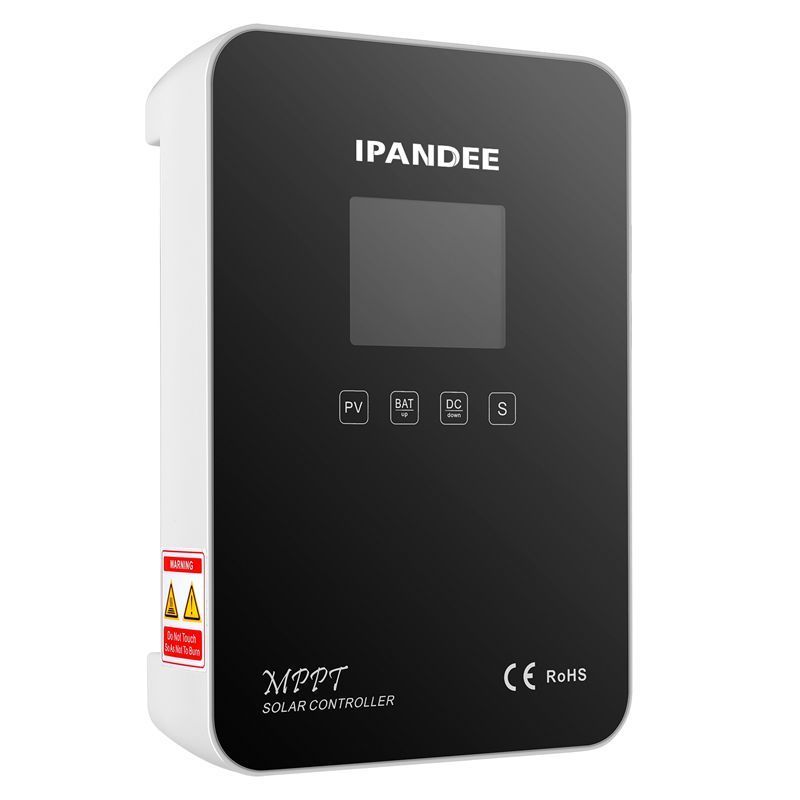

Product name:
-
12V 24V 20A-60A Mppt Solar Charge Controller 12V For Rv Household
-
Battery type:
-
SEL, GEL, FLD, User-defined, LifePO4, Lithium battery etc.
-
Color:
-
Black
-
Charge way:
-
CC, CV,CF
-
Display:
-
High-definition LCD segment code backlight display
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
20A 30A 40A 50A 60A
-
Protection:
-
Input & output over-volt / low-voltage protection etc
-
Communication:
-
Dual RJ45 port / RS485 / support PC software monitoring etc
-
MPPT efficiency:
-
99.5%
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller, home solar system
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ipandee
-
Model Number:
-
Explorer-N series
-
Work Time (h):
-
24h
-
Max PV Power:
-
1560W
-
Max PV Voltage:
-
100VDC, 150VDC
-
Certificate:
-
CE, FCC, ROHS
-
Warranty:
-
2 years
-
Product name:
-
12V 24V 20A-60A Mppt Solar Charge Controller 12V For Rv Household
-
Battery type:
-
SEL, GEL, FLD, User-defined, LifePO4, Lithium battery etc.
-
Color:
-
Black
-
Charge way:
-
CC, CV,CF
-
Display:
-
High-definition LCD segment code backlight display
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Rated Current:
-
20A 30A 40A 50A 60A
-
Protection:
-
Input & output over-volt / low-voltage protection etc
-
Communication:
-
Dual RJ45 port / RS485 / support PC software monitoring etc
-
MPPT efficiency:
-
99.5%
Products Description
|
Explorer-N series
|
|
EN2420
|
EN2430
|
EN2440
|
EN2450
|
EN2460
|
EN4820
|
EN4830
|
|||||||
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
|
|
|
|||||||
|
Standby power
|
|
0.8W~1.5W
|
|
|
|
|
|
|
|||||||
|
Heat-Dissipating method
|
|
Automatic cooling
|
|
|
|
|
|
|
|||||||
|
Battery system
|
|
12Vsystem
: 9VDC-15VDC
24Vsystem
: 18VDC-30VDC
|
|
|
|
|
12Vsystem
: 9VDC-15VDC
24Vsystem
: 18VDC-30VDC
36Vsystem:
32VDC-40VDC
48Vsystem:
42VDC-60VDC
|
|
|||||||
|
Settable lithium-ion battery system
|
|
8VDC-30VDC
|
|
|
|
|
18VDC-60VDC
|
|
|||||||
|
Max.PV input voltage(Voc)
|
|
100VDC
|
|
|
|
|
150VDC
|
|
|||||||
|
Min.Vmpp Voltage
|
|
Battery voltage + 2V
|
|
|
|
|
|
|
|||||||
|
Start-up charging voltage
|
|
Battery voltage + 3V
|
|
|
|
|
|
|
|||||||
|
Low input voltage protection
|
|
Battery voltage + 2V
|
|
|
|
|
|
|
|||||||
|
Over voltage protection / Recovery
|
|
100VDC/95VDC
|
|
|
|
|
150VDC/145VDC
|
|
|||||||
|
Rated input power |
12V system
|
260W
|
390W
|
520W
|
650W
|
780W
|
260W
|
390W
|
|||||||
|
|
24V system
|
520W
|
780W
|
1040W
|
1300W
|
1560W
|
520W
|
780W
|
|||||||
|
|
36V system
|
--
|
--
|
--
|
--
|
--
|
780W
|
1170W
|
|||||||
|
|
48V system
|
--
|
--
|
--
|
--
|
--
|
1040W
|
1560W
|
|||||||
|
|
Li-ion
|
252W-504W
|
378W-756W
|
504W-1008W
|
630W-1260W
|
756W-1512W
|
252W-1008W
|
378W-1512W
|
|||||||
|
Activation for lithium battery
|
|
Optional
|
|
|
|
|
|
|
|||||||
|
Battery types
|
|
Sealed(SEL).Gel(GEL).Flooded(FLD),User-defined(USER),Li-ion(LIT)
|
|
|
|
|
|
|
|||||||
|
Rated charge current
|
|
20A
|
30A
|
40A
|
50A
|
60A
|
20A
|
30A
|
|||||||
|
Temperature compensation
|
|
-3mV/℃/2V
|
|
|
|
|
|
|
|||||||
|
Charge method
|
|
3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)
|
|
|
|
|
|
|
|||||||
|
Output voltage stability accuracy
|
|
≤±0.2V
|
|
|
|
|
|
|
|||||||
|
Load voltage
|
|
Same as battery voltage
|
|
|
|
|
|
|
|||||||
|
Rated load current
|
|
20A
|
|
30A
|
|
|
20A
|
|
|||||||
|
Load control mode
|
|
On/Off, PV voltage control mode, Dual-time control mode, PV + Time control mode
|
|
|
|
|
|
|
|||||||
|
Low voltage protection
|
|
10.5V (default), 11V (restored), settable
|
|
|
|
|
|
|
|||||||
|
Setting method
|
|
PC software / APP / Controller
|
|
|
|
|
|
|
|||||||
|
Display
|
|
High-definition LCD segment code backlight display
|
|
|
|
|
|
|
|||||||
|
Communication
|
|
Dual RJ45 port / RS485/ support PC software monitoring/ support WiFi module for APP cloud monitoring / support centralized parallel monitoring
|
|
|
|
|
|
|
|||||||
|
Protections
|
|
Input & output over-volt / low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc.
|
|
|
|
|
|
|
|||||||
|
Operating ambient temperature
|
|
-20℃~+50
|
|
|
|
|
|
|
|||||||
|
Storage temperature
|
|
-40℃-+75°C
|
|
|
|
|
|
|
|||||||
|
IP(Ingress protection)
|
|
IP43
|
|
|
|
|
|
|
|||||||
|
Altitude
|
|
0~3000m
|
|
|
|
|
|
|
|||||||
|
Max. connection size
|
|
28m㎡
|
|
|
|
|
|
|
|||||||
|
Recommended breaker
|
|
≥40A
|
≥63A
|
≥63A
|
≥100A
|
≥100A
|
40A
|
60A
|
|||||||
|
Net Weight/Gross Weight (kg)
|
|
1.7/2.03
|
|
2.4/2.83
|
|
|
|
|
|||||||
|
Product size /Packing size (mm)
|
|
220x148x58.8/289x212x105
|
|
245x170x68.5/334x255x123
|
|
|
|
|
|||||||
