Quick Details
-
Power:
-
OEM
-
Dimension(L*W*H):
-
OEM
-
Weight:
-
OEM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
Industrial Cooking Pot Electric Jacketed Kettle Commerical Kettle
-
Material:
-
SUS304 ,316
-
Capacity:
-
100L to 1000L
-
Motor Brand:
-
ABB/Simens /Shanghai
-
Speed of Mixer:
-
36rpm
-
Application:
-
Food Industry
-
Max Cooking Temperature:
-
250C
-
Working Temperature:
-
80C to 220C
-
Heating:
-
Steam /Hot Water /Electric /Gas
-
Certification:
-
OEM
Quick Details
-
Brand Name:
-
KQ
-
Place of Origin:
-
Shanghai, China
-
Voltage:
-
OEM
-
Power:
-
OEM
-
Dimension(L*W*H):
-
OEM
-
Weight:
-
OEM
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
Industrial Cooking Pot Electric Jacketed Kettle Commerical Kettle
-
Material:
-
SUS304 ,316
-
Capacity:
-
100L to 1000L
-
Motor Brand:
-
ABB/Simens /Shanghai
-
Speed of Mixer:
-
36rpm
-
Application:
-
Food Industry
-
Max Cooking Temperature:
-
250C
-
Working Temperature:
-
80C to 220C
-
Heating:
-
Steam /Hot Water /Electric /Gas
-
Certification:
-
OEM

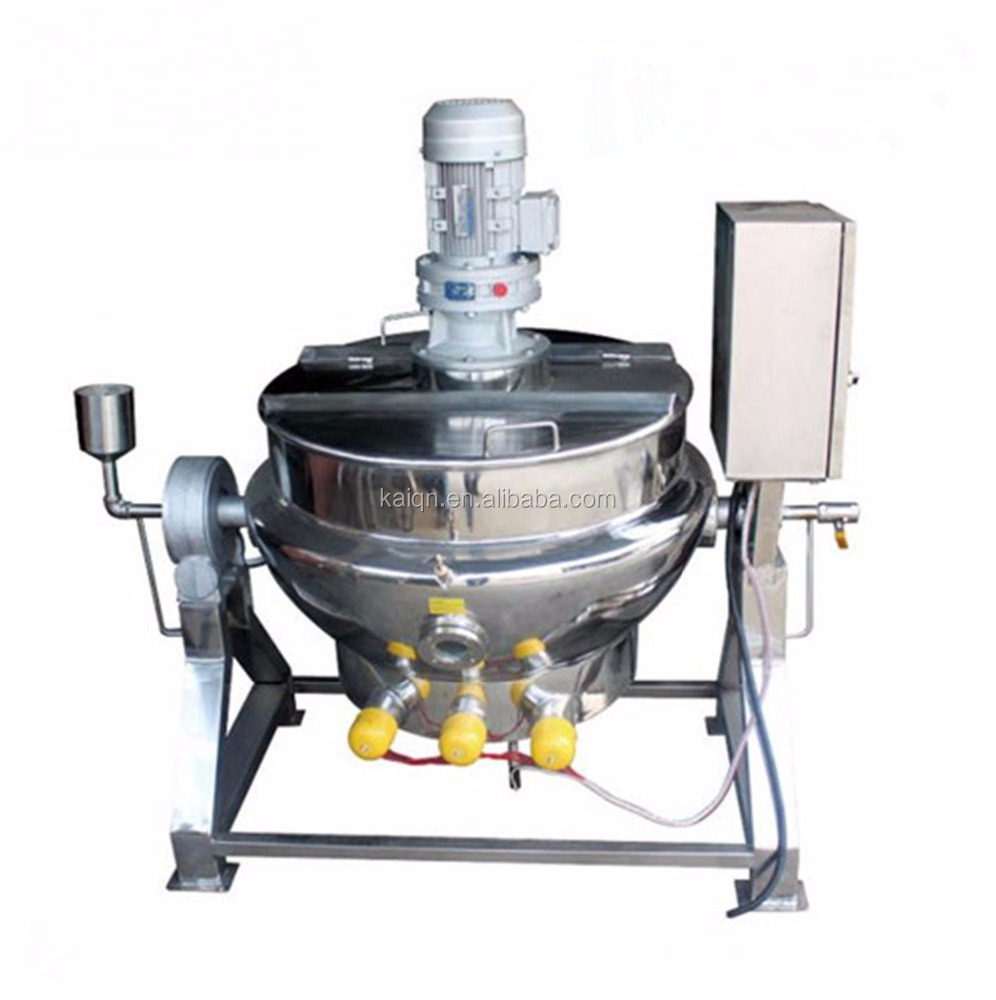

Industrial Cooking Pot Electric Jacketed Kettle Commerical Kettle
Characteristics:
1. Efficient Heating
Electric heating jacketed kettle takes a electricity as heat source and conducting oil or water as conductiong medium. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Electric heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box.
Not only goodappearance, but also easy to install and operate. It is safe and convenient.
100L to 500L Electric Jacketed Pot / industry cooking pot
Technical parameters:
Industrial Cooking Pot Electric Jacketed Kettle Commerical Kettle
|
Metric volume(L) |
50 |
100 |
200 |
300 |
400 |
500 |
600 |
800 |
1000 |
|
|
Caliber (mm) |
Φ600 |
Φ700 |
Φ800 |
Φ900 |
Φ1000 |
Φ1100 |
Φ1200 |
Φ1300 |
Φ1400 |
|
|
Depth of pot(mm) |
400 |
450 |
530 |
630 |
680 |
730 |
780 |
830 |
900 |
|
|
Heating area(m2) |
0.45 |
0.58 |
1.12 |
1.42 |
1.75 |
2 |
2.3 |
3.2 |
3.9 |
|
|
Pipe size |
Steam pipe |
3/4” |
1” |
2” |
||||||
|
Condensate pipe |
3/4” |
1” |
||||||||
|
Interlayer work pressure |
≤0.09Mpa(can be adapted according to customer requirement) |
|||||||||
|
Mixing speed |
36 r/min(can be adapted according to customer requirement) |
|||||||||
|
Mixing power(Kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
2.2 |
|
Industrial Cooking Pot Electric Jacketed Kettle Commerical Kettle
