- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Smoke extrator
-
head:
-
single
-
Model:
-
C100
-
Application:
-
laser marking partner
-
Function:
-
treat dust smoke places smell toxic and harmful gases
-
Advantage:
-
without installation and takes up small space
-
standard:
-
indoor air quality standards, GB21551.1- 2008, GB/T 18801
-
Filter:
-
3 Fliters
-
Material:
-
plastics
-
smoking pipe:
-
75mm*L1.4m
Quick Details
-
Weight (KG):
-
17
-
Core Components:
-
main part except filter
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Smoke extrator
-
head:
-
single
-
Model:
-
C100
-
Application:
-
laser marking partner
-
Function:
-
treat dust smoke places smell toxic and harmful gases
-
Advantage:
-
without installation and takes up small space
-
standard:
-
indoor air quality standards, GB21551.1- 2008, GB/T 18801
-
Filter:
-
3 Fliters
-
Material:
-
plastics
-
smoking pipe:
-
75mm*L1.4m
Product Feature
C100, C200 series of dust purifier" is our company's first research and development of production, representing the industry high-end level, leading the smoke and dust purification industry benchmarking products!
1.Purification has good filtering effect due to the soldering tin, tin tin dipping, laser marking, laser medical cosmetology, moxibustion and chemical experiment, a small amount of dust, smoke places smell, toxic and harmful gases. The product is suitable for point to point to absorb pollutants.
2.Working on these occasions, there will be a large number of harmful smoke, gas and materials that are harmful to the human body. For example, the most common use of soldering, in different materials, different additives and different welding temperature will produce different toxins and carcinogens are moderate. This series of purification equipment is the first choice to protect the health of the operator.
3.The product adopts multi-layer filtration device, including initial effect filter, medium efficiency and high efficiency filter element (composed of HEPA efficient filtration part and gas filtration part).
4.It can make stepless precise adjustment of air volume according to the amount of pollutant production. It can effectively filter and intercept contaminated particles on 0.5 micron m and absorb toxic gases, and the rate of filtration and purification can reach 99.99%. The clean air after purification can be directly discharged indoors.

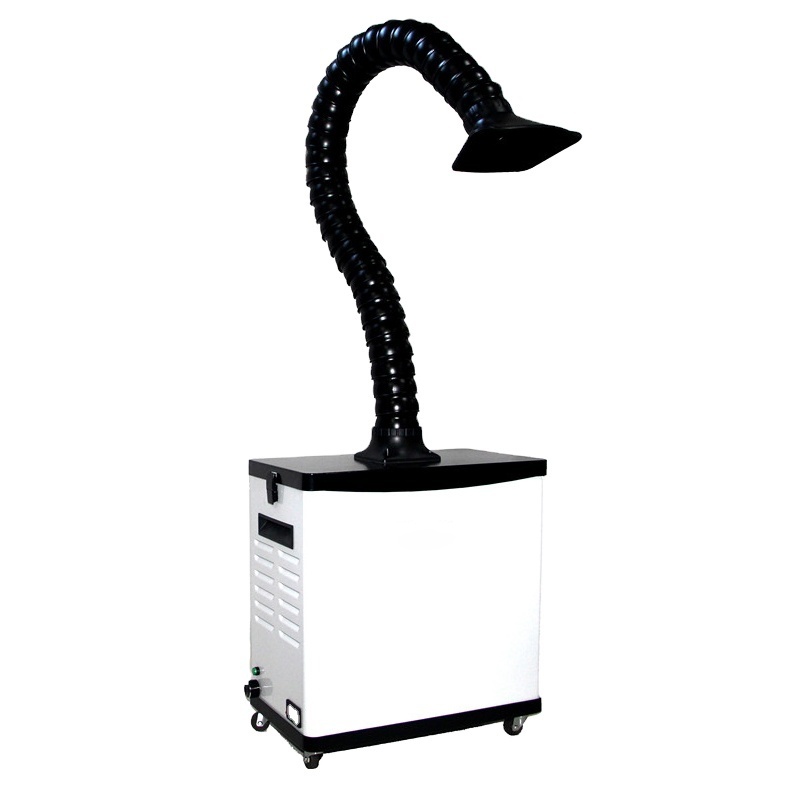

C100
C100 single station Suitable for single station,
filter solder, laser marking smoke. The fuselage is light and
easy to move. It can be used without installation and takes up small space
C200
C200 double station It can be used at two workplaces at the
same time to filter solder and laser marking smoke. Light body, no need to install can be used, occupying a small space.
Parameters
|
Model
Parameters |
C100 single station
|
C200 double station
|
||
|
Inlet air interface
|
￠75mm
|
￠75mm*2
|
||
|
input voltage
|
110V 220V 50Hz-60Hz
|
110V 220V 50Hz-60Hz
|
||
|
Rated power
|
100W
|
200W
|
||
|
Wind speed
|
17m/s
|
2×12 m/s
|
||
|
Filtering effect
|
0.5μm 99.99%
|
0.5μm 99.99%
|
||
|
noise
|
＜55dB
|
＜60dB
|
||
|
Smoking tube (marking)
|
￠75mm*L1.4M
|
￠75mm*L1.4M
|
||
|
Air volume
|
260m³/h
|
380m³/h
|
||
|
Fuselage size（mm）
|
W420×T240×H450
|
W420×T240×H480
|
||
|
Fuselage weight
(no smoking arm) |
17kg
|
19kg
|
||
|
Note:
1. the type, length and size of the smoking tube can be provided according to the requirements of the customer. 2.C200 models can also be replaced with single inlet. |
|
|
||
Specification
|
Name of
part |
Quantity
|
Specification
|
Remark
|
|||
|
Mainframe of purifier
|
1PCS
|
C100、C200
|
|
|||
|
External
power line |
1 PCS
|
L1.5m
|
|
|||
|
Slub smoking tube
|
1PCS |
caliber￠ 75mmxL1.4m
|
C200 The model is 2
|
|||
|
Smoke
collecting cover |
1 PCS |
￠ 75mmInterface
|
C200 The model is 2 |
|||
|
Instructions
|
1 PCS
|
|
|
|||
|
Warranty
card |
1 PCS
|
CX01
|
Installed in high efficiency filter core
|
|||
|
First effect
filter cotton |
1 PCS |
ZX01 |
Installed in high efficiency filter core
|
|||
|
Medium
effect filter core |
1 PCS |
GX01 |
|
|||
|
Note: 1. the type, length and size of the smoking tube can be provided according to the requirements of the customer. 2.C200 models can also be replaced with single inlet.
|
|
|
|
|||
