Quick Details
-
Brand Name:
-
JAC, JAC
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2752 *1225 *2090mm
-
Weight (KG):
-
6400 kg
-
Model:
-
CPCD40
-
Rated load:
-
4000kg
-
Weight:
-
6400KG
-
Gearbox:
-
Automatic
-
Min ground clearance:
-
175MM
-
Wheelbase:
-
2000MM
-
Free lift:
-
150mm
-
Fork size (L*W*H):
-
1220x150x50mm
-
Load center:
-
500
Quick Details
-
Min. Lifting Height:
-
2270mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
JAC, JAC
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
2752 *1225 *2090mm
-
Weight (KG):
-
6400 kg
-
Model:
-
CPCD40
-
Rated load:
-
4000kg
-
Weight:
-
6400KG
-
Gearbox:
-
Automatic
-
Min ground clearance:
-
175MM
-
Wheelbase:
-
2000MM
-
Free lift:
-
150mm
-
Fork size (L*W*H):
-
1220x150x50mm
-
Load center:
-
500
Contact
Sales Manager:
Kristen Huang
Whatsapp/Mobile phone
/Wechat
:
+86 13216792705
Email:
kristen@liebty.com
Company: liebty Machinery(Hangzhou) Co.,Ltd
Add: Room 208, Building 3, Bo.1866, Binxing Road, Changhe Street, Zhejiang, China
Products Description
The leading products of Heli forklifts are "Heli, HELI" brand series forklifts. More than 2,000 models and 512 types of products produced online all have independent intellectual property rights, and the comprehensive performance of the products is at the international advanced level.

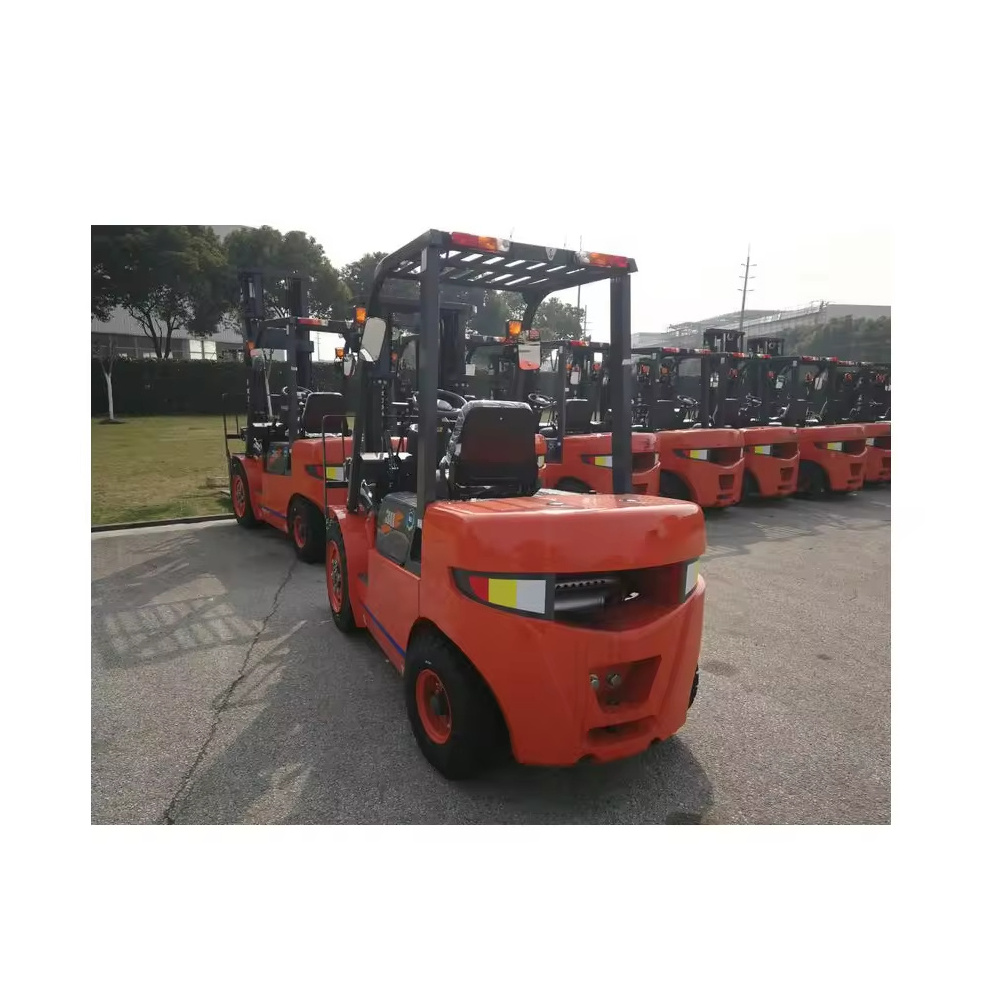

Details Images
Specifications
|
Model
|
|
|
CPD40S
|
||
|
Load capacity
|
|
|
4000kg
|
||
|
Max lift height
|
|
|
6.0m
|
||
|
Free lift
|
|
|
0.3m
|
||
|
Max lifting speed
|
|
|
0.25m/s
|
||
|
Max travel speed with/without load
|
|
|
13/15km/h
|
||
|
Fork Tilt angle(up/down)
|
|
|
5°/3°
|
||
|
Min turning radius(outside)
|
|
|
4.1m
|
||
|
Climbing degree (full load)
|
|
|
13%
|
||
|
Min ground clearance (full load)
|
|
|
0.17m
|
||
|
Overall dimension |
Length
|
|
4.40m
|
||
|
|
Width
|
|
2.0m
|
||
|
|
Height
|
When the fork is in the lowest position
|
2.65m
|
||
|
|
|
When the fork is in the highest position
|
6.16m
|
||
|
Wheel base
|
|
|
2.46m
|
||
|
Tread
|
|
|
1.6m
|
||
|
Pallet height(full load)
|
|
|
0.92m
|
||
|
Pallet width
|
|
|
1.15m
|
||
|
Fork length
|
|
|
1.22m
|
||
|
Maximum fork spacing
|
|
|
0.94m
|
||
|
Tyre
|
|
|
8.25-15-14PR
|
||
|
Overall weight
|
|
|
7200kg
|
||
|
Battery(V/AH)
|
|
|
80V/500Ah
|
||
|
Drive motor
|
|
|
16.6kw
|
||
|
Oil pump motor
|
|
|
13.5kw
|
||
|
Traveling speed regulation mode
|
|
|
Double electric double control full AC(USA CURTIS electric controlle
|
||
