Quick Details
-
Theory:
-
Diaphragm pump
-
Product name:
-

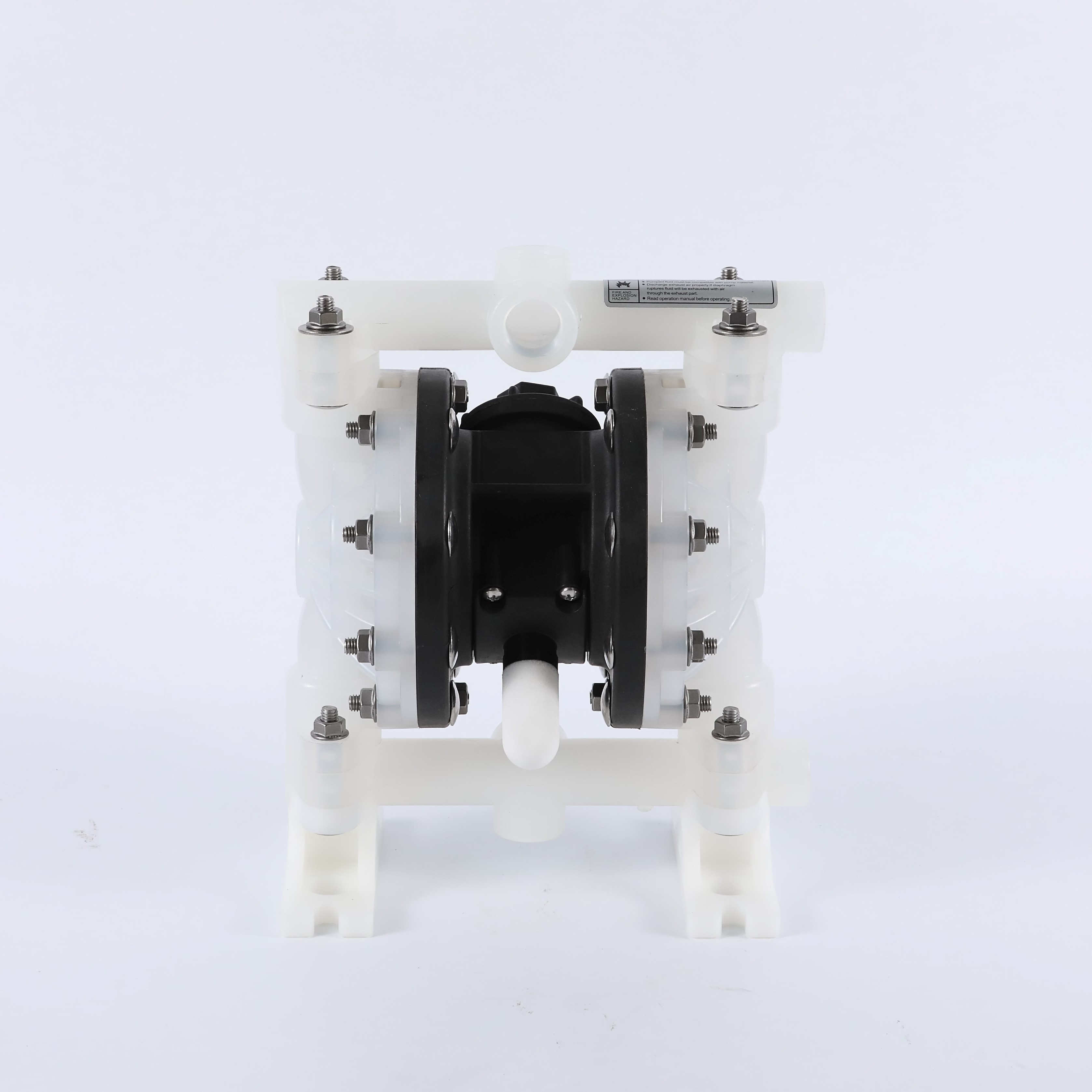

Portable Air Diaphragm Pump for Sludge Suction With Pvdf Body
-
Material:
-
Stainless steel aluminum plastic etc
-
Certificate:
-
CE Certificate
-
Feature:
-
Compact Size
-
Type:
-
Diaphragm
-
advantages:
-
Explosion-proof zero leak
-
OEM:
-
Applicable
Quick Details
-
Pressure:
-
Low Pressure
-
Place of Origin:
-
Shanghai, China
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Diaphragm pump
-
Product name:
-
Portable Air Diaphragm Pump for Sludge Suction With Pvdf Body
-
Material:
-
Stainless steel aluminum plastic etc
-
Certificate:
-
CE Certificate
-
Feature:
-
Compact Size
-
Type:
-
Diaphragm
-
advantages:
-
Explosion-proof zero leak
-
OEM:
-
Applicable
1/2 inch Air Diaphragm Pump With PVDF Body for strong acid with CE and ISO9001 Certificate
Pneumatic Diaphragm Pump Advantages:
1. Explosion-proof, zero leak, simple operation.
2. Idling capability,Self suction, No complex control.
3. Diversity of material,no rotating parts,applicable to various erosive situations.
4. Diaphragm, ball and ball seat adopt imported materials with longer service life.
5. Modularization of main valve and air motor. No broken, easy to disassemble and repair.
| Mode | Max.Suction Lift (dry\wet,m) | Max. particle diameter (mm) | Suction and discharge size (inch) | Air inlet size (inch) | Max. flow rate (L/min) | Max. air consumption (m 3 /min) |
| HY-15/20 | 4 \ 7.6 | 2.5 | 1/2 3/4 | 1/4 | 57 | 0.672 |
| HY-25 | 4 \ 8 | 4 | 1 | 1/2 | 157 | 1.7 |
| HY-40 | 5 \ 8 | 5 | 1½ | 1/2 | 358 | 3.5 |
| HY-50 | 5 \ 8 | 6 | 2 | 1/2 | 587 | 4.9 |
| HY-80 | 5 \ 8 | 9.4 | 3 | 3/4 | 1060 | 9.1 |
| Product Marking | Function Description |
| A | Simple structure,reliable connection ,easy assembly and disassembly. |
| B | Modular design,low air consumption,no dead spots and no need lubrication. |
| C | Enhanced the chamber strength,has long_term durability. |
| D | Bolts connection design,good seal. |
| E | Adopt special grinding machine to process in high roundness and good seal. |
| F | Accurately calculatethe diaphragm moving distance to reduce the force to diaphragm. |
Sludge Treatment "Sludge" is by means of physical, chemical, biological, and removal of a number of production, Life of harmful substances do not need to process .
Diaphragm pump also play an important role in environmental protection ,Sludge treatment industry protecting the diaphragm pump in the waste Sludge treatment industry transport all kinds of waste water ,sludge,lime syrup,soft sediments, sewage and chemical waste water .
