- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
Black and white
-
function:
-
momentary
-
Operation force:
-
1.1kgf/1.6kgf/2.0kgf/3.0kgf
-
terminal material:
-
copper plated silver
-
panel mounting:
-
19mm
-
current:
-
3A
-
Vot:
-
30VDC
-
Application:
-
universal
-
weight:
-
45g
-
Material:
-
Nylon/Brass Ni plated
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Jiangsu, China
-
Color:
-
Black and white
-
function:
-
momentary
-
Operation force:
-
1.1kgf/1.6kgf/2.0kgf/3.0kgf
-
terminal material:
-
copper plated silver
-
panel mounting:
-
19mm
-
current:
-
3A
-
Vot:
-
30VDC
-
Application:
-
universal
-
weight:
-
45g
-
Material:
-
Nylon/Brass Ni plated
Specifications
[3 Year Warranty] Get new one for free if products not work in 3 years!

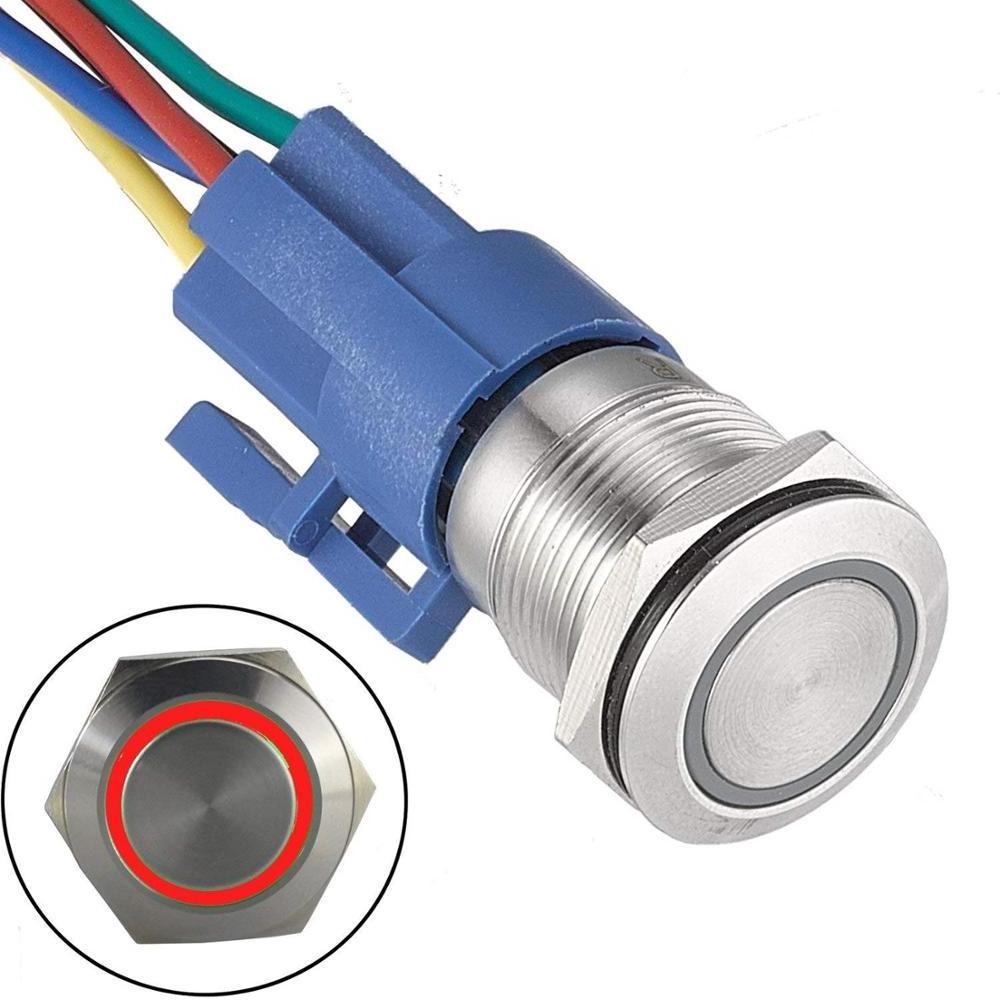

Latching switch
The Latching switch will remain on once it ispressed and stay on until it is pressed again.
Specification:
- Switch Rating: 5A/250VAC
- Operation Temperature: -20℃~ +55℃
- Mechanical life: 1,000,000 cycles
- Electrical life: 200,000 cycles
- Panel thickness: 1 - 10mm
- Protection level: IP65, IK10
- Mounting Cut Hole: 19mm
- Head Diameter: 22mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- LED Rating: 15mA, AC/DC 12V
- LED Pattern: Ring Indicator
- Contact Material: Silver alloy
- Button Material: Stainless Steel
Note:
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.
Packing Include: 1 x push button switch, 1 x pigtail socket, 1 x Wiring diagram
