CNC automatic circular saw crosscut panel saw wood timber aluminium pipe plastic board cutting machine

CNC automatic circular saw crosscut panel saw wood timber aluminium pipe plastic board cutting machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8900

≥5 Pieces

US $7800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V

Dimension(L*W*H):: 9000*1200*1300mm

Application:: wood furniture or box processing

Weight (KG):: 500 KG

Power (kW):: 7.5

Cutting width:: 30-250mm

Cutting thickness:: 10-120mm

Applications:: wood timber,log aluminium cross cut

Function:: panel saw machine

Control type:: PLC program with Touch Screen

Feeding speed:: 5-25m/min

Cutting speed:: 40pcs/min

Cutting saw blade size:: 300-450mm

Production time:: 18 working days

Training:: Online or engineer to customers factory

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: WEHO

Usage:: Cross Cutting

Voltage:: 220V/380V

Dimension(L*W*H):: 9000*1200*1300mm

Application:: wood furniture or box processing

Weight (KG):: 500 KG

Power (kW):: 7.5

Cutting width:: 30-250mm

Cutting thickness:: 10-120mm

Applications:: wood timber,log aluminium cross cut

Function:: panel saw machine

Control type:: PLC program with Touch Screen

Feeding speed:: 5-25m/min

Cutting speed:: 40pcs/min

Cutting saw blade size:: 300-450mm

Production time:: 18 working days

Training:: Online or engineer to customers factory

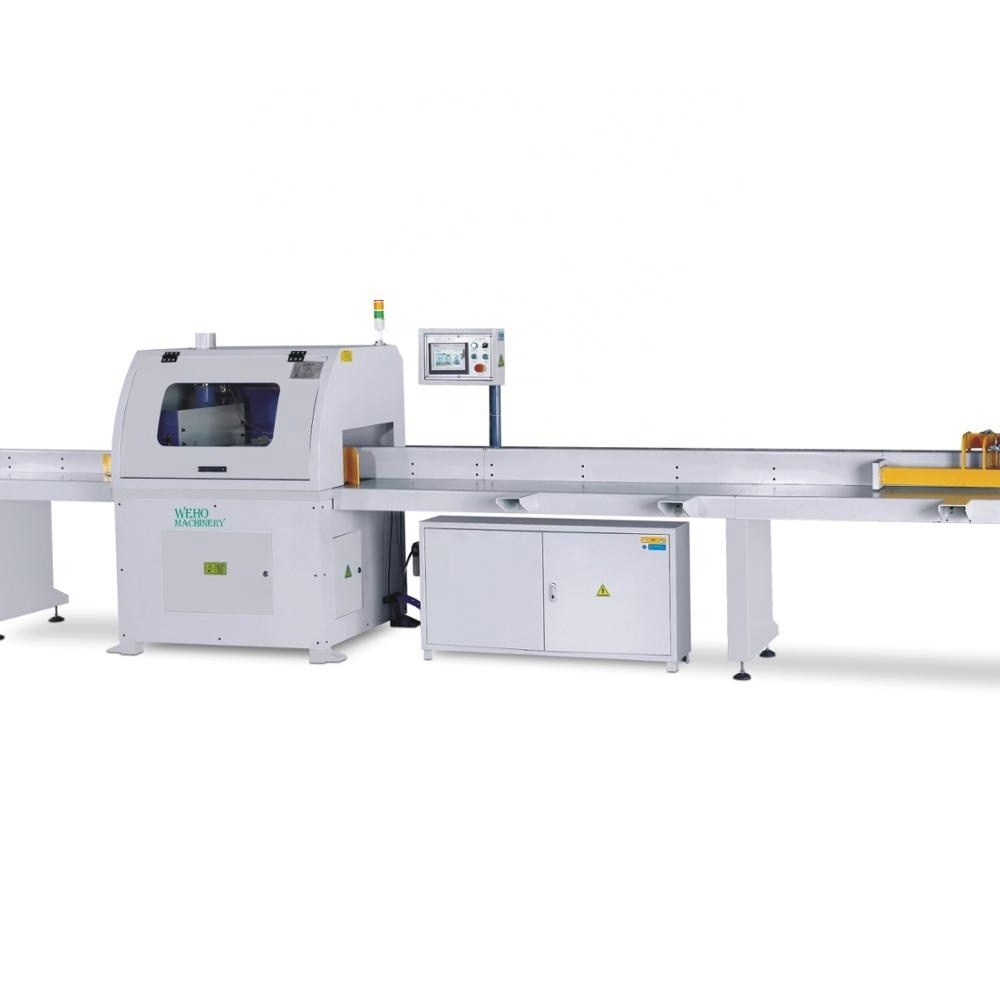

CNC automatic circular saw machine crosscut panel saw for wood timber aluminium pipe plastic board cutting

It is suited for timber, log ,plastic board, aluminium and other similar materials cutting off.

Heavy-duty steel cabinet is built with precision for extra stability and designed for maximum safety.

Easy operation, the cutting cycle is controlled by twin buttons or a foot switch (included).

The saw blade runs inside the frame for safe operation.

Produce name	CNC automatic circular saw machine crosscut panel saw for wood timber aluminium pipe plastic board cutting
Model	MJB601
Sawing thickness	10-120mm
Sawing width	30-250mm
Maximum sawing length	4000mm
Maximum cutting cross section	100*250mm
Feeding speed	5-25m/min
Cutting speed	40pcs/min
Saw blade size	450mm*30mm
Saw shaft speed	3500rpm
Feed servo motor	750w
Saw shaft motor power	7.5kw
Air pressure	5-6kg/cm2
Dust collecting port	100mm*2
Mechanical Dimensions	900012001300mm
Sawing error	+/-0.3mm

Wood circular saw machine for cross cutting off to automatic fixed length

Quick-adjust head clamp.

4" dust collection port. Large side access door for quick easy blade changes.

Precision ground and balanced chrome steel alloy arbor.

Blade guard clamp holds the piece securely in place during the cut.

Wood circular saw machine for cross cutting off to automatic fixed length

Available in Right Hand & Left Hand configuration Powerful 7.5HP main motor Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine Fast cutting rate

Material clamp is easily adjusted for workpiece thickness variation.

Wood circular saw machine for cross cutting off to automatic fixed length

Fast cutting rate, Cycle speeds are adjustable for wood cut off saw machine. Motion cycles are pneumatically operated, and conveniently controlled by a foot switch. Easy belt tension is adjustment or replacement. In-feed and out-feed roller conveyors are standard for cut off saw

STANDARD EQUIPMENT – Pneumatic blade feed. – Two-handed safety starting system. – Variable blade feed speed. – TCT saw blade Ø 350 mm. – Working table of 1.2 mt. left from the blade. – Working table of 1.2 mt. right from the blade.

WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design
and manufacture most of wood processing machines. Our goal is to exceed customer expectations. We’re machine factory, but service
is our business.

Our machine control quality from steel machinery, thicker steel ensure machine rotating without vibration. Completed processingensure machine base not deformated in many years.
