Explosion proof methane analyzer data logger CH4 LEL LPG gas leak alarm detector

Explosion proof methane analyzer data logger CH4 LEL LPG gas leak alarm detector

FOB Reference Price: Get Latest Price

≥1 Pieces

US $90

≥100 Pieces

US $80

≥200 Pieces

US $75

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huafan

Model Number:: HFP-1201(C)

Product name:: New Portable CH4 gas detector

Sensor type:: catalytic combustion

Detecting Gas:: methane ch4

Measure Range:: 0-100%lel

Resolution:: 1%lel

Display:: LCD colorful Display

Alarm Type:: Vibration+Sound+Light Alarm

Data logger:: yes

Power supply:: 2500mAh Li battery with Charger

Certificate:: CE ATEX

Quick Details

Type:: Portable

Warranty:: One year

Place of Origin:: Shaanxi, China

Brand Name:: Huafan

Model Number:: HFP-1201(C)

Product name:: New Portable CH4 gas detector

Sensor type:: catalytic combustion

Detecting Gas:: methane ch4

Measure Range:: 0-100%lel

Resolution:: 1%lel

Display:: LCD colorful Display

Alarm Type:: Vibration+Sound+Light Alarm

Data logger:: yes

Power supply:: 2500mAh Li battery with Charger

Certificate:: CE ATEX

Products Description

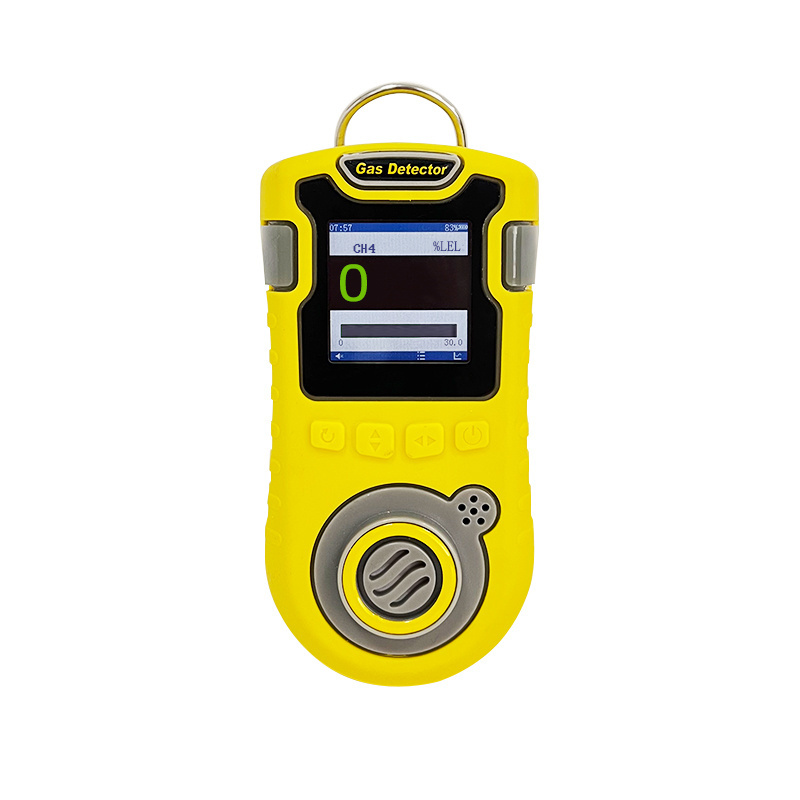

Portable CH4 alarm detector

Portable methane gas detector detect CH4 concentration by natural diffusion.It displays the CH4 gas concentration in real time and will make acousto-optic and vibration alarms when the concentration exceed a certain level.

Features of CH4 detector:

● Handheld(Portable)

● LCD colorful screen

● English version

● High accuracy and sensitivity

● Sound,light and vibration alarms

● High & low alarm points

● With Stainless Steel belt clip
● Rechargeable lithium battery

● Data logger function

● Computer connection is optional

● Industrial explosion-proof
● CE and ATEX approved
● One year warranty

Details Images

Product Paramenters

Name	Portable CH4 gas alarm detector
Size and weight	1305850mm,about 150g
Sensor type	catalytic combustion
Sampling type:	Natural Diffusion
Destination gas	methane (CH4)
Measure range	0-100%LEL,resolution 1ppm
Display	LCD large colorful screen display in English
Alarm	Voice alarm+ light alarm + Vibration
Power supply	the lithium battery(2500 mAh) rechargeable
Charge time	3-5hours,C type USB charger
Charging voltage	DC5V
Data logger	Save 3000 alarm records and 990000 real time data records
Optional	Software with USB (connect with computer)
Features	Zero setting, alarm point set, restore factory settings
Certificates	CE/ATEX/ISO9001/CNEX
Warranty	1year
Temperature range	- 20 ℃ ~ 50 ℃
Humidity	15% ~ 95% RH (No condensation)

Product Features

1) Sensitive sensor; 2) LCD colorful display in English; 3) Alarm Type: Audible, visual and vibration; 4) Low and high alarm points,can be set by user ; 5) Detect CH4 gas concentration by natural diffusion; 6) Rechargeable 2500mAh lithium battery; 7) C type USB interface,can connect with computer (optional); 8) Back alligator clip design,easy to carry and use; 9) Can keep 3000 alarm records and 990000 real time data,view by button or computer; 10) Displaying battery capacity, low battery indication and automatic turn-off; 11) Boot automatically detect, has the advanced self diagnose and self repair function; 12) 100% strictly inspection before package and fast delivery.

Support communicate with computor (Optional)

If you need records analysis or printing, the methods are portable single gas detector+USB cable+ Software+computer.

Related gas detector

Tips: Not only for CH4 gas, H2S CO2 H2 LPG SO2 NOx CL2 HCL NH3 PH3 O2 etc gases also can be detected,support customization,please contact us for more details.

Certifications

Our gas detector has industrial production standards and international export standards， We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.

Why Choose Us

1. More than 20 years professional gas alarm detection factory
2. Rich experience of exporting to many countries
3. Advanced technology and develop team
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. One year warranty and free maintenance within warranty period

9. "Very satisfied" and "working well" etc appraise from our customers all over the world.

Customer Feedback

Application

This portable CH4 gas detector is suitable for detecting CH4 concentration in ambient air, widely used in oil and gas sector, chemical industry, laboratory, and other places, to effectively prevent the occurrence of poisoning.

Product packaging
