The fantastic design make the machine lifespan is double as before.
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV curing ink
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
A3 uv flatbed printer
-
Print head:
-
L1800
-
Application:
-
Phone Shell.Card.Udisk.Mobile Power.Hairpin .personalized Printing
-
Color:
-
6color CMYK/LC/LM
-
Ink:
-
UV Curable Ink
-
Brand:
-
rainbow
-
Software:
-
RIP software
-
Model:
-
RB3250
-
Max. printing size:
-
32*50cm Printer
-
Keyword:
-
Digital Inkject Printer
Quick Details
-
Print Dimension:
-
32*50cm
-
Condition:
-
New
-
Color & Page:
-
Multicolor functional uv flatbed printer
-
Ink Type:
-
UV curing ink
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
A3 uv flatbed printer
-
Print head:
-
L1800
-
Application:
-
Phone Shell.Card.Udisk.Mobile Power.Hairpin .personalized Printing
-
Color:
-
6color CMYK/LC/LM
-
Ink:
-
UV Curable Ink
-
Brand:
-
rainbow
-
Software:
-
RIP software
-
Model:
-
RB3250
-
Max. printing size:
-
32*50cm Printer
-
Keyword:
-
Digital Inkject Printer
Product Description
Product Paramenters
|
Printer model
|

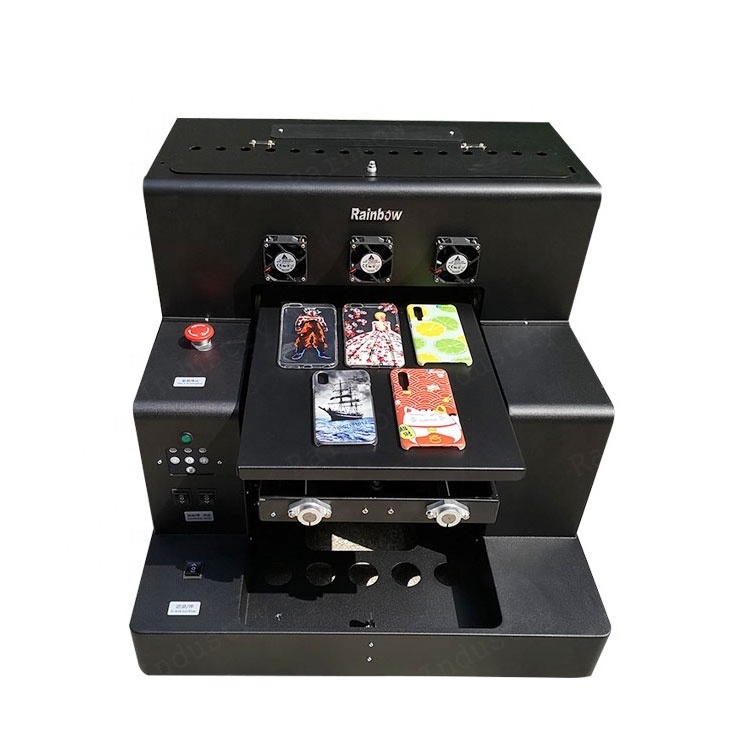

RB-3250 UV Flatbed Printer
|
|
Printing platform size
|
320mm*500mm*220mm (L*W*H)
|
|
Length required for machine work
|
1153mm
|
|
UV lamp effective area
|
279mm*500mm
|
|
Maximum bottle size
|
Diameter*150mm
|
|
Diameter range of printable bottle
|
60-150mm
|
|
Print head
|
EPSON L1800/R1390/1430
|
|
Software setting precision
|
1440*1440dpi
|
|
Printing speed
|
Photo mode: 178s/A3 size
|
|
Ink drops
|
1.5pl
|
|
Printing software
|
AcroRIP White ver9.0
|
|
Print interface
|
USB2.0
|
|
Ink channel (printing color)
|
CMYK LC LM or CMYK+WW 6 colors
|
|
Ink supply system
|
CISS (circulation ink supply system)
|
|
Normal working environment
|
Temperature 15-28 Celsius Humidity 20-80RH
|
|
Power/Voltage
|
250W 110V/220V 50-60HZ
|
|
Printer size
|
850mm*630mm*575mm (L*W*H)
|
|
Net weight
|
36KG
|
|
Packing size
|
920mm*690mm*645mm (L*W*H)
|
|
Gross weight
|
70kg
|
|
Computer operating system
|
Windows7-10,xp
|
Detailed Images
2018 high quality 3d mobile phone case printer a3 uv printer for l800 L1800
| 2018 high quality 3d mobile phone case printer a3 uv printer for l800 L1800 |
RB-3250 A3 UV flatbed Printer cans printing machine for pens printing equiped with L800 print head
which can achieve 3D embossed effect and printing on cans mugs. It is an multi functional LED UV flatbed printer that created by Rainbow Digital Machinery CO.,Ltd. RB-3250 digital cans printer was built with industrial configuration like thicken aluminum profile, water circulation cooling system, air cooling, 250W automatic detect UV Curing system, 6 colors CMYK+WW or CMYK+Lc Lm which achieve natural effect
. Also, it can print object max.22cm media height.
Air Fans to Exclude waste ink from film
6 colors CMYKWW and Water Cooling System
RB-3250 a3 UV faltbed printer equipped with Epso print head 6 colors, CMYKWW or CMYKLcLm, it comes with very good effect on both color and dark materials.
The uv printer has both water cooling system and wind cooling system which cool down the temperature of the UV light so that the uv light lifepspan is 50000 hours long. Also it protect print head from high temperature.
The UV light makes materials dry as soon as printed and achieve quick printing speed.
Water cooling tank
Water cooling pipes
Rotary Printing Available
Rotary Printing device
