Quick Details
-
Power:
-
11kw
-
Dimension(L*W*H):
-
3200mm*2000mm*1350mm
-
Weight:
-
1100kg
-
keywords:
-
box cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
-
Max cutting speed:
-
1200mm/s
-
Safety device:
-
Infrared sensor, safe and reliable
-
Applicable cutting material:
-
T-shirt ,roll fabric,car interior,Leather, cardboard, PVC, acrylic
-
CNC panel:
-
Touch LCD in Chinese and English
-
Graphic Format Supported:
-
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc.
-
Vacuum Pump Power:
-
9Kw
-
Feeding mode:
-
automatic feeding
-
Name:
-
box cutting machine
-
Certification:
-
CE Certification
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VIOOO
-
Power:
-
11kw
-
Dimension(L*W*H):
-
3200mm*2000mm*1350mm
-
Weight:
-
1100kg
-
keywords:
-
box cutting machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
-
Max cutting speed:
-
1200mm/s
-
Safety device:
-
Infrared sensor, safe and reliable
-
Applicable cutting material:
-
T-shirt ,roll fabric,car interior,Leather, cardboard, PVC, acrylic
-
CNC panel:
-
Touch LCD in Chinese and English
-
Graphic Format Supported:
-
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc.
-
Vacuum Pump Power:
-
9Kw
-
Feeding mode:
-
automatic feeding
-
Name:
-
box cutting machine
-
Certification:
-
CE Certification

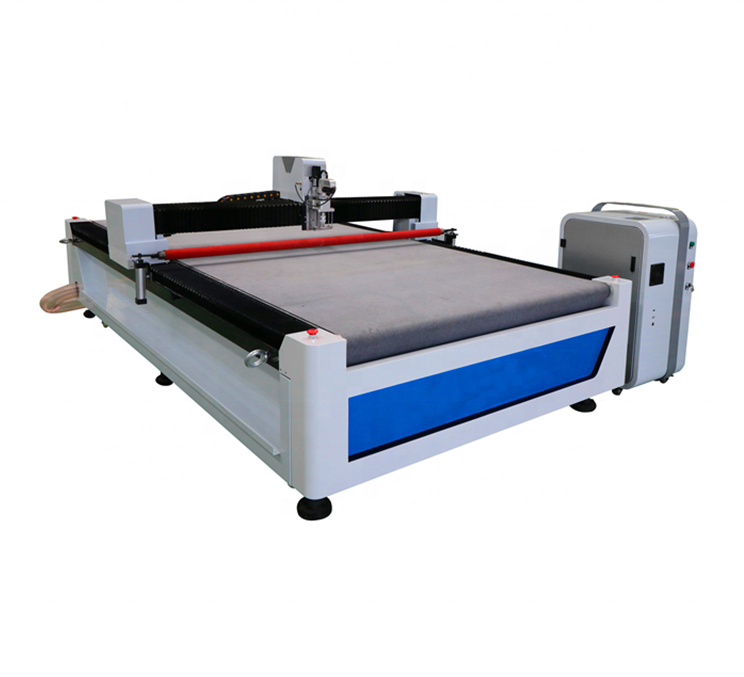

Carton corrugated sheet cnc oscillating V knife box cutting machine box package maker cutting machine
1. Working area: 1800*3000mm
2. Oscillating knife cutting head
3. Ruida controller RDD6584G ( English version )
4. Transmission System: Yaskawa servo motor and drivers , Linear guide, Reducer, Lead screw
5. Rail guide: Taiwan PMI linear square rails guide
6. Steel structure
7. Table: 40mm thickness Aviation aluminum vacuum
adsorption table with felt and 9.0kw air vacuum
pump(with muffler)
8 High sensitive infrared induction security device,
9. Red-light cross positioning system
10. Tool box (spanners,21pcs blades)
11. Punching hole device
12. Conveyor feeding type
Technical Parameter
|
WZD-1830 |
|
|
Cutting Size |
1800*3000mm |
|
Tools included
|
Oscillating knife/ punching hole device |
|
Safety Devices |
Safety devices use infrared sensing, safe and reliable |
|
Max. Cutting Speed |
1200mm/s |
|
No-load Speed |
1500mm/s |
|
Cutting Thickness |
≤25mm (set according to different materials and tools) |
|
Cutting Accuracy |
± 0.1mm |
|
Material Fixing Method |
High power vacuum absorption |
|
Data transmission method |
USB port or Ethernet |
|
Transmission System |
Yaskawa servo motor, Linear guide, Reducer, Lead screw |
|
Rated Power |
11kw |
|
Rated Voltage |
380V±10%/220V±10% ,50HZ/60HZ (Customizable) |
|
Control System |
English LCD touch screen |
|
Support File |
DXF,PLT,AI,SVG,PDF,NC,DST,DSB, etc (Software AutoCad, Coreldraw, AI) |
|
Package |
Plywood wooden case |
