- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boe
-
panel size:
-
43 inches
-
type:
-
a-Si TFT-LCD, liquid crystal glass
-
resolution:
-
3840(RGB)*2160 UHD 103PPI
-
pixel arrangement:
-
RGB vertical strip
-
Display area:
-
941.184(horizontal)*529.416(vertical) mm
-
physical dimension:
-
953(horizontal)*543(vertical)*1.34(thickness) mm
-
surface treatment:
-
Matte (Haze 1%), Hard coating (3H)
-
display brightness:
-
0 cd/m²
-
contrast:
-
1200:1 (Typ.) (Transmission)
-
Recommended perspective:
-
Full view
Quick Details
-
Type:
-
TFT
-
Display Size:
-
43"
-
Supplier Type:
-
monitor
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
boe
-
panel size:
-
43 inches
-
type:
-
a-Si TFT-LCD, liquid crystal glass
-
resolution:
-
3840(RGB)*2160 UHD 103PPI
-
pixel arrangement:
-
RGB vertical strip
-
Display area:
-
941.184(horizontal)*529.416(vertical) mm
-
physical dimension:
-
953(horizontal)*543(vertical)*1.34(thickness) mm
-
surface treatment:
-
Matte (Haze 1%), Hard coating (3H)
-
display brightness:
-
0 cd/m²
-
contrast:
-
1200:1 (Typ.) (Transmission)
-
Recommended perspective:
-
Full view
Products Description
|
model
|

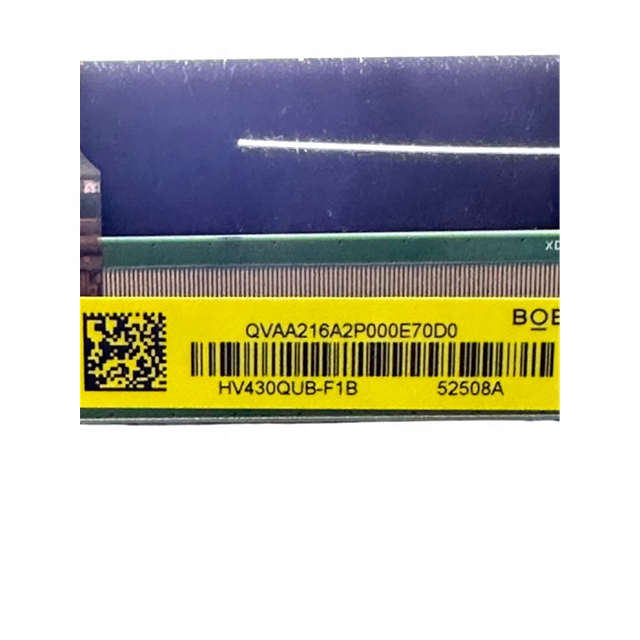

HV430QUB-F70
|
|
Diagonal size
|
43 inches
|
|
type
|
a-Si TFT-LCD, liquid crystal glass
|
|
resolution
|
3840(RGB)*2160 UHD 103PPI
|
|
pixel arrangement
|
RGB vertical strip
|
|
Display area
|
941.184(horizontal)*529.416(vertical) mm
|
|
physical dimension
|
953(horizontal)*543(vertical)*1.34(thickness) mm
|
|
surface treatment
|
Matte (Haze 1%), Hard coating (3H)
|
|
display brightness
|
0 cd/m²
|
|
contrast
|
1200:1 (Typ.) (Transmission)
|
|
Recommended perspective
|
Full view
|
|
Response time
|
8 (Typ.)(G to G) ms
|
|
Viewing angle
|
89/89/89/89 (Typ.) (CR≥10)
|
|
display mode
|
ADS, Normally Black, Transmissive
|
|
Substrate thickness
|
0.50+0.50 mm
|
|
Transmittance
|
4.3% (Typ.) (including polarizer)
|
|
support color
|
1.07B , 75% NTSC
|
|
type of light source
|
no backlight
|
|
weight
|
1.54Kgs
|
|
frame frequency
|
60Hz
|
|
Interface Type
|
51 pins V-by-One 8 lane , terminal
|
|
voltage supply
|
12.0V (Typ.)
|
|
Application Environment
|
Working temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
|
