Quick Details
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Product name:
-
XRF Spectrometer
-
Accuracy:
-
0.03%
-
Value showed:
-
Karat, %, g/l
-
Detector:
-
Si-pin (USA)
-
Measurable elements:
-
72 metallic elements
-
Style:
-
Split type
-
Function 1:
-
Metallic element analysis
-
Function 2:
-
Metal content in electroplating water
-
Function 3:
-
Test layer thickness
Quick Details
-
Warranty:
-
2 years, 2 years,life-long maintenance
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MAYZUM
-
Model Number:
-
X-MAY05
-
Product name:
-
XRF Spectrometer
-
Accuracy:
-
0.03%
-
Value showed:
-
Karat, %, g/l
-
Detector:
-
Si-pin (USA)
-
Measurable elements:
-
72 metallic elements
-
Style:
-
Split type
-
Function 1:
-
Metallic element analysis
-
Function 2:
-
Metal content in electroplating water
-
Function 3:
-
Test layer thickness
Product Description
Gold Karat Density Testing , Silver Purity Analyze Price
Warranty For 2 Years
Original Manufacturer
One-to-one Remote Operation Guidance
Warm Tips:
The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.
The Principle of Energy Dispersive
X Fluorescence Spectrometer
The atomic electron layer is excited by high-energy X-rays, causing the transition of electrons outside the nucleus, resulting inthe release of secondary X-ray energy.
Because the energy released by different elements has different characteristics, the detection system measures these energies andquantities to calculate element content.
The Main Components
High VoltageX-Ray Tube-Detector
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Collimator
Primary filter
Former-Amplifier
Main Amplifier
DPP
Control Module
Communication Module
Display System, etc
Functions
X-MAY80/
X-MAY80-PRO
is a multifunctional spectrum analyzer that can analyze 72 elements (except light elements) from Na to U. The temperature drift rate of instrument parts is controlled to one part per million, which ensures that the instrument exceeds strong stability and ultra-high precision.
This instrument can distinguish 99.99% gold, 99.95% gold, and 99.90% gold.. It is suitable for national jewelry quality inspection agencies, gold purification plants, large jewelry factories and precious metal recycling companies.
The
X-MAY80/
X-MAY80-Pro spectrometer can also detect the plating thickness of the jewelry industry, such as gold rhodium plating, platinum rhodium plating, silver gold plating, etc.; It can also analyze the metal content (g/l) in the electroplating solution, such as rhodium plating solution (commonly known as rhodium water), etc.
Specification parameters
New Design Xrf Spectrometer For Electroplating Silver and Gold Purity Tester
|
Model
|
X-MAY05
|
|
|
|
Analysis Range
|
0.01% to 99.99%
|
|
|
|
Accuracy
|
0.03%
|
|
|
|
Sample Form
|
Solid, powder, liquid
|
|
|
|
X-Ray Tube Voltage
|
5KV - 50KV
|
|
|
|
High Voltage Power Supply
|
0 -50KV
|
|
|
|
X-Ray Tube Current
|
0μA ~ 1000μA
|
|
|
|
Camera
|
HD camera
|
|
|
|
Filters
|
Selectable customized switches
|
|
|
|
Detector Type
|
Si-pin (USA)
|
|
|
|
Resolution
|
135 + 5 ev
|
|
|
|
Multichannel Analyzer
|
Digital multichannel
|
|
|
|
Sample Chamber Size
|
310 *270 * 80 mm
|
|
|
|
Test Time
|
10sec - 100sec
|
|
|
|
Measuring Element
|
72 elements such as Au, Ag, Pt, Pd, Ir, Cd, Cu, Ni, Zn, Rh, Ru, Ir, Co, Os, w and Pb were detected
|
|
|
|
Analysis Software
|
Qualitative and quantitative
|
|
|
|
Power Requirements
|
AC 220V ± 5V / 110V±10V
（No high power electromagnetic and vibration interference sources nearby） |
|
|
Detailed Images

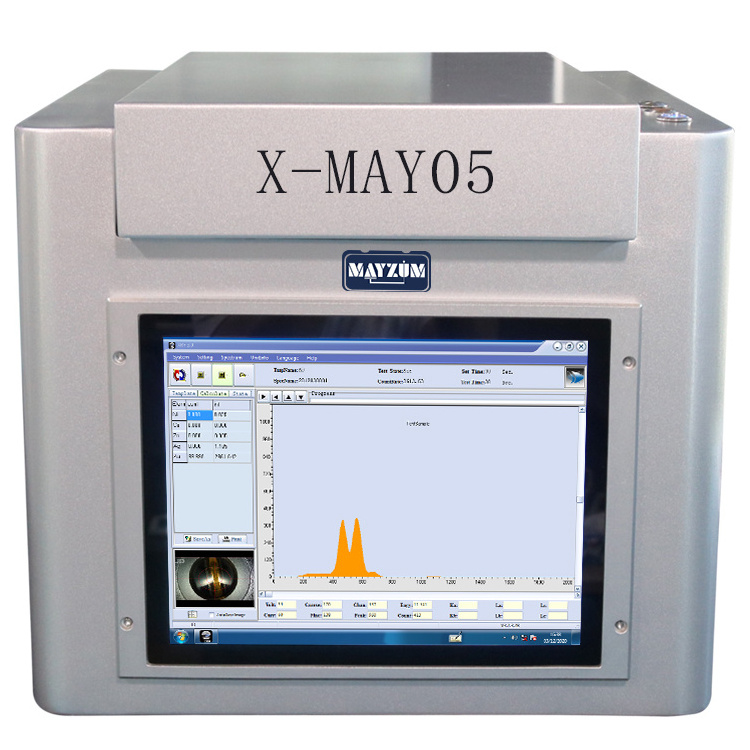

New Design Xrf Spectrometer For Electroplating Silver and Gold Purity Tester
Screenshot of software interface
