- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
22
-
Range of Spindle Speed(r.p.m):
-
200 - 400 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*1000*1500mm
-
Weight (KG):
-
450 KG
-
Product name:
-

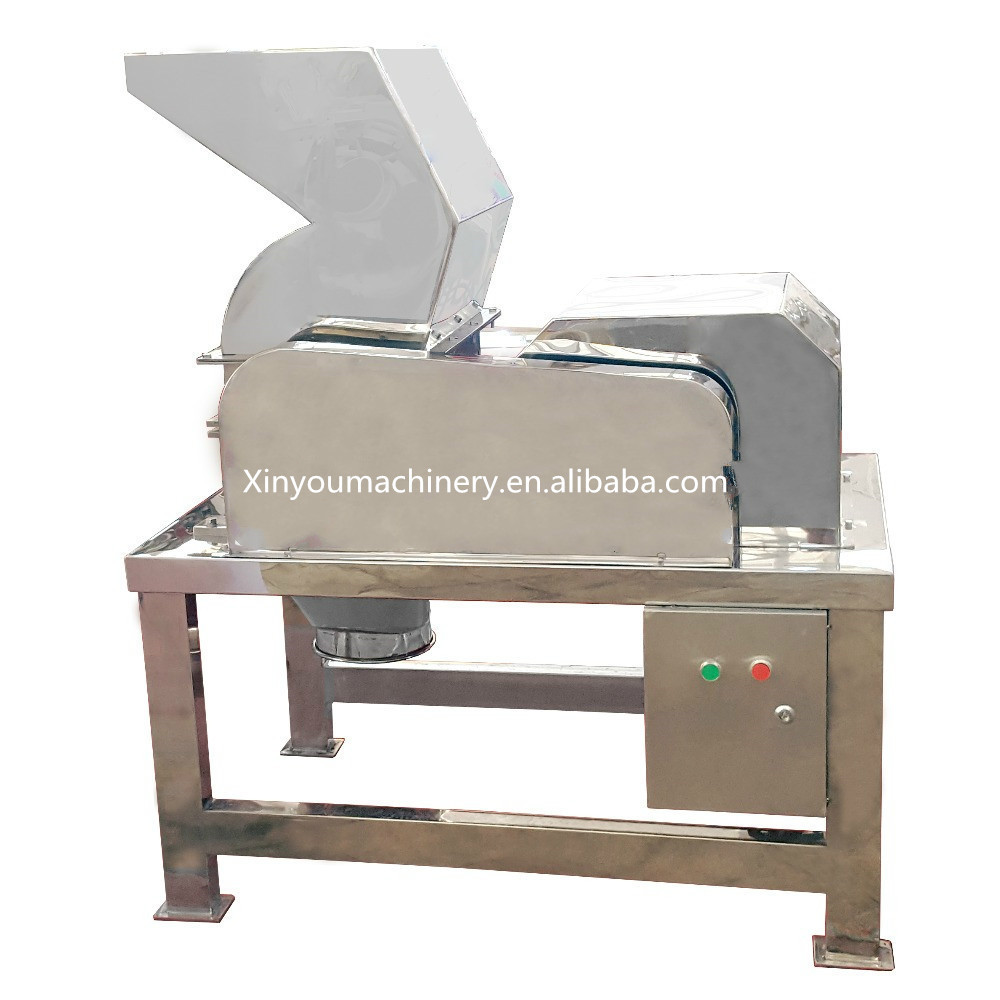

Flowers Crushing Mill Machine Rose Powder Pulverizer
-
Capacity:
-
500-600kg/h
-
Feeding Size:
-
<6mm(Max to 15mm)
-
Grinding Size:
-
0.5-20mm
-
Spindle Speed:
-
400r/min
-
Cleaning means:
-
Air Compressor
-
Certification:
-
CE ISO
-
Package:
-
Wooden Case
Quick Details
-
Output (kg/h):
-
500 - 1000 kg/h
-
Feeding Size (mm):
-
1 - 100 mm
-
Output Size (mesh):
-
0.5 - 20 mesh
-
Power (kW):
-
22
-
Range of Spindle Speed(r.p.m):
-
200 - 400 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XINYOU
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*1000*1500mm
-
Weight (KG):
-
450 KG
-
Product name:
-
Flowers Crushing Mill Machine Rose Powder Pulverizer
-
Capacity:
-
500-600kg/h
-
Feeding Size:
-
<6mm(Max to 15mm)
-
Grinding Size:
-
0.5-20mm
-
Spindle Speed:
-
400r/min
-
Cleaning means:
-
Air Compressor
-
Certification:
-
CE ISO
-
Package:
-
Wooden Case
Certifications
Exhibition
Product Overview
Coarse crusher
Product Application
This pin mill is widely used in Food, chemical and other industries.
There are different models for different requirement.
It has mesh screen inside of the grinding chamber, you can get the powder size by changing the screen size.
Easy to operate,clean and maintenance.
This pin mill is widely used in Food, chemical and other industries.
There are different models for different requirement.
It has mesh screen inside of the grinding chamber, you can get the powder size by changing the screen size.
Easy to operate,clean and maintenance.
Main Features
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 0.5-20 mm granule.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1200 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
1. This grinding machine is widely used in food, chemical and other industry.
2. For normal material, it can grind into 0.5-20 mm granule.Customer can use different size of sieves to get the fineness they need.
3. This machine has different models, capacity from 20-1200 kg/h, customers can choose the right model according to their requirement.
4. The temperature during the crushing process is less than 40 ℃. For sensitive material, customer can choose water cooler or air cooler.
5. Stable quality of finished product with low consumption to save cost.
6. Simple structure, convenient cleaning and low noise.
7. The machine can be equipped with dust collector, no fine powder flying during the grinding process.
8. We can make the input hopper be magnetic to avoid metal damage if you need.
PRODUCT SPECIFICATIONS
|
Model
|
Input size
|
Output size
|
Capacity
|
Grinding motor
|
Overall dimension
|
Weight
|
|
WF-100
|
<50mm
|
0.5-20mm
|
20-80kg/h
|
4kw
|
1120*620*1450mm
|
150kg
|
|
WF-200
|
<50mm
|
0.5-20mm
|
50-150kg/h
|
5.5kw
|
1150*760*1350mm
|
190kg
|
|
WF-300
|
<50mm
|
0.5-20mm
|
100-300kg/h
|
11kw
|
1200*900*1500mm
|
350kg
|
|
WF-400
|
<50mm
|
0.5-20mm
|
300-500kg/h
|
22kw
|
1300*1000*1500mm
|
450kg
|
|
WF-600
|
<50mm
|
0.5-20mm
|
500-800kg/h
|
37kw
|
1500*1200*1600mm
|
800kg
|
|
WF-800
|
<50mm
|
0.5-20mm
|
600-1000kg/h
|
45kw
|
1860*1300*1600mm
|
1200kg
|
