High voltage composite silicone rubber insulators

High voltage composite silicone rubber insulators

Technical parameter for composite insulator

Technical Standard

The design and test of  electrical insulaor is complied full with IEC standard,ISO9001

Advantage of   composite insulator

• High quality post insulator
• Superior performance
• Fouling flash capability
• Convenient operation and maintenance
• Anti-aging

Advantage of composite insulator

1. The electrification of superior performance, capacity flash fouling;

2. Good hydrophobicity;

3. High mechanical strength, safe and reliable operation;

4. Anti-aging superior performance suitable for high altitude areas;

5. Small size, light weight, installation convenient transportation;

6. Not easy to broken, good impact resistance, anti-seismic performance;

7. The operation and maintenance convenience.

Technical parameter for composite insulator

Model	Rated Voltage (KV)	Rated mechanical stretch load (KN)	Structure of connected marks	Structure Height (mm)	Arcing distance (mm)	Creep distance (mm)	Lightning impulse withstand voltage (peak) ≥(KV)	Power frequency withstand voltage(wet) ≥(KV)
FXBW4-10/70	10	70	16W	360	215	480	100	50
FXBW4-10/100	10	100	16W	395	215	480	100	50
FXBW4-35/70	35	70	16W	610	455	1200	230	95
FXBW4-35/100	35	100	16W	650	455	1200	230	95
FXBW4-66/70	66	70	16W	820	710	2210	410	185
FXBW4-66/100	66	100	16W	860	710	2210	410	185
FXBW4-110/70	110	70	16W	1220	1055	3400	550	230
FXBW4-110/100	110	100	16W	1255	1055	3400	550	230
FXBW4-110/120	110	120	16W	1255	1055	3400	550	230
FXBW4-110/160	110	160	20R	1300	1140	3400	550	230
FXBW4-220/70	220	70	16W	2230	2000	6500	1000	395
FXBW4-220/100	220	100	16W	2230	2000	6500	1000	395
FXBW4-220/120	220	120	16W	2230	2000	6500	1000	395
FXBW4-220/160	220	160	20R	2430	2200	7000	1000	395
FXBW4-220/180	220	180	20R	2430	2200	7000	1000	395
FXBW4-220/210	220	210	20R	2430	2200	7000	1000	395
FXBW4-330/100	330	100	16W	3180	2780	9880	1425	570
FXBW4-330/120	330	120	16W	3180	2780	9880	1425	570
FXBW4-330/160	330	160	20R	3440	3000	10450	1425	570
FXBW4-330/180	330	180	20R	3440	3000	10450	1425	570
FXBW4-330/210	330	210	20R	3440	3000	10450	1425	570
FXBW4-500/100	500	100	16W	4450	4050	14100	2250	740
FXBW4-500/120	500	120	16W	4450	4050	14100	2250	740
FXBW4-500/160	500	160	20R	4450	4050	13840	2250	740
FXBW4-500/180	500	180	20R	4450	4050	13840	2250	740
FXBW4-500/210	500	210	20R	4450	4050	13840	2250	740
FXBW4-500/240	500	240	24	4450	4050	13840	2250	740
FXBW4-500/300	500	300	24	4450	4050	13840	2250	740
FXBW4-500/400	500	400	28	4450	4050	13840	2250	740

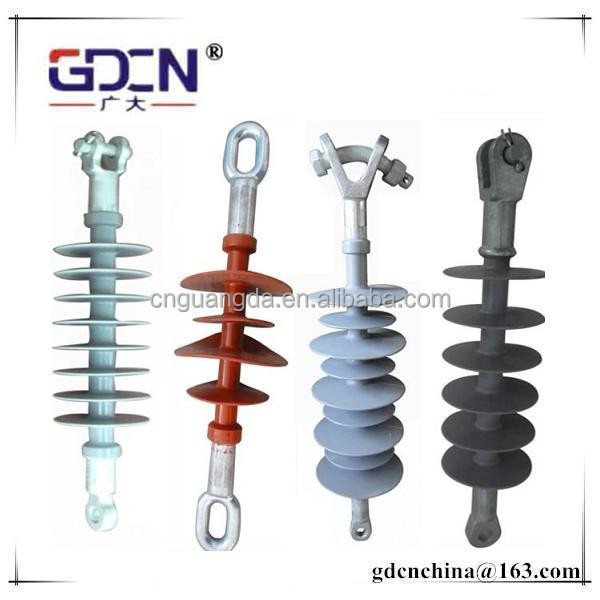

Related Pictures for   overhead line hardware insulator
