Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V, 4KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer
-
Dimension(L*W*H):
-
1400(L)*1600(W)*2000(W)mm
-
Weight:
-
600 KG, 600kg
-
Product name:
-
Liquid Filling and Capping Machine
-
Function:
-
Automatic filling and capping machine
-
Filling range:
-
20-500ml
-
Capping speed:
-
20-30 bottles/min
-
Bottle diameter range:
-
35mm-75mm (customizable)
-
Dimension:
-
1400(L)*1600(W)*2000(W)mm
-
Gas consumption:
-
6-7 KG/CM²
-
Working pressure:
-
0.6-0.8MPA
Quick Details
-
Machinery Capacity:
-
20-30 bottles/min
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Other, Water, lotion
-
Filling Accuracy:
-
±1%
-
Voltage:
-
220V, 4KW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soonfer
-
Dimension(L*W*H):
-
1400(L)*1600(W)*2000(W)mm
-
Weight:
-
600 KG, 600kg
-
Product name:
-
Liquid Filling and Capping Machine
-
Function:
-
Automatic filling and capping machine
-
Filling range:
-
20-500ml
-
Capping speed:
-
20-30 bottles/min
-
Bottle diameter range:
-
35mm-75mm (customizable)
-
Dimension:
-
1400(L)*1600(W)*2000(W)mm
-
Gas consumption:
-
6-7 KG/CM²
-
Working pressure:
-
0.6-0.8MPA

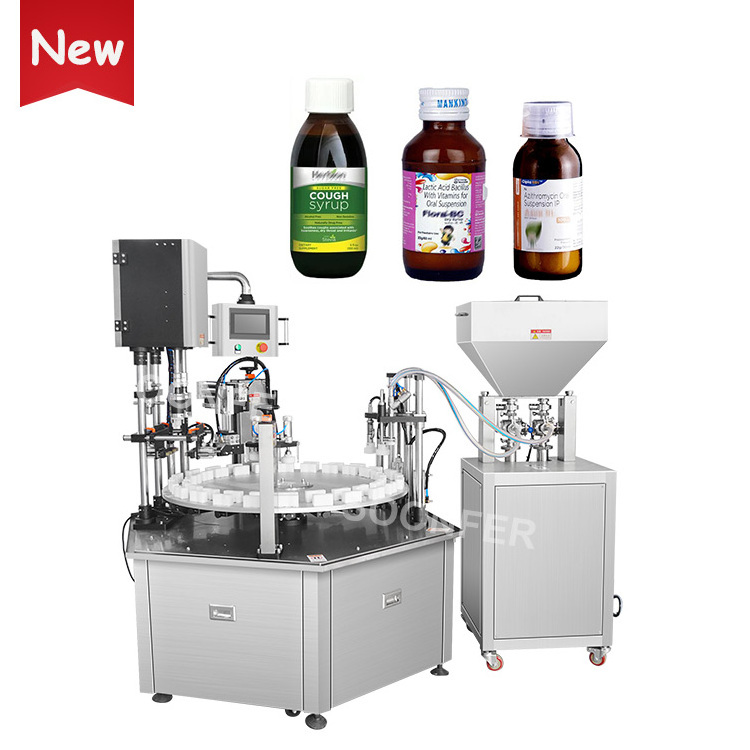

Automatic bottling machine liquid syrup oral filling machine
Lotion cream filling and capping machine suitable for filling both high viscous and non viscous liquid products, such as emulsion, nourishing cream, shampoo, etc. The machine can help you save time and reduce labor tensity. Widely used in cosmetics, seasonings, washing and care products and other industries.
Main Features
1. The machine is controlled by intelligent PLC, and the machine parameters are set through the touch screen, which is easy to understand.
2. It has the function of fault shutdown protection to protect the machine and personal safety.
3. The whole machine is made of SUS304 stainless steel, which fully complies with GMP requirements.
4. The cap screwing device is controlled by a servo motor, and the torque tightness of the screw cap can be adjusted through the touch screen.
5. The contact material of the fixture is made of soft silicone, which will not scratch the product.
6. The intelligent photoelectric sensor detects the bottle, if there is no bottle, it will not be filled or capped.
7. The metering mechanism adopts advanced in-cylinder grinding technology, combined with the exclusive three-way valve control technology, the equipment can be filled smoothly and the metering accuracy is high.
|
Filling range
|
20-500ml
|
|
Bottle diameter range
|
35mm-75mm (customizable)
|
|
Production capacity
|
20-30 bottles/min (depending on the filling volume of the product)
|
|
Hopper capacity
|
50L
|
|
Filling accuracy
|
±1%g
|
|
Power
|
220V 50/60Hz
|
|
Voltage
|
4KW
|
|
Outline dimension
|
1400(L)*1600(W)*2000(W)mm
|
|
Machine weight
|
600Kg
|
|
Working pressure
|
0.6-0.8MPA
|
|
Gas consumption
|
6-7 KG/CM²
|
Foshan Soonfer Intelligent Equipment Co., Ltd. is located in the Machinery Industry Base of Foshan City, Guangdong Province, China. Its products sell well in domestic and foreign markets. The company integrates production and research and development, and is committed to providing customers with automated packaging solutions.
FAQ
Q1. How to find a machine suitable for my product?
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
Please tell us your requirement, such as the product weight, the bottle type and size or the expected productivity.
Q2: How can we make sure about the machine quality after placing the order?
Before delivery, we will send you some pictures and videos to you for confirmation, and also you could arrange for quality
checking by yourself or third party inspection organization.
Q3: What is your after sales services?
We offer you high quality machines with 1 year warranty and supply life-long technical support. And normal machine is properly adjusted before dispatch. The machine could be use immediately after simple installation. Free training advices and technical support will be sent to you via manual instruction or videos.
Q4: We are afraid you won't send us the machine after payment?
Please note that we have 14 years experience in this industry and have offical bussines license and certificates. At the same time, we could place the order through Alibaba Trade Assurance which could gurantee your interest.
