Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GY
-
Dimension(L*W*H):
-
800*640*430mm
-
Weight (KG):
-
55 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Laser power:
-
40w 50w 60w
-
Product name:
-
co2 laser engraving machine price
-
Laser tube:
-
CO2 Glass Laser Tube
-
Software:
-
CorelDraw
-
Function:
-
Cutting Engraving Non-metal Materials
-
Name:
-
Laser cutting Engraving Machine
-
Keywords:
-
pencil laser engraving machine
-
Type:
-
Water Cooling CO2 Laser Engraving Machines
Quick Details
-
Engraving Area:
-
400*300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
600mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GY
-
Dimension(L*W*H):
-
800*640*430mm
-
Weight (KG):
-
55 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Laser power:
-
40w 50w 60w
-
Product name:
-
co2 laser engraving machine price
-
Laser tube:
-
CO2 Glass Laser Tube
-
Software:
-
CorelDraw
-
Function:
-
Cutting Engraving Non-metal Materials
-
Name:
-
Laser cutting Engraving Machine
-
Keywords:
-
pencil laser engraving machine
-
Type:
-
Water Cooling CO2 Laser Engraving Machines

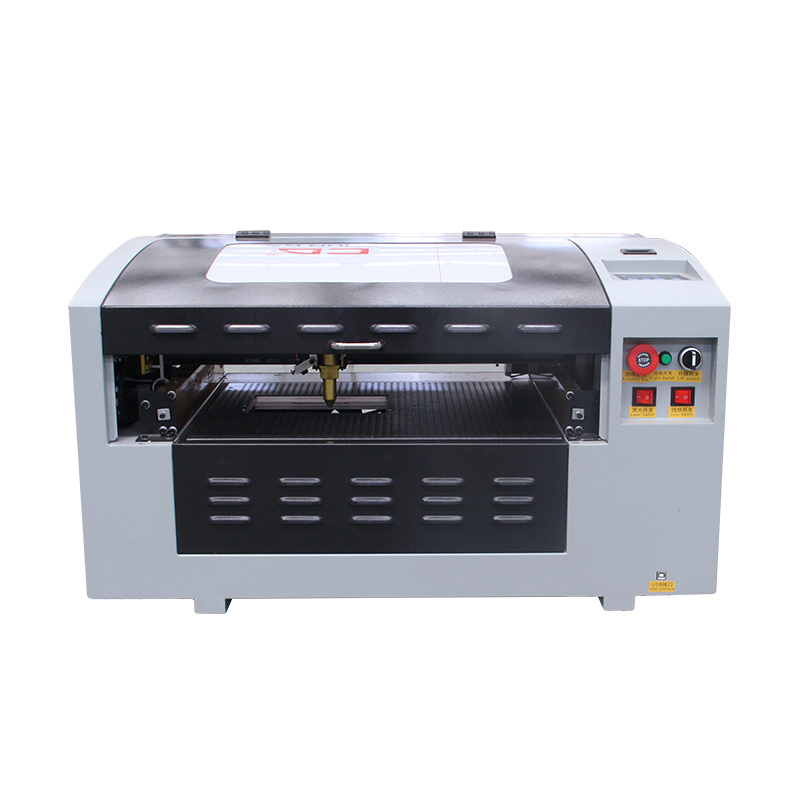

pencil co2 laser engraving machine for sunglass with cheap
1. 400*300 effective working area.(suit for small engraving job)
2. 40W 50W,60w EFR CO2 laser tube.
3. Honeycomb lifting platform.
4. Red dot pointer.
5. Industry grade adjustable laser head.
6. Moshidraw, Newly SEAL, Coreldraw
7. Blowing retardant, mirror protection, emergency stop, digital display
8. Machine color option: red-black, orange-grey as requirement.
9.Lifting platform
|
Supply Voltage |
110/220V±10% ,50/60Hz |
|
Working Area Size |
400mm*300mm |
|
Working table |
Aluminum plate |
|
Up and down size |
300mm(optional) |
|
Power supply |
AC220V/50HZ AC.110V/60HZ |
|
Table control mode |
Manual |
|
Max engraving Speed |
0-4 00mm/s |
|
Locating Precision |
<0.1mm |
|
Color of machine |
Yellow-BLACK |
|
Min shaping character |
Character 2x2mm ,Letter 1x1mm |
|
Resolution |
0.0125mm |
|
Control Configuration |
MINI DSP |
|
Data transfer Interface |
USB2.0 |
|
System Environment |
WINDOWS XP/Win7/8 |
|
Support software |
Core l DRAW/illustrator / photoshop... |
|
Graphic file format |
BMP,PLT,AI,CDR,DXF |
|
Drive mode |
Digital subdivision stepping motor |
|
Slope engraving |
Support |
|
Working enviroment Temp |
5-45 degree |
|
Humidness |
5%-95% (No Condensation) |
|
Control system |
M2 Mainboard |
|
Guide |
Double axis guide rail |
Technical parameters of laser engraving machine
Metal laser head, long service life, engraving and cutting precision is more accurate
Name: Honeycomb work platform working platform
Brand: GuangYue Original: China
High quality work platform for engraving and cutting
Name:laser power
Brand: Mingyu or Hongyuan brand
Name: M2 Mainboard control system, RuiDA control system (optional)
Brand: Guangyue
It can off line operate, have good function.
1. Guarantee for1years exluding comsumable parts .Extra fee is paid if out of date. Any damage to the machine
caused by improper use will be charged.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4.Machine has been adjusted before delivery , operation disk was included. If there is also any
questions, pls kindly tell me
5.12months quality guaranty, the machine with main parts(excluding the consumables)shall be
changed free
of charge when if there is any problem during the warranty period.
6. 24 hours on line service each day, free technical support.
Packing List
1. Water pump
2. Document bag
3. Air exhaust tube
4. USB Connect cable
5. USB Dongle
6. Key
7. CD with software
8. Power cable, UK/ EU/ US/ AU plug for selection.
9.Machine
10.Air pump
11.Fixing girdle
12.Double-sided adhesive
13.Honeycomb platform
Application Materials: Wood, bamboo, jade, marble, organic glass, crystal, plastic,garments,
paper, leather, rubber, ceramic, glass Acrylic, ABS Plastic, Carbon Composite, Cardboard, Cork, Mylar,
Plastic and other nonmetal materials.
