Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
as table size
-
Weight (KG):
-
4000
-
Power (kW):
-
4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Universal CNC Cylindrical Grinder:
-
Universal CNC Cylindrical Grinder
-
Max. Grinding Length:
-
as model
-
Max. Grinding Diameter:
-
as work table
-
Weight:
-
as model
-
Power:
-
4KW
-
Certification:
-
CE ISO
Quick Details
-
Wheel Size(mm):
-
400x50x127
-
Place of Origin:
-
China
-
Brand Name:
-
TIMAC TIMEWAY
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
as table size
-
Weight (KG):
-
4000
-
Power (kW):
-
4
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Universal CNC Cylindrical Grinder:
-
Universal CNC Cylindrical Grinder
-
Max. Grinding Length:
-
as model
-
Max. Grinding Diameter:
-
as work table
-
Weight:
-
as model
-
Power:
-
4KW
-
Certification:
-
CE ISO
Product Description

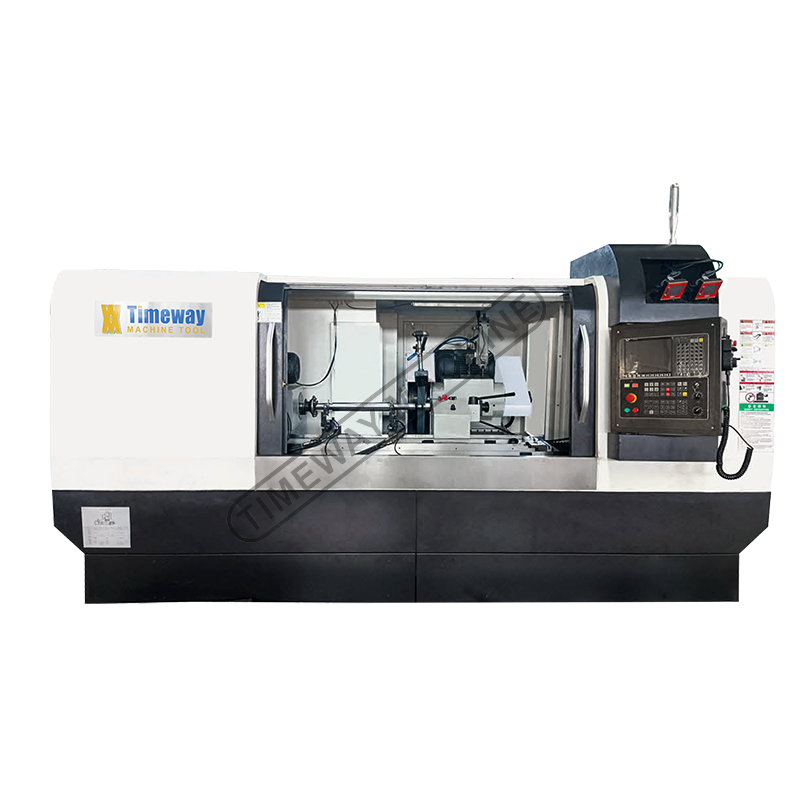

CNC Cylindrical Grinder
Specification
|
C Series
|
|
Unit
|
C-600CNC
|
C-1000CNC
|
|
|
Capability
|
Distance between center
|
mm
|
600
|
1000
|
|
|
|
Height center
|
mm
|
140
|
140
|
|
|
|
Max. grinding diameter
|
mm
|
275
|
275
|
|
|
|
Max. weight of workpiece
|
kg
|
100
|
100
|
|
|
Wheel head
|
Wheel size
|
mm
|
400x50x127
|
400x50x127
|
|
|
|
Peripheral speed
|
m/s
|
45
|
45
|
|
|
|
Power of main motor
|
kw
|
4
|
4
|
|
|
Work head
|
Rotation speed
|
rpm
|
10-1000
|
10-1000
|
|
|
|
Center taper
|
MT
|
4
|
4
|
|
|
Tailstock
|
Center taper
|
MT
|
4
|
4
|
|
|
|
Quill travel
|
mm
|
40
|
40
|
|
|
Weight/Dimensions
|
Machine weight
|
kg
|
4000
|
4500
|
|
|
|
Dimensions
|
m
|
3x2.7x1.8
|
3.9x2.7x1.8
|
|
|
|
Package dimensions
|
m
|
3.7x2.2x2.3
|
3.9x2.2x2.3
|
|
|
RS Series
|
|
Unit
|
RS-1000CNC
|
RS-1500CNC
|
RS-2000CNC
|
|
|
Capability
|
Distance between center
|
mm
|
1000
|
1500
|
2000
|
|
|
|
Height center
|
mm
|
180
|
180
|
180
|
|
|
|
Max. grinding diameter
|
mm
|
350
|
350
|
350
|
|
|
|
Max. weight of workpiece
|
kg
|
150
|
200
|
300
|
|
|
Wheel head
|
Wheel size
|
mm
|
500x50x127
|
500x50x127
|
500x50x127
|
|
|
|
Peripheral speed
|
m/s
|
45
|
45
|
45
|
|
|
|
Power of main motor
|
kw
|
7.5
|
7.5
|
7.5
|
|
|
Work head
|
Rotation speed
|
rpm
|
10-180
|
10-180
|
10-180
|
|
|
|
Center taper
|
MT
|
5
|
5
|
5
|
|
|
Tailstock
|
Center taper
|
MT
|
4
|
4
|
4
|
|
|
|
Quill travel
|
mm
|
40
|
40
|
40
|
|
|
Weight/Dimensions
|
Machine weight
|
kg
|
4700
|
5200
|
5700
|
|
|
|
Dimensions
|
m
|
4.2x2.95x2.05
|
5.3x2.95x2.05
|
6.4x2.95x2.05
|
|
Working Accuracy:
|
Roundness
|
|
mm
|
0.0025
|
|
|
|||
|
Uniformity of dia. In longitudinal section
|
|
mm
|
0.005
|
|
|
|||
|
Uniformity of dia.
|
|
mm
|
Fixed feed grinding 0.02
|
|
|
|||
|
Surface roughness
|
|
μm
|
Ra 0.32
|
|
|
|||
Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
