Quick Details
-
Model Number:
-
LS237
-
Material:
-
Plastic
-
Item Weight:
-
79g
-
Accuracy:
-
±(3% reading+2μm), ≤±(3% reading+2μm)
-
Product name:
-
LS237 portable coating thickness gauge
-
Measuring principle:
-
Fe:Hall Effect / Ale: Eddy current
-
Measuring range:
-
0.0-3500μm
-
Resolution:
-
0.1μm: (0μm-99.9μm)1μm: (100μm-3500μm)
-
Paint Thickness Gauge Unit:
-
μm / mil
-
Language:
-
English, Russian, Turkish, Ukrainian, Chinese
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / Al:0.05mm
-
Power supply:
-
Rechargeable lithium battery 3.7V@1200mAh
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS237
-
Material:
-
Plastic
-
Item Weight:
-
79g
-
Accuracy:
-
±(3% reading+2μm), ≤±(3% reading+2μm)
-
Product name:
-
LS237 portable coating thickness gauge
-
Measuring principle:
-
Fe:Hall Effect / Ale: Eddy current
-
Measuring range:
-
0.0-3500μm
-
Resolution:
-
0.1μm: (0μm-99.9μm)1μm: (100μm-3500μm)
-
Paint Thickness Gauge Unit:
-
μm / mil
-
Language:
-
English, Russian, Turkish, Ukrainian, Chinese
-
Minimum curvature:
-
Convex:5mm / Concave:25mm
-
Minimum substrate thickness:
-
Fe:0.2mm / Al:0.05mm
-
Power supply:
-
Rechargeable lithium battery 3.7V@1200mAh
Related Products
Product Description

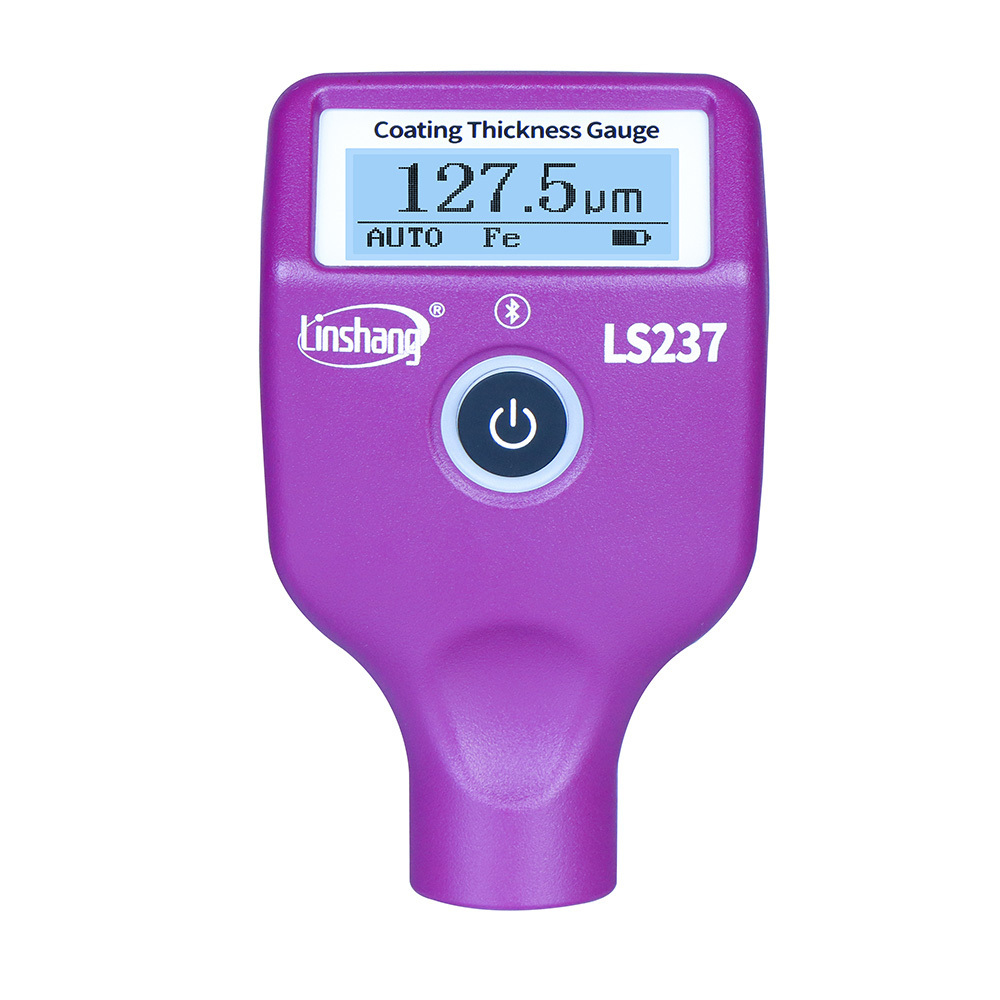

LS237 High Precision Car Paint Checker Detector Film Thickness Tester Car Paint Tester Galvanized Coating Thickness Gauge
Description：
LS237
coating thickness gauge
is specialized in automotive paint thickness inspection. The
car paint tester
can not only measure the paint thickness above ferrous and aluminum materials, identify non-metallic, but also intelligently identify ferrous putty and iron galvanized. LS237
car paint checker
adopts three-color backlight and three-color indicator display, and according to different paint thicknesses the screen and buttons display different colors of light. LS237
car paint detector
also adopts rechargeable lithium batteries to supply, with ultra-low power consumption. The
paint film thickness tester
also has Bluetooth function, equipped with APP, support inspection report export and sharing.
Features：
1. Depending on the paint thickness, screen backlight and button indicator display different colors.
2. Equipped with cell phone APP to generate vehicle inspection report.
3. Powered by rechargeable lithium battery, charging via Type-C port, ultra-low power consumption.
4. The
film coating thickness gauge
has a large measuring range of up to 3500μm.
5. The
high precision thickness coating gauge
can recognize the ferrous putty, and the screen backlight and button indicator light up red.
6. Rapid detection of ferrous, aluminum, iron galvanized and non-metallic vehicle bodywork.
7. Ultra-fast response speed, 0.5s to complete a measurement.
8. The
galvanized coating thickness tester
utilizes the hard-wearing ruby probe to prolong the life of the instrument.
9. The
paint thickness meter
screen can be rotated by short press on the power button, enhancing readability.
Specifications
|
Parameter
|
Value
|
|
Probe tip
|
Ruby
|
|
Measurement principle
|
Fe: Hall effect / Al: Eddy current
|
|
Probe type
|
Integrated
|
|
Measuring range
|
0.0-3500μm
|
|
Resolution
|
0.1μm: (0μm-99.9μm); 1μm: (100μm-3500μm)
|
|
Accuracy
|
≤±(3%H+2μm), H is the standard value
|
|
Unit
|
μm / mil
|
|
Measuring interval
|
0.5 s
|
|
Minimum measuring area
|
Ø = 25mm
|
|
Minimum radius of curvature
|
Convex: 5mm / Concave: 25mm
|
|
Minimum substrate thickness
|
Fe:0.2mm / Al:0.05mm
|
|
Display
|
128×48 dot matrix LCD
|
|
Power supply
|
Rechargeable lithium battery 3.7V@1200mAh
|
|
Range of working temperature
|
-20℃-50℃
|
|
Storage temperature range
|
-20℃-60℃
|
|
Host size
|
101*62*28 mm
|
|
Weight
|
76g
|
|
Data transfer
|
Bluetooth
|
Structure & Packing
|
No.
|
Description
|
Quantity
|
Unit
|
|
1
|
The coating thickness meter
|
1
|
Pcs
|
|
2
|
Fe zero adjustment plate
|
1
|
Pcs
|
|
3
|
Al zero adjustment plate
|
1
|
Pcs
|
|
4
|
Standard film
|
1
|
Pcs
|
|
5
|
User manual
|
1
|
Pcs
|
|
6
|
Certificate/Warranty card
|
1
|
Pcs
|
Equipped with APP to generate inspection report
With Bluetooth function, the
paint thickness gauge
operates online with APP to generate test report and save or share the report.
Three colors backlit and indicator display
Different paint thicknesses are displayed in different colors on the
car paint meter
screen backlight and button indicator.
Intelligent identification of vehicle substrates
LS237
car paint tester coating thickness gauge
in Fe/Al mode for rapid detection of ferrous, aluminum, ferrous galvanized and non-metallic vehicle substrates.
Ultra-large measuring range
The
car paint detector
has a large measuring range, up to 3500μm thick.
Rechargeable lithium battery power supply
Powered by rechargeable lithium battery, rechargeable via Type-C port with ultra-low power consumption
Intelligent identification of ferrous putty
In Fe/Al mode, the
paint film thickness tester
can automatically identify ferrous putty.
Ultra-fast response speed
LS137 high precision thickness coating gauge has u
ltra-fast response speed, 0.5s to complete a measurement.
Ruby probe, hard wearing
The car paint checker
utilizes the hard-wearing ruby probe to prolong the life of the instrument.
Rotatable display allows for easy reading
The
digital car paint tester
screen can be rotated by short press on the power button, enhancing readability.
With qualified calibration reports
LS237
high precision thickness coating gauge
can pass the authoritative metrological institute testing, with qualified calibration reports.
Transaction & Client
Delivery
|
Packing
|
Air Carton / Express Packaging / Shrink Package
|
|
Delivery Terms
|
EXW, DAP, Express Delivery
|
|
Delivery Time
|
5-10 days in stock
|
|
Port
|
Shenzhen
|
FAQ
1. What is the advantage of the Bluetooth?
There is a corresponding mobile APP for the paint thickness gauge and the coating thickness meter can be connected to the mobile APP through Bluetooth. The APP can record data for 17 car positions and each position can store 8 data, such as the door, front cover, left A-pillar, right B-pillar and so on. The recorded data can be generated in the APP and copied to a computer for printing or saved to an album or shared via WeChat and other methods. The recorded multiple sets of test data can be classified for archiving and analysis.
2. Is the test speed of the paint thickness gauge fast? Is it accurate?
The response speed of Linshang paint thickness gauge is very fast. It can produce a data in 0.5s. It is one of the fastest testing car paint meter s on the market. How fast your hand is and how fast the instrument is. Linshang paint thickness gauge can be sent to the Chinese National Metrology Institute for testing and ensure compliance with standards.
3. Does the instrument only need to be zeroed without calibration? Under what circumstances we need to make zero adjustment?
Yes, the paint thickness meter does not need to be calibrated, just zero adjustment.
When the body material of the car under test change
The portable coating thickness gauge has not been used for a long time
When the ambient temperature changed significantly
After the battery is replaced
4. How to judge whether the car has been repainted or not?
At present, the paint thickness of different brands of cars on the market is not exactly the same. Therefore, when measuring the paint film thickness of a certain car, you can first measure the paint thickness on the car roof, because car roof is rarely affected by external forces and scratches, dents or deformation, it is more likely to retain the original paint thickness. To test the specfic position of the car, you can take the upper, lower, left, right, and middle five points to test and calculate the average value of the five data. If the value of one point is greater than the average value of more than 30μm, this position may have been painted.
There is a corresponding mobile APP for the paint thickness gauge and the coating thickness meter can be connected to the mobile APP through Bluetooth. The APP can record data for 17 car positions and each position can store 8 data, such as the door, front cover, left A-pillar, right B-pillar and so on. The recorded data can be generated in the APP and copied to a computer for printing or saved to an album or shared via WeChat and other methods. The recorded multiple sets of test data can be classified for archiving and analysis.
2. Is the test speed of the paint thickness gauge fast? Is it accurate?
The response speed of Linshang paint thickness gauge is very fast. It can produce a data in 0.5s. It is one of the fastest testing car paint meter s on the market. How fast your hand is and how fast the instrument is. Linshang paint thickness gauge can be sent to the Chinese National Metrology Institute for testing and ensure compliance with standards.
3. Does the instrument only need to be zeroed without calibration? Under what circumstances we need to make zero adjustment?
Yes, the paint thickness meter does not need to be calibrated, just zero adjustment.
When the body material of the car under test change
The portable coating thickness gauge has not been used for a long time
When the ambient temperature changed significantly
After the battery is replaced
4. How to judge whether the car has been repainted or not?
At present, the paint thickness of different brands of cars on the market is not exactly the same. Therefore, when measuring the paint film thickness of a certain car, you can first measure the paint thickness on the car roof, because car roof is rarely affected by external forces and scratches, dents or deformation, it is more likely to retain the original paint thickness. To test the specfic position of the car, you can take the upper, lower, left, right, and middle five points to test and calculate the average value of the five data. If the value of one point is greater than the average value of more than 30μm, this position may have been painted.
5.Do you offer OEM and ODM service?
Yes. We can supply OEM and make customized design for any specific application.
6. who are we?
We are based in Guangdong, China, start from 2008, sell to Domestic Market(60.00%), Eastern Europe(6.00%), Eastern Asia(6.00%), South Asia(5.00%), Mid East(4.00%), Southern Europe(3.00%), North America(3.00%), Western Europe(3.00%), South America(2.00%), Northern Europe(2.00%), Central America(2.00%), Southeast Asia(2.00%), Africa(1.00%), Oceania(1.00%). There are total about 51-100
people in our office.
7. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
8.what can you buy from us?
Colorimeter,Gloss meter,Coating thickness meter,window tint meter,UV meter, Leeb hardness tester, Ultrasonic thickness gauge.
9. why should you buy from us not from other suppliers?
Shenzhen Linshang Technology Co., Ltd. (www.linshangtech.com) was established on June 16, 2008. The company adheres to independent design, research and development, production and sales of various measuring instruments.
10. what services can we provide?
Accepted Delivery Terms: EXW,DAP；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Western Union;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean, Italian
11. Does the instrument have a warranty?
Guarantee period is 12 months, after the warranty, we also provide life-long paid or service.
12. Do you offer samples to buy?
Yes, you are welcome to order samples to experience our excellent quality and service.
13. Can you offer quality certification?
Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection Organizations with extra charge, please contact us for confirmation.
14. Do you have after-sales service?
Yes, our instrument have professional After-sales Dept. lf you have any technical problem or question with our goods welcome to contact us.
