Quick Details
-
Keypad Button Material:
-
Polyester, Polycarbonate
-
Cross Reference:
-
1
-
Colour:
-
Pantone, RAL
-
Material:
-
PET, PC, Lexan,Autotex
-
Certification:
-
ISO9001:2008 /ROHS
-
Size:
-
Customized Size Accepted
-
Printing:
-
Screen Printing
-
Membrane switch:
-
OEM Membrane Switch
-
Name:
-
emboss single circuit poly dome membrane switch in graphic overlay
-
Adhesive:
-
3M467/468MP/200MP/9080AMP/55280MP
-
Rear Ahesive:
-
3M200MP
-
Feature:
-
Dustproof
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLEXKYS
-
Model Number:
-
Flexkys
-
Keypad Button Material:
-
Polyester, Polycarbonate
-
Cross Reference:
-
1
-
Colour:
-
Pantone, RAL
-
Material:
-
PET, PC, Lexan,Autotex
-
Certification:
-
ISO9001:2008 /ROHS
-
Size:
-
Customized Size Accepted
-
Printing:
-
Screen Printing
-
Membrane switch:
-
OEM Membrane Switch
-
Name:
-
emboss single circuit poly dome membrane switch in graphic overlay
-
Adhesive:
-
3M467/468MP/200MP/9080AMP/55280MP
-
Rear Ahesive:
-
3M200MP
-
Feature:
-
Dustproof

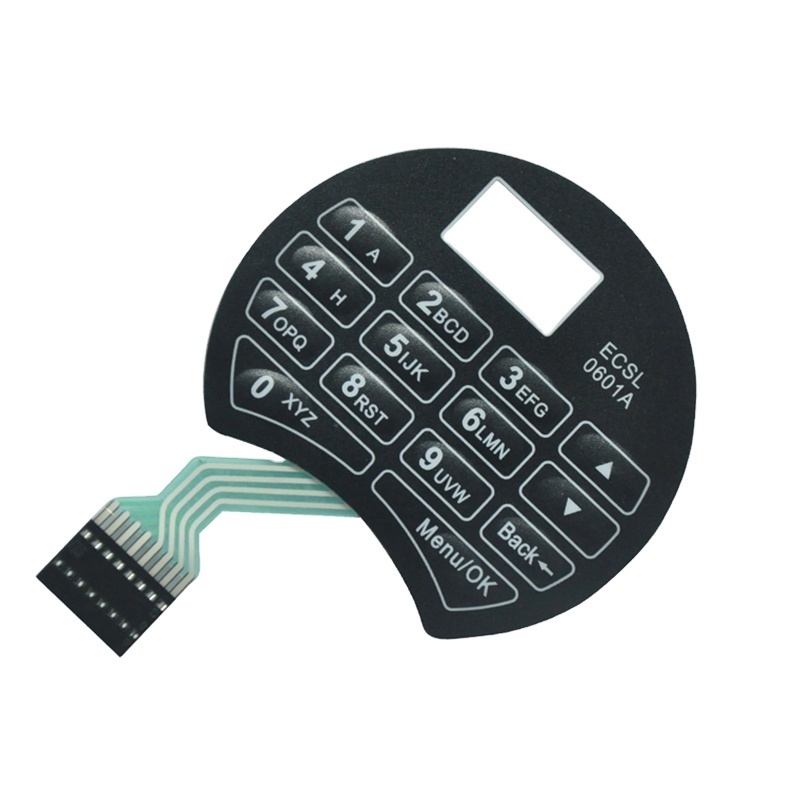

Custom silver flex digital lock safes poly dome membrane keypad switch
| Part | Ordinary Material | ||
| Graphic Overlay | Finish | Specification | |
| PC | Gloss | 0.175/.25/.35/.5 mm thickness | |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
|
Top Adhesive |
PET Double-sided Tape |
0.10/.125mm |
|
| Paper Double-sided Tape | 0.10mm | ||
| Transfer Tape |
0.06/.12mm |
||
| Retainer | PET | Gloss | 0.125mm |
| Spacer | PET Double-sided Tape | 0.225/.275mm | |
| Circuit Layer | PET | Gloss | 0.125mm |
|
Rear Adhesive |
Paper Double-sided Tape | 0.10mm | |
| Transfer Tape | 0.06/.12mm | ||
|
Connector |
Pin | Metal,Male/Female 2.54mm | |
|
House |
Female,2.54mm |
||
|
Conductive Layer |
Silver Paste |
Acheson ELECTRODA 820B | |
| Carbon Paste | Acheson ELECTRODA 423SS | ||
| Insulation Ink | Acheson ELECTRODA 452SS | ||
|
Electrical Performances |
|||
|
Wire Resistance |
0.5mm width,< 1Ω/cm |
Rated Current |
25-100mA, 0-30V DC |
|
Insulation Resistance |
>100MΩ 250V DC |
Working Voltage |
<50V DC |
|
Non-tactile Switch |
0.1-0.4mm |
Tactile Switch |
0.4-1.0mm |
|
Working Life |
> 1 million times |
Working Temperature |
-40℃-70℃ |
|
Working Humidity |
40℃,98%RH No Influence |
Substrate Voltage |
1500V DC |
|
Feed backTime |
10ms |
Tail Folding |
R>1,180 |
