Quick Details
-
Max. Loading Capacity:
-
6000kg
-
Weight (KG):
-
450 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
110V220V230V380V400V415V440V500V600V50HZ60HZ
-
Dimension(L*W*H):
-
Customer Request
-
Power (kW):
-
37 kW
-
Product name:
-
horizontal ribbon mixer
-
Noise:
-
70db-85db
-
Mixing time:
-
5 to 300 seconds
-
Function:
-
mixing/heating/cooling/spraying
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
Quick Details
-
Barrel Volume (L):
-
50-10000
-
Max. Loading Volume (L):
-
6000 L
-
Range of Spindle Speed(r.p.m):
-
28 - 42 r.p.m
-
Max. Loading Capacity:
-
6000kg
-
Weight (KG):
-
450 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DZJX
-
Voltage:
-
110V220V230V380V400V415V440V500V600V50HZ60HZ
-
Dimension(L*W*H):
-
Customer Request
-
Power (kW):
-
37 kW
-
Product name:
-
horizontal ribbon mixer
-
Noise:
-
70db-85db
-
Mixing time:
-
5 to 300 seconds
-
Function:
-
mixing/heating/cooling/spraying
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
1.Material
2.Motor
3.Inlet
4.Discharge port
5.Mixing unit
WHY CHOOSE US?
1.It is made up of stainless steel 2.The mix blade is ribbon blade 3.This ribbon mixer can add the heating or cooling jacket, match the complete spray system( if consumer need, we can match for your) 4.Can match the frequency changer( to adjust the ribbon blade rotation speed) 5.Meeting ISO9001,CE and SGS certificate 6.Guarantee:1 year 7.Provide integrated production line services
Application

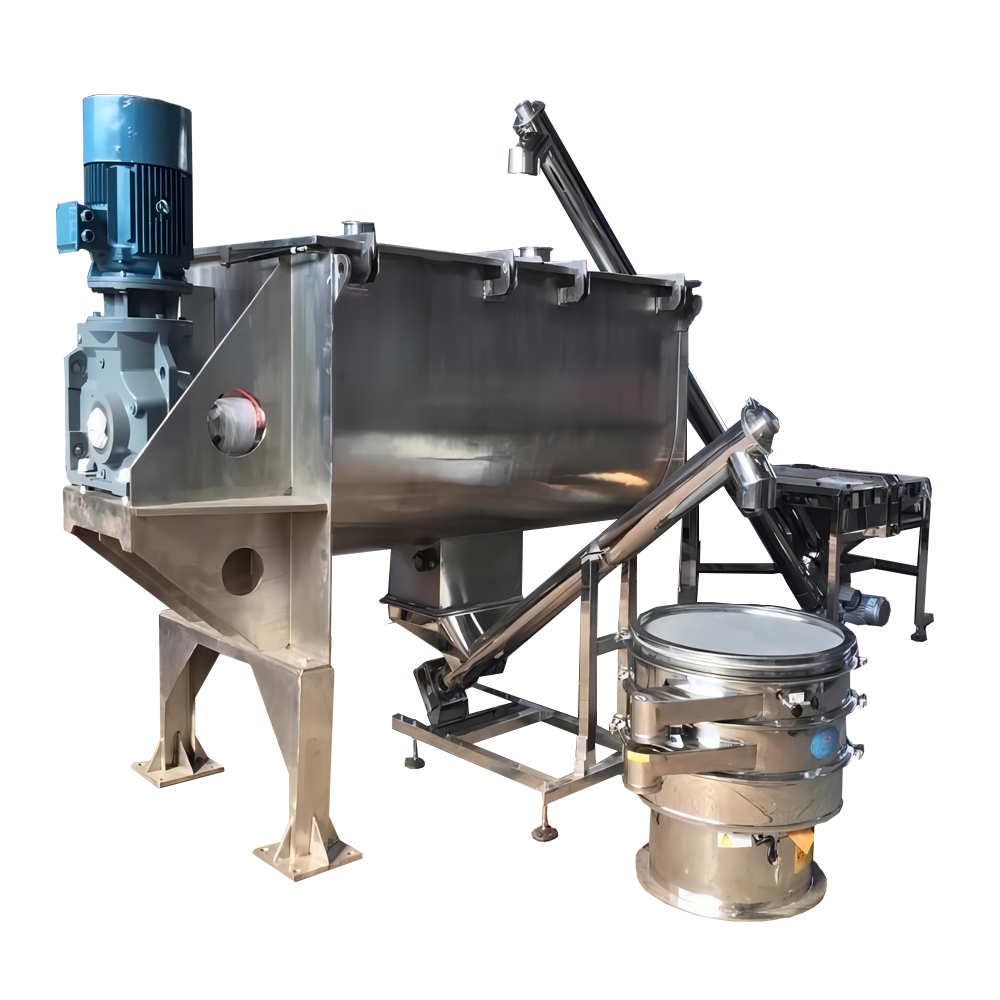

The Horizontal ribbon blender mixer is a new type, high efficiency mixing equipment, are widely used in food and chemical industry
|
Model
|
A mixed(kg)
|
Power(kw)
|
Spindle speed(r/min)
|
Weight(kg)
|
||||
|
200
|
80-100
|
3
|
42
|
450
|
||||
|
500
|
200-250
|
5.5
|
42
|
800
|
||||
|
1000
|
400-500
|
7.5
|
42
|
1200
|
||||
|
1500
|
600-700
|
11
|
32
|
1500
|
||||
|
2000
|
800-1000
|
15
|
32
|
1800
|
||||
|
3000
|
1200-1500
|
18.5
|
32
|
2000
|
||||
|
4000
|
1600-2000
|
22
|
30
|
2500
|
||||
|
6000
|
2400-3000
|
37
|
28
|
3000
|
||||
|
8000
|
3200-4000
|
45
|
28
|
4000
|
||||
|
10000
|
4000-5000
|
55
|
22
|
5000
|
||||
|
|
|
|
|
|||||
Q:What factors I need to get a quotation?
A: Material information, required output. Product material requirements (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.) also require voltage and frequency (Hz) to accurately quote.
Q:What is the real delivery time of your factory?
A: 25 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: What's your before & after service ?
A: 1) Professional advice and rich experience help to choose machine.
2) Longtime maintainance and considerate technical support
3) Technicians can be sent to abroad to install.
4)ONE year guarantee. WHOLE life service. Within1 year, any problem part can send to us, we can give provide free new part(only damaged by machine itself).
5) Any problem before or after delivery, you could find and talk with us anytime. We will free supply technical support.
6) Video / CD of test running and installation, Maunal book, tool box sent with machine if client request.
Q: How could I trust your promise?
A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;
secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;
Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
