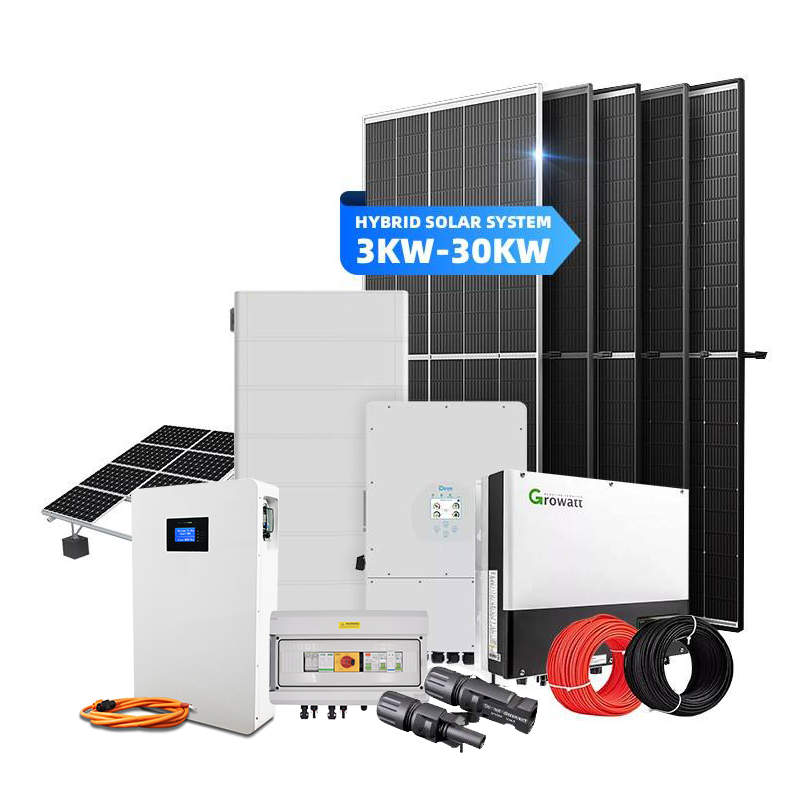

solar system 10kw complete 10KW Complete solar kit On Off Grid Solar Panel system for home solar energy system 10kw

solar system 10kw complete 10KW Complete solar kit On Off Grid Solar Panel system for home solar energy system 10kw

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

≥50 Sets

US $4000

Free Inquiry

Customized Request

Explore More Products

Home Solar Panel Kit System 10kw-30kw Off Grid Solar Power System For Home

$ 2.48 - $ 63.72

High Performance Waterproof Home Balcony Complete System Solar Panel

$ 2.48 - $ 63.72

Off Grid 2KW-5KW Solar Power System Kit For Home

$ 2.48 - $ 63.72

Balcony Power Kit 400w 410w Solar Panels With 600w Inverter Waterproof Solar System For Home Complete Kit

$ 2.48 - $ 63.72

Home Energy Storage Flexible 180w 195w 200w 250w Solar Panels System Kit For Sale

$ 18.13 - $ 25.99

Home Use Commercial Balcony Energy Saving System Buy Flexible Solar Panels Kit For Sale

$ 18.13 - $ 25.99

Solar Charge Controller With Dual Usb Lcd Display

New Design Wholesale 12v 24v Auto Solar Pwm Off Grid Solar Panel Controller

$ 137.11

Solar Power Generator 600w Micro System Solar Panels Kit For Home Balcony

$ 2.48 - $ 63.72

Product Details

{{item.text}}

Quick Details

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: IEC61215/IEC61730/CE/VDE

Warranty:: 25years

Place of Origin:: Anhui, China

Brand Name:: PNG Solar

Model Number:: PNG-10KW HYD

Output Voltage (V):: 380V

Output Frequency:: 50/60Hz

Work Time (h):: 24hours

Specification:: Hybrid Solar System Home

Solar Module:: Tier 1 brand, monocrystalline P/N type

Hybrid Inverter:: Deye brand, single-phase

Battery:: Lithium battery, low voltage, 48V/51.2V

Grid-connected box:: Indoor/ Outdoor

Solar Mounting System:: Anodized Aluminum Alloy and Aluminum Alloy

DC Solar Cable:: PV1-F 1*4mm2/1*6mm2

AC Solar Cable:: ZRC-YJV 2*6mm2 and etc

Quick Details

Application:: Home

Solar Panel Type:: Monocrystalline Silicon

Battery Type:: Lead-Acid, Lithium Ion

Controller Type:: MPPT

Mounting Type:: Roof Mounting

Certificate:: IEC61215/IEC61730/CE/VDE

Warranty:: 25years

Place of Origin:: Anhui, China

Brand Name:: PNG Solar

Model Number:: PNG-10KW HYD

Output Voltage (V):: 380V

Output Frequency:: 50/60Hz

Work Time (h):: 24hours

Specification:: Hybrid Solar System Home

Solar Module:: Tier 1 brand, monocrystalline P/N type

Hybrid Inverter:: Deye brand, single-phase

Battery:: Lithium battery, low voltage, 48V/51.2V

Grid-connected box:: Indoor/ Outdoor

Solar Mounting System:: Anodized Aluminum Alloy and Aluminum Alloy

DC Solar Cable:: PV1-F 1*4mm2/1*6mm2

AC Solar Cable:: ZRC-YJV 2*6mm2 and etc

Our Company

Hefei Pinergy Solar Technology Co.,Ltd was established in 2016, a professional and leading manufacturer of quality solar moduls. PNG SOLAR is l ocated in Hefei City, Anhui Province, which is one of the main production bases of the photovoltaic industry in the world. Jinko, JA, GCL, Sungrow and BYD all sits here .

PNG SOLAR has been certified by Alibaba several years ago. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.

3 production lines with annual capacity 1.2GW helps the customers get the goods in time.

Sophistificated production experience and sales channel is attracting more and more customers from worldwide. In 2022, the company achieve sales vloume with USD 1.2billion .

For residential and commercial solar energy system, PNG SOLAR cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials . Quality is our soul.

Our principles:

Integrity, Win-Win, Innvation !

Product Description

Loads	Model	Quantity	Daily usage time	Daily Consumption
TV	120w	2pcs	4hrs	960wh
Washing Machine	300w	1pc	2hrs	600wh
Computer	100w	1pc	4hrs	400wh
Refrigirator	100w	1pc	24hrs	2400wh
Lamp	30w	10pcs	8hrs	2400wh
Fans	80w	2pcs	4hrs	640wh
Total Consumption					7400wh

Configuration Of 3KW Hybrid Solar Power System ( effective sunlight 4hrs per day)
Item & Model	Description	Quantity
Solar Module	Tier 1 brand, 415w monocrystalline	24pcs
Hybrid Inverter	10KW, pure sine wave , MPPT built-in	1pc
Lithium Battery	48V/51.2V, wall-mounted/stackable	1pc
DC Solar Cable	PV1-F 1*4mm2, red and black	20 meters
Grid-connected box	Breaker, SPD and etc	1pc
AC Solar Cable	ZRC-YJV-2*6mm2 etc	10m
MC4 Connector	DC 1000V, 35A	6pairs
Solar Mounting Bracket	Hot-Dip Galvanized Carbon Steel & Aluminum Alloy rails, including end-clamping and mid-clamping	1 full package
PV Tools	5 Kinds Of Tools For Installation	1set

Note:

1. All components are warrantied.

2. Reliable after sale sevice during warranty period,replace or repair all parts.

3. Product dimensions and physical appearance in this data sheet are nominal.

4. Pinergy Solar reserves the right to make the product changes from time to time.

5. Installation and training service .

Products Details

Solar Panel

* 100% A+ grade Monocrystalline Perc or N type. Tier 1 brand

* 415w/450w/550w/ 580w/etc

* Perfect low-light effect

* Anti-reflective and anti-salt mist corrosion

* PID free

* 12years materials and processing warranty, 25years 80%+ power guarantee

Hybrid Inverter

* Colorful touch LCD, IP65 protection degree
* AC couple to retrofifit existing solar system
* Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
* Max. charging/discharging current of 140A
* 6 time periods for battery charging/ discharging
* Support storing energy from diesel generator

* 5years warranty

Lithium Battery

* 48V /51.2V low voltage, safe

* A grade cells from Gotion high-tech 3.2V 100AH/102AH/104AH or EVE 3.2V 102AH, Top brand manufacturer

* 80% remaining capacity after 6000 cycle times

* Compatible with Deye/Victron/SMA and other famous inverter supplier

* 5years warranty

Mounting Brackets

* Pitched tiled/ flat roof mounting/ ground /c arport mounted structure

* Mid-clmaping and end-clamping and all accessories.

* Hot-dip galvanized carbon steel or aluminum alloy

* Compatible with all sizes of solar modules

* 10years warranty

Grid-connected cabinet

* DC breaker / SPD/ Stainless steel (outdoor) or plastic ( indoor ) box

* Lightening protection, s hort-circuit protection, over-current protection

* Earth-leakage protection and anti-islanding protection

* Customized based on actual needs

* 5years warranty.

PV Cable (DC & AC)

* PV1-F 1*4mm2 & PV1-F1*6mm2

* Tinned copper wire

* AC 0.6/1.0KV DC 1.0KV

* 100m per roll or 200m per roll

* 3years warranty.

Specification of Key Components

1. Specifications of Solar Modules

Model	TWMPD-54HS415
Test Condition	STC	NOCT
Max. Power. ( Pmax/W )	415	314.1
Open Circuit Voltage (Voc/V)	37.53	35.15
Short Circuit Current (Isc/A)	13.95	11.05
Voltage at Max. Power (Vmp/V)	31.03	29.18
Current at Max. Power (Imp/A)	13.38	10.76
Module Efficiency	21.3%
STC：Irradiance 1000W/m², Cell Temperature 25℃, AM1.5 (NOCT): Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

2. Specifications of Hybrid Inverter

-SUN-3.6/5/6K-SG04LP1-EU-SM2

Model	SUN-8K-SG04LP3	SUN-10K-SG04LP3	SUN-12K-SG04LP3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40~60V
Max. Charging Current (A)	190A	210A	240A
Max. Discharging Current (A)	190A	210A	240A
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400W	13000W	15600W
PV Input Voltage (V)	550V (160V~800V)
MPPT Range (V)	200V-650V
Start-up Voltage (V)	160V
PV Input Current (A)	13A+13A	26A+13A	26A+13A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	1+1	2+1	2+1
AC Output Data
Rated AC Output and UPS Power (W)	8000W	10000W	12000W
Max. AC Output Power (W)	8800W	11000W	13200W
Peak Power (off grid)	2 times of rated power, 10 S
AC Output Rated Current (A)	12A	15A	18A
Max. AC Current (A)	18A	23A	27A
Max. Continuous AC Passthrough (A)	50A	50A	50A
Output Frequency and Voltage	50 / 60Hz; 400Vac (three phase)
Grid Type	Three Phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Certififications and Standards
Grid Regulation	IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC/Standard	IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Smart cooling
Noise (dB)	<30 dB
Communication with BMS	RS485; CAN
Weight (kg)	36.8
Size (mm)	422W×658H×281D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years

3. Specifications of Lithium Battery

-Wall mounted Energy Storage Battery

Model	PNG-W5	PNG-W10
Capacity	5.2KWH	10.5KWH
Cell Capacity AH	102AH	204AH
Max. charging/discharging current	100A	100A
BMS	1P16S	1P16S
Net Weight	48KGS	90KGS
Dimension (LWH)	695440155mm	850530140mm
Norminal Voltage	51.2V
Working Voltage	44.8~57.6V
Increasable (Connect in Parallel)	Up to 15packs to connect in parallel
Cycle Times (0.5C 25℃)	6000times
Warranty	5years
Storage Temperature	-20℃~45℃
Operating Temperature	Charging : 0~45℃	Discharging: -20~45℃
Protection Class	IP26
Adaptation	RS232, RS485, CAN (Compatible with most inverters brands in the markets )
