Quick Details
-
Type:
-
Heavy Duty Integrated Flange Clamp
-
Application:
-
Construction machinery
-
Packing:
-
Pallets
-
Price Term:
-
FOB
-
MOQ:
-
500 Piece
-
Color:
-
galvanized
-
Material:
-
Carbon Steel
-
Size:
-
Customized Size
-
Standard or Nonstandard:
-
Standad
Quick Details
-
Standard:
-
ISO, ASME, SAE J518
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Swintool
-
Type:
-
Heavy Duty Integrated Flange Clamp
-
Application:
-
Construction machinery
-
Packing:
-
Pallets
-
Price Term:
-
FOB
-
MOQ:
-
500 Piece
-
Color:
-
galvanized
-
Material:
-
Carbon Steel
-
Size:
-
Customized Size
-
Standard or Nonstandard:
-
Standad
Product Name:
|
SAE Flange Clamp
|
Product Usage:
|
Widely used in industrial fields
|
Sizes :
|
ISO 6162-1:2012. ISO Nominal Size: DN 13; DN 19; DN 25; DN 32; DN 38; DN 51; DN 64; DN 76; DN 89; DN 102; DN 127; Inch
size:1/2"";3/4"";1"";1 1/4"";1 1/2"";2"";2 1/2"";3"". |
Material:
|
Carbon Steel C45, Stainless Steel 304,316 Or 316L
|
Type:
|
SAE WHOLE FLANGE CLAMPS 6000PSI
|
Place of Origin
|
China
|
Province:
|
Zhejiang
|
Brand:
|
Swintool
|

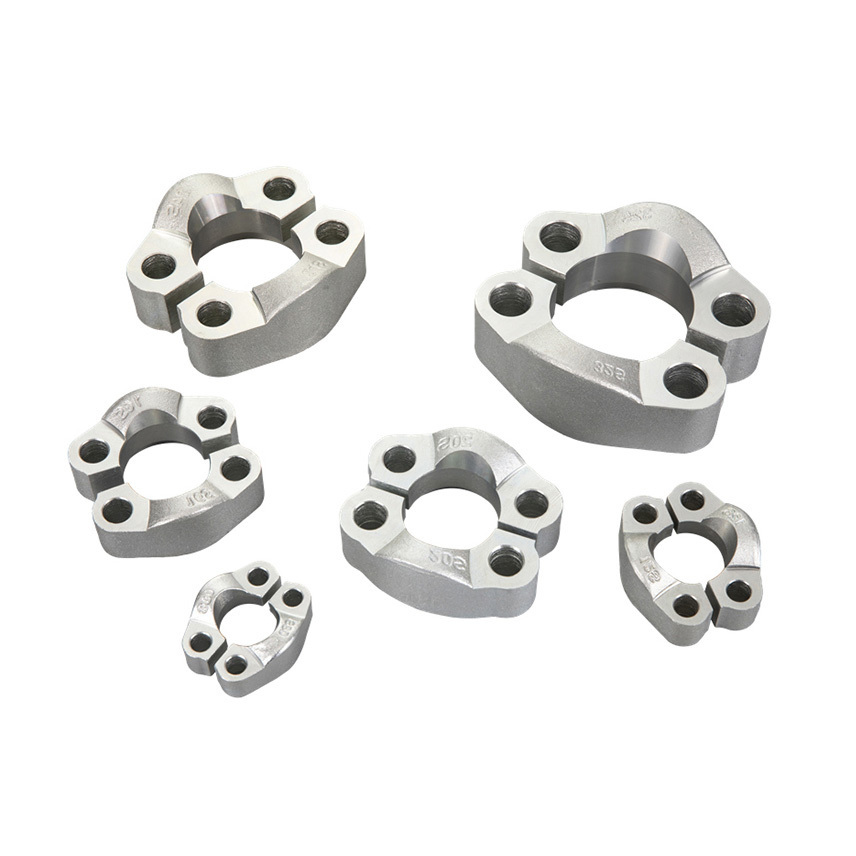

FS-W Heavy-Duty Integrated Flange Clamp
1.Working pressure of SAE code 62 series flange clamps is 42 MPa (420 bar).
2.SAE Flange clamps dimensions is according to ISO 6162-2:2012. ISO Nominal Size: DN 13; DN 19; DN 25; DN 32; DN 38; DN 51; DN 64;
DN 76; DN 89; DN 102; DN 127; Inch size: 1/2";3/4";1";1 1/4";1 1/2";2";2 1/2";3".
3.Material of SAE one-piece flange clamp is made of carbon steel C45, Stainless steel 304, 316 or 316L.
4.The external surface Corrosion protection of all carbon steel flange clamps,shall be protected with an appropriate coating to
pass a minimum 72-h salt spray test in accordance with ISO 9227.
5.Test requirement for pressure/temperature: Flange type connections conforming to this part of ISO 6162 shall be subjected to the
burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature requirements.
6.Designation of one piece flange clamps connections
One-piece flange clamp of size DN 25: Clamp ISO 6162-2, FC×25
Swintool company use FS-16(dash size)W: SAE 6000 psi flange clamps size 1” inch.
Parker company use FUS6x(2,3,4,5,6,8, etc) and FCC (dash size FCCT2 )
Stauff company use BM-60x(1,2,3,4,5,6,7,8,9,10,11)
7.Dimensions of SAE Flange Clamp Code 62
2.SAE Flange clamps dimensions is according to ISO 6162-2:2012. ISO Nominal Size: DN 13; DN 19; DN 25; DN 32; DN 38; DN 51; DN 64;
DN 76; DN 89; DN 102; DN 127; Inch size: 1/2";3/4";1";1 1/4";1 1/2";2";2 1/2";3".
3.Material of SAE one-piece flange clamp is made of carbon steel C45, Stainless steel 304, 316 or 316L.
4.The external surface Corrosion protection of all carbon steel flange clamps,shall be protected with an appropriate coating to
pass a minimum 72-h salt spray test in accordance with ISO 9227.
5.Test requirement for pressure/temperature: Flange type connections conforming to this part of ISO 6162 shall be subjected to the
burst and cyclic endurance tests specified in ISO 19879 to verify that they meet the specified pressure/temperature requirements.
6.Designation of one piece flange clamps connections
One-piece flange clamp of size DN 25: Clamp ISO 6162-2, FC×25
Swintool company use FS-16(dash size)W: SAE 6000 psi flange clamps size 1” inch.
Parker company use FUS6x(2,3,4,5,6,8, etc) and FCC (dash size FCCT2 )
Stauff company use BM-60x(1,2,3,4,5,6,7,8,9,10,11)
7.Dimensions of SAE Flange Clamp Code 62
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-45 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or againt the B/L copy.
If you have another question, pls feel free to contact us.
Q: What about shipping?
A: We ship small batches by air,or larger orders by container. In any event, we get quality product out the door quickly.
Q.I cannot find the products I want on your site. Are you able to help me to locate it?
A.We are not able to put every product we can do on this site. Telling us your requirement, we can send you the right products information and related products.
