Quick Details
-
Weight:
-
220kg
-
Size:
-
1850mm(L)X770mm(W)X1040mm(H)
-
Power:
-
0.36kw
-
Productivity:
-
3-5kg/h
-
Weight (KG):
-
220 kg
-
Product name:
-
Small Sludge Dehydrator
-
Certification:
-
CE Certificate
-
Keywords:
-
Waste Water Treatmnet
-
Color:
-
Customers Demands
-
Model:
-
RDL101
-
Capacity:
-
3-5kg/h
-
Raw material:
-
SS 304
-
MOQ:
-
1 Piece
-
Brand:
-
Ryde Environment
-
Packing:
-
Plywood case
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ryde Environment
-
Material:
-
Plywood case
-
Weight:
-
220kg
-
Size:
-
1850mm(L)X770mm(W)X1040mm(H)
-
Power:
-
0.36kw
-
Productivity:
-
3-5kg/h
-
Weight (KG):
-
220 kg
-
Product name:
-
Small Sludge Dehydrator
-
Certification:
-
CE Certificate
-
Keywords:
-
Waste Water Treatmnet
-
Color:
-
Customers Demands
-
Model:
-
RDL101
-
Capacity:
-
3-5kg/h
-
Raw material:
-
SS 304
-
MOQ:
-
1 Piece
-
Brand:
-
Ryde Environment
-
Packing:
-
Plywood case
Product Description
M

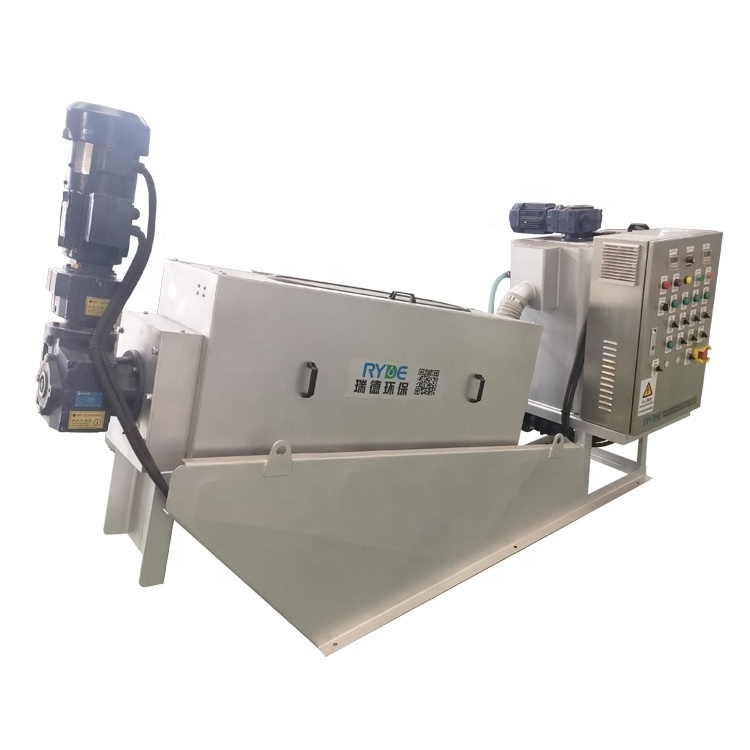

ulti-disc Screw Press Dehydrator
which uses the screw extrusion principle is a new type of solid-liquid separation device. It reaches the goal of extrusion dewatering sludge by powerful extrusion pressure of changing the screw diameter and distance, and the tiny spacing between moveable annular plates and fixed annular plates.
The core component of Multi-disc screw press dehydrator is the screw body, screw body has configuration with screw surrounded by filtering devices which have moving rings and fixed rings combined together and lined up.
As screw rotates, screw filters and dehydrates sludge while it is conveying sludge. Moving ring of the filtering device is moved upward as screw rotates and water was discharged from the gap made between the moving ring and fixed ring, so that sludge is filtered and dehydrated.
The space between the screw and filtering device configured by fixed ring and moving ring becomes narrower as it comes nearer to outlet. Pressure which squeeze sludge become bigger as the sludge moves toward to the outlet, so that the sludge is filtered and dehydrated tightly.
This type of dehydrator doesn’t need cleaning since moving ring in the filtering device is always being moved by the rotating screws and clogging never happen. Therefore, in some wastewater treatment plants, waste sludge pulled out from aeration tank can be dehydrated directly without condensation. Polymer flocculation is used in conditioning before the dehydration.
Product Paramenters
|
Type
|
RDL101
|
Dry Sludge (DS) treating capacity
|
3-5 kg/h
|
|||
|
Solid content
|
10000-50000 mg/L
|
Output sludge moisture content
|
75-85%
|
|||
|
Power supply
|
According to customer's requirement
|
Motor protection level
|
IP55 F
|
|||
|
Net weight
|
220 kg
|
Operating weight
|
320 kg
|
|||
|
Dimension
|
1850 mm (Length) × 770 mm (Width) × 1040 mm (Height)
|
|
|
|||
|
Energy consumption of the whole machine
|
|
|
|
|||
|
Power consumption
|
0.36 kw
|
|
|
|||
|
Water consumption
|
24 L/h
|
Water supply pressure
|
≥0.2 MPa
|
|||
|
Flocculant consumption
|
2-8g-PAM/kg-DS, when the concentration of PAM is 0.1-0.2%
(PAM means Polyacrylamide)
|
|
|
|||
|
Detailed list of pipeline connection
|
|
|
|
|||
|
Pipe port for sludge inlet
|
|
DN50 Flange Connection PN1.0MPa JB/T81-94
|
|
|||
|
Pipe port for filtrate outlet
|
|
DN80 Flange Connection PN1.0MPa JB/T81-94
|
|
|||
|
Pipe port for return flow
|
|
DN80 Flange Connection PN1.0MPa JB/T81-94
|
|
|||
|
Pipe port for sewage outlet of mixing tank
|
|
DN40 Flange Connection PN1.0MPa JB/T81-94
|
|
|||
|
Pipe port for flushing water inlet
|
|
DN20 Internal Thread Connection G3/4"
|
|
|||
|
Pipe port for polymer inlet
|
|
DN20 External Thread Connection G3/4"
|
|
|||
|
Material
|
|
|
|
|||
|
Screw body
|
|
SS304/SS316/SS2205
|
|
|||
|
Mixing tank
|
|
SS304/SS316/SS2205
|
|
|||
|
Electric control panel
|
|
SS304/SS316
|
|
|||
|
Note
|
|
|
|
|||
|
1. The electronic control system can be customized according to customers' requirements.
It can add PLC and communication module.
2. For detailed information and drawings, please contact our engineer.
|
|
|
|
|||
Note: Yangzhou Ryde Environment keeps the rigfht to optimize and change the parameters.
For detailed product information, you can contact us directly.
Working Process and Features
Application & Successful Cases
Besides the above application, the multi-disc screw press dehydrator can be used in other applications, such as:
★ DAF float from slaughter houses and other agricultural processes
