Quick Details
-
Brand Name:
-
other
-
Model Number:
-
WS-C2960+48TC-S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
WS-C2960+48TC-S
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbit/s
-
Brand Name:
-
other
-
Model Number:
-
WS-C2960+48TC-S
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
WS-C2960+48TC-S
-
Warranty:
-
1 Year

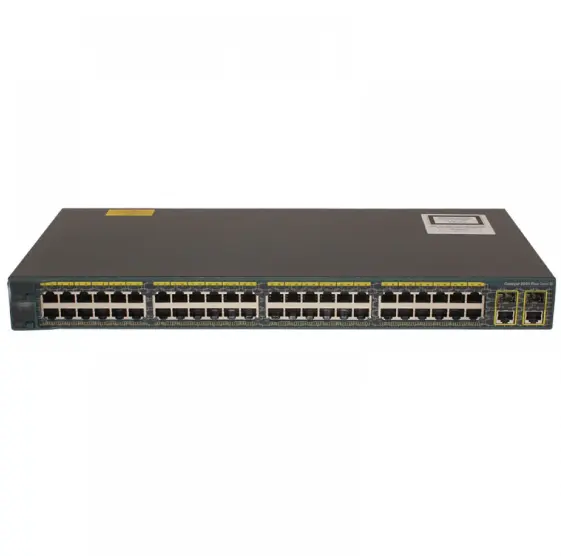

WS-C2960+48TC-S 48 10/100+2 T/SFP LAN Lite Layer 2 100M Managed VLAN Switch
Overviews
The WS-C2960-48TC-S switch supports voice, video, data and secure access. They also provide escalation management as your company's needs change. This series of switches supports the following features: All-in-one communication system: Integrating data, wireless and voice support together, when you are ready to deploy, only one network can meet all the needs of the company. Intelligent: Prioritize voice traffic or data exchange so that information can be routed according to company needs. Enhanced security features: Protect important information; prevent unauthorized users from accessing the network; maintain uninterrupted operations. Reliability: Leverage standard methods to improve reliability and quickly recover from problems that occur. Additionally, you can add redundant power supplies for further reliability. Easy Configuration: Utilize the Web Assistant to simplify setup, upgrades, and troubleshooting.
Specification
| Main parameters | |
| The product type | Smart Switch |
|---|---|
| Application hierarchy | Second floor |
| Transfer rate | 10/100Mbps |
| Interchange mode | Store-forward |
| Backplane bandwidth | 16Gbps |
| Packet forwarding rate | 10.1Mpps |
| MAC address table | 8K |
| Port parameters | |
| Port structure | Non-modular |
|---|---|
| The number of ports | 48 pcs |
| Port description | Catalyst 2960 Plus 48 x 10/100 + 2 x T/SFP LAN Lite |
| Transfer mode | Full-duplex/half-duplex adaptive |
| Features | |
| Network standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.1AB(LLDP),IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3x,IEEE 802.3,IEEE 802.3u,IEEE 802.3ab |
|---|---|
| VLAN | Backing |
| QOS | Backing |
| Network management | SNMPv1,SNMPv2c,and SNMPv3 |
| Security management | backing |
| Other parameters | |
| Status LED | Per port, system |
|---|---|
| Supply voltage | AC 100-240V |
| Product size | 44×445×236mm |
| Product weight | 3.6kg |
| Environmental standards |
Working temperature: 0-45 °C
Operating humidity: 10%-85% (non-condensing) Storage temperature: -25-70°C Storage humidity: 10%-85% (non-condensing) |
