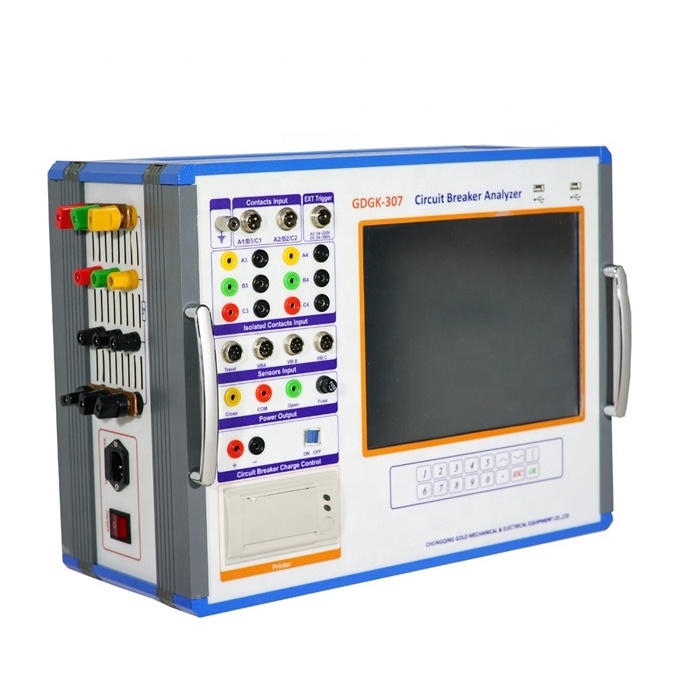

GDGK-307 CB Analyzer Breaker Testing System
-
Application:
-
Digital HV Circuit Breaker Analyzer System
-
Apparatus:
-
IEC62771 Power System Circuit Breaker CB Analyzer
-
Function:
-
Circuit Breaker Mechanical Characteristics Analyzer
-
Device:
-
Circuit Breaker Analyzer for All High Voltage CBS
-
Time measurement:
-
Range: 4000ms Error :< 0.1ms Resolution: 0.01ms
-
Pre-insertion resistance measurement:
-
Range: 50~5000ohm; error :<1%RDG+2D
-
Dynamic resistance measurement:
-
Test current: 25~100A, Measurement error :< 1%RDG+2D
-
Contact resistance measurement:
-
Range:0-10mohm
-
Coil current measurement:
-
Range: 0~20A; resolution: 0.001A; error: <0.01A
-
Vibration measurement:
-
Range: 0~5000G; error: <3%
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GDGK-307 CB Analyzer Breaker Testing System
-
Application:
-
Digital HV Circuit Breaker Analyzer System
-
Apparatus:
-
IEC62771 Power System Circuit Breaker CB Analyzer
-
Function:
-
Circuit Breaker Mechanical Characteristics Analyzer
-
Device:
-
Circuit Breaker Analyzer for All High Voltage CBS
-
Time measurement:
-
Range: 4000ms Error :< 0.1ms Resolution: 0.01ms
-
Pre-insertion resistance measurement:
-
Range: 50~5000ohm; error :<1%RDG+2D
-
Dynamic resistance measurement:
-
Test current: 25~100A, Measurement error :< 1%RDG+2D
-
Contact resistance measurement:
-
Range:0-10mohm
-
Coil current measurement:
-
Range: 0~20A; resolution: 0.001A; error: <0.01A
-
Vibration measurement:
-
Range: 0~5000G; error: <3%
Products Description
Introduction:
* GDGK-307 CB Analyzer Breaker Testing System is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc. The functions of CB Analyzer Breaker Testing System cover all testing items of high voltage circuit breaks.
* Comparing with the traditional circuit breaker tester, this Circuit Breaker Analyzer has the following unique
* GDGK-307 CB Analyzer Breaker Testing System is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc. The functions of CB Analyzer Breaker Testing System cover all testing items of high voltage circuit breaks.
* Comparing with the traditional circuit breaker tester, this Circuit Breaker Analyzer has the following unique
Advantages:
1) The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
2) The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure
or faulty breakers, it can locate the fault position quickly.
3) The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
4) Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
5) Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.
1) The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
2) The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure
or faulty breakers, it can locate the fault position quickly.
3) The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
4) Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
5) Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.
Advantages:
1) The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
2) The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure
or faulty breakers, it can locate the fault position quickly.
3) The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
4) Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
5) Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.
1) The integrated vibration test function of Circuit Breaker Analyzer provides a new means of detection circuit breaker mechanical characteristics for users, compared to traditional time measurement and speed measurement, the vibration fingerprint detection is easier and more efficient.
2) The vibration fingerprint test results contain richer information of circuit breaker operation, for potential risk of failure
or faulty breakers, it can locate the fault position quickly.
3) The vibration tests do not need to change the original line connection, so the users can complete the charged detection of mechanical characteristics of circuit breaker.
4) Arcing contact analysis module allows users to automatically assess the degree of loss of inside Arc suppression contact of circuit breaker without disassembly.
5) Users can use Circuit Breaker Analyzer to complete the contact resistance tests, do not need to buy contact resistance tester separately.
Specifications:
* 12 channels for time measurement
* 3-channel supports both the time contact and resistance contact time
* 6-channel isolated contacts for cascaded unit measurement of pole
* Time measurement
* Range: 4000ms
* Error :< 0.1ms
* Resolution: 0.01ms
* Travel measurement according to sensor:
* Linear resistance sensor:
* Measurement range: 0~250mm; resolution: 0.01mm; error: <0.5mm
* Measurement range: 0~25mm; resolution: 0.01mm; error: <0.05mm
* Angle resistance sensor:
* Measurement range: 0~360°; resolution: 0.01°; error: <0.5°
* Pre-insertion resistance measurement
* Range: 50~5000ohm; error :<1%RDG+2D
* Dynamic resistance measurement
* Test current: 25~100A
* Measurement error :< 1%RDG+2D
* Contact resistance measurement
* Range:0--10mohm
* Error <0.5%RDG+0.05%FS
* Range: 0-2mohm;
* Error: <0.5%RDG+2D
* Speed measurement
* 250mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D
* 25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D
* Angle sensor: 0~20m/s; error: <0.5%RDG+2D
* Acceleration sensor: 0~20m/s; error: <5%RDG+2D
* Coil current measurement range: 0~20A; resolution: 0.001A; error: <0.01A
* Vibration measurement range: 0~5000G; error: <3%
* Internal DC power source: voltage: 12~265V; current:0~20A
* Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection
* Power supply: AC220V±10%; 50Hz±10%
* Working environment: temperature: -10~50°C; Humidity: <80%
* 12 channels for time measurement
* 3-channel supports both the time contact and resistance contact time
* 6-channel isolated contacts for cascaded unit measurement of pole
* Time measurement
* Range: 4000ms
* Error :< 0.1ms
* Resolution: 0.01ms
* Travel measurement according to sensor:
* Linear resistance sensor:
* Measurement range: 0~250mm; resolution: 0.01mm; error: <0.5mm
* Measurement range: 0~25mm; resolution: 0.01mm; error: <0.05mm
* Angle resistance sensor:
* Measurement range: 0~360°; resolution: 0.01°; error: <0.5°
* Pre-insertion resistance measurement
* Range: 50~5000ohm; error :<1%RDG+2D
* Dynamic resistance measurement
* Test current: 25~100A
* Measurement error :< 1%RDG+2D
* Contact resistance measurement
* Range:0--10mohm
* Error <0.5%RDG+0.05%FS
* Range: 0-2mohm;
* Error: <0.5%RDG+2D
* Speed measurement
* 250mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D
* 25mm linear resistance scale: 0~20m/s; error: <0.5%RDG+2D
* Angle sensor: 0~20m/s; error: <0.5%RDG+2D
* Acceleration sensor: 0~20m/s; error: <5%RDG+2D
* Coil current measurement range: 0~20A; resolution: 0.001A; error: <0.01A
* Vibration measurement range: 0~5000G; error: <3%
* Internal DC power source: voltage: 12~265V; current:0~20A
* Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection
* Power supply: AC220V±10%; 50Hz±10%
* Working environment: temperature: -10~50°C; Humidity: <80%
GDGK Series CB Analyzer Breaker Testing System:
|
GDGK-303 CB Analyzer Breaker Testing System
|
|
GDGK-306A CB Analyzer Breaker Testing System
|
|
GDGK-307 CB Analyzer Breaker Testing System
|
