Quick Details
-
Product Name:
-
Titanium dental diac
-
Size:
-
Cusomized
-
Shape:
-
Round
Quick Details
-
Powder Or Not:
-
Not Powder
-
Ti Content (%):
-
>99.8
-
Place of Origin:
-
Shaanxi, China
-
Product Name:
-
Titanium dental diac
-
Size:
-
Cusomized
-
Shape:
-
Round

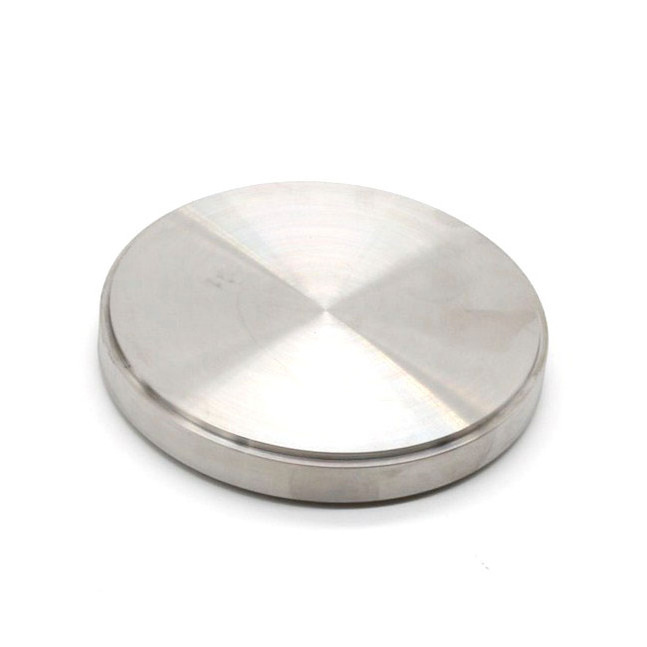

We offer CAD/CAM compatible high purity Titanium discs. Our discs are full compatible with other types of cad/cam milling machine. Such as wieland Zeno,Roland , Origin , VHF ,Yena , Imes-Icore ,etc.
|
Material : |
GR2,GR4, ( pure titanium )GR5 ( Alloy titanium 6al4v ) |
|
Dimension: |
Dia 98mm,98.5MM , thickness from 8 mm to 25mm . |
|
OEM |
Other diameter or shapes are available , Discs with or without edge grooves as required |
|
Density : |
4.51 g/cm3 |
|
Melting temperature : |
1667C |
|
Standard |
Medical standard as ASTM F67,F136 |
|
Specification for discs with edge groove |
Material available ( Medical standard ) |
|
Dia 98mm *12mm Th |
GR2 , GR4 , GR5 |
|
Dia 98mm *14mm Th |
GR2 , GR4 , GR5 |
|
Dia 98mm *16mm Th |
GR2 , GR4 , GR5 |
|
Dia 98mm *18mm Th |
GR2 , GR4 , GR5 |
|
Dia 98mm *20mm Th |
GR2 , GR4 , GR5 |
|
Dia 98mm *22mm Th |
GR2 , GR4 , GR5 |
|
OEM sizes or shapes are available , contact us to tell what do you need ! |
|
-
Titanium’s advantages for using as medical implant :
- Economical
- Excellent biocompatibility
- Can be aesthetically veneered with ceramic
- X-ray translucent
- Low thermal conductivity
- Light weight
- Allows conventional cementation
- Tensile strength 90,000 to 100,000 N/mm²
Quality control is the most important thing for us !
We know we must do good products for good feedbacks . so we build up a Sound QC system to ac complish this . on base of mill tests and supervise during production , we do test s in lab for Chemical contents and Physical properties ,all reports are provide d by authorized third party . Besides, we accept BV ,AV company doing third party inspection upon customers ’ requests . Mill tests include Visual Inspection & Surfaces contamination test , Dimensional test ,DPI test and Ultrasonic test .
Test reports for raw material :
Q:Why choose US?
A:We are a professional manufacturer and have many years production and management experience.
Q:Can you make the product with my design?
A: Yes, we can,we supply customized service.You can send us all the details of what you need,then we will provide detailed quotation.
Q:What's the payment and the delivery time?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.Generally it is 5-7 days if the goods are in stock or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you have after-sales service?
A:Of course,you can contact us at any time. We promise our products are all qualified.If you find any products are not qualified and unsatisfied your require, please contact us at any time.
