Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Made in China
-
Supplier Type:
-
wifi module
-
IO ports:
-
16
-
Size:
-
16mmx21mmx3mm
-
Interface:
-
UART/ GPIO/ ADC/ PWM
-
Frequency:
-
2412 ~ 2484MHz
-
Antenna:
-
Built-in ceramic antenna or IPEX
Quick Details
-
Chipset:
-
ESP8266
-
Application:
-
electronic product
-
Model Number:
-
A0483
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Made in China
-
Supplier Type:
-
wifi module
-
IO ports:
-
16
-
Size:
-
16mmx21mmx3mm
-
Interface:
-
UART/ GPIO/ ADC/ PWM
-
Frequency:
-
2412 ~ 2484MHz
-
Antenna:
-
Built-in ceramic antenna or IPEX

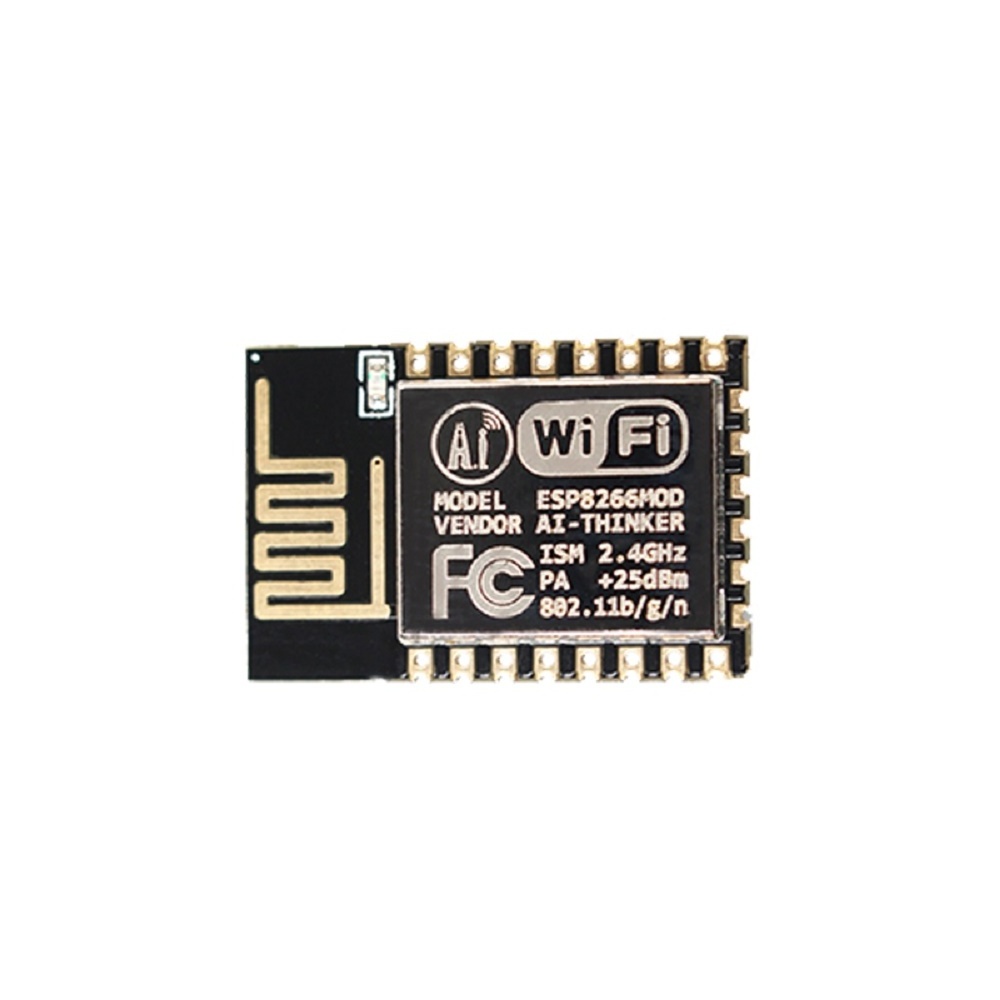

| ESP-12E ESP8266 Wifi Module ESP8266 Serial IOT WIFI wireless module |
·Compatible with ESP-12
·Communication interface voltage: 3.3V
·IO Port Package: Both SMD and Inline package are available, and the pin pitch is 2.0mm.
·Antenna Type: Built-in PCB antenna is available
·Wireless Network Mode: station / soft AP / Soft AP + station
·Wireless criteria: 802.11 b / g / n
·Wi-Fi @ 2.4 GHz, support for WPA / WPA2 security mode
·It is very easy to develop projects with AT command
Applications of ESP8266 12E Wi-Fi Wireless Transceiver Module
·Home automation,
·Sensor networks,
·Industrial wireless control
Product Paramenters
|
Module |
ESP-12E |
Description |
|
Package |
SMD-22 |
/ |
|
Size |
24*16*3mm |
±0.2mm |
|
SPI Flash |
32Mbit |
Default |
|
Communication Interface |
/ |
UART/GPIO/ADC/PWM |
|
GPIO |
9 |
/ |
|
Series Rate |
460800bps |
Support 300~460800bps, 115200bps default |
|
Frequency Band |
2.4Ghz |
2412~2484Mhz |
|
Antenna Type |
Onboard |
PCB antenna, The transmission distance is about 100 meters |
|
Transmitted Power |
/ |
802.11b:16±2dBm;802.11g:16±2dBm;802.11n:16±2dBm |
|
Security |
/ |
WEP/WPA-PSK/WPA2-PSK |
|
Supply Voltage |
3.3V |
3.0V~3.6V,Current>300mA |
|
Operating Temperature |
Industrial grade |
-20℃~+85℃ |
|
AI Support |
Built-in intelligent processing |
Can be read by AT command |
