Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN
-
Model Number:
-

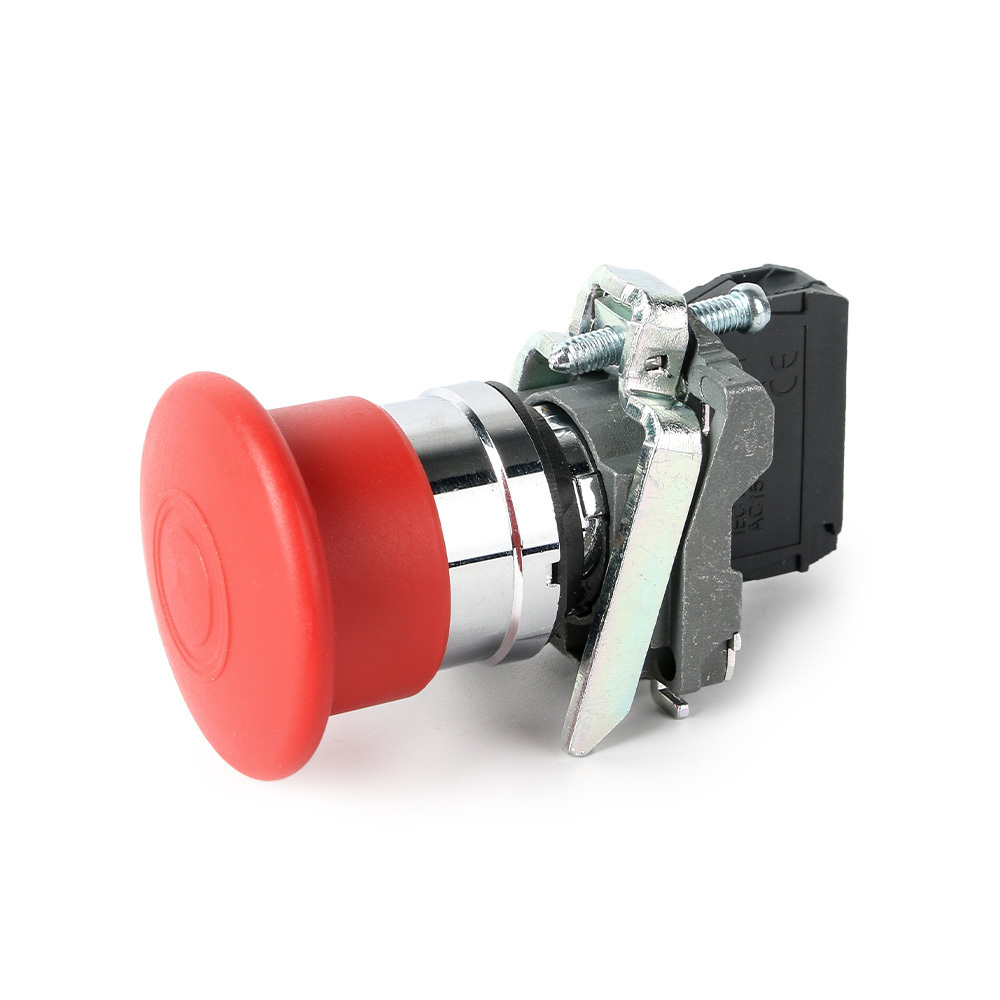

XB4-BT42
-
Type:
-
XB4-BT42
-
Material:
-
plastic Copper silve
-
Certificate:
-
GB14048.5-2017 , CE
-
Ambient temperature:
-
-25℃~55℃
-
Rated voltage:
-
125V 240V 250V 380V
-
Frequency range:
-
AC 50-60HZ
-
Vibration resistance:
-
<500HZ, amplitude is about 1.0mm
-
Shock resistance:
-
>=10g
-
Certification:
-
CCC CE
Quick Details
-
Protection Level:
-
IP40, IP65 is available on request
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NIN
-
Model Number:
-
XB4-BT42
-
Type:
-
XB4-BT42
-
Material:
-
plastic Copper silve
-
Certificate:
-
GB14048.5-2017 , CE
-
Ambient temperature:
-
-25℃~55℃
-
Rated voltage:
-
125V 240V 250V 380V
-
Frequency range:
-
AC 50-60HZ
-
Vibration resistance:
-
<500HZ, amplitude is about 1.0mm
-
Shock resistance:
-
>=10g
-
Certification:
-
CCC CE
Product Deatils
|
Technical Parameters
|
|
|
|
|
|
|||||
|
Nominal insulation voltage
|
380V
|
|
|
|
|
|||||
|
Rated current
|
10A
|
|
|
|
|
|||||
|
Rated operational voltage
|
|
380V
|
250V
|
240V
|
125V
|
|||||
|
Rated operational current
|
AC-15
|
2.5A
|
|
3A
|
|
|||||
|
|
DC-13
|
|
0.27A
|
|
0.55A
|
|||||
|
Operating temp.
|
-25°c- +55°c
|
|
|
|
|
|||||
|
Contact action
|
NO or NC
|
|
|
|
|
|||||
|
Contact resistance
|
≤ 50mΩ
|
|
|
|
|
|||||
|
Short-circuit protection
|
RT16-10A
|
|
|
|
|
|||||
|
LED
|
Green / Red / Yellow / Blue / White
|
|
|
|
|
|||||
|
LED Rated voltage
|
AC/DC 6V
|
AC/DC 12V
|
AC/DC 24V
|
AC 110V / 220V / 380V
|
|
|||||
|
Common description for waterproof push button switch
|
|
|
|
|||
|
Momentary
|
When you push switch and then move your finger, the actuator will back to the original position.
|
|
|
|||
|
Latching
|
When you press the button, it keeps pressed until you press again
|
|
|
|||
|
Contact
|
The contact is a conducting part designed to be united by pressure to another conducting part for the purpose of carrying current
|
|
|
|||
|
N.O.
|
Normally Open circuit
|
|
|
|||
|
N.C.
|
Normally Closed circuit
|
|
|
|||
|
SPST
|
Single Pole Single Throw
|
|
|
|||
|
DPDT
|
Double Pole Double Throw
|
|
|
|||
Product Description
XB4 series are suitable to industrial control circuit with AC 50 Hz or 60Hz,0-380V rated voltage and 0-220V DC operating voltage,
used for the control of magnetic starter, contactor, relay and other electric circuit.
Structure The switch unit slow-break and self-cleaning. It uses modular combustion mode and you can combine from one to eight
switch units optional, so can make the product meet requirement of many special control circuits. It can be connected more safely
and installed firmly.
Technical Specification:
1.Operating temperature:-25C-55C(no freezing)The average value in 24 hrs no more than+35℃
2.Operating humidity:45~85%rh; 45~85%rh(no condensation)
3.Contact resistance: ≤30mΩ
4.Insulation resistance: ≥100M
5.The highest Dielectric streagth:3000VAc50hz
6.Vibration resistance: 50hz,Amplitude1.0mm
7.Shock resistance: >10g
8.Life---Mechanical: Momentary:>2000000 times: alternate, selector>1000000 times: key-lock, emergency>1000000 times
9.Life---Electrical: >500000tmes
10.Terminal: Screw terminal, connecting ability:min:1x0.5mm2 max:1x2. 5mm2 or 2x1.5 mm2(with or without connecting link)
11.Operation: 80gf-2200gf,according to the quantity of switch units Operation travel: About 5. 5mmm (For push button type)
12.Pollution Degree: 3 degree
