Quick Details
-
Model Number:
-
CNG2-406-85L
-
Brand Name:
-
LD
-
Working Pressure:
-
200Bar
-
Hyd. Test Pressure:
-
300Bar
-
Outer Diameter:
-
406mm
-
Wall Thickness:
-
5.7mm
-
Water Capacity:
-
85L
-
Length(without valve):
-
875mm
-
Weight(without valve/cap):
-
66.5Kg
-
Manufacturing Standard:
-
ECE R110 / ISO11439
-
Filling Medium:
-
CNG
Quick Details
-
Material:
-
Composite Material
-
Use:
-
CNG
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
CNG2-406-85L
-
Brand Name:
-
LD
-
Working Pressure:
-
200Bar
-
Hyd. Test Pressure:
-
300Bar
-
Outer Diameter:
-
406mm
-
Wall Thickness:
-
5.7mm
-
Water Capacity:
-
85L
-
Length(without valve):
-
875mm
-
Weight(without valve/cap):
-
66.5Kg
-
Manufacturing Standard:
-
ECE R110 / ISO11439
-
Filling Medium:
-
CNG
Product Description

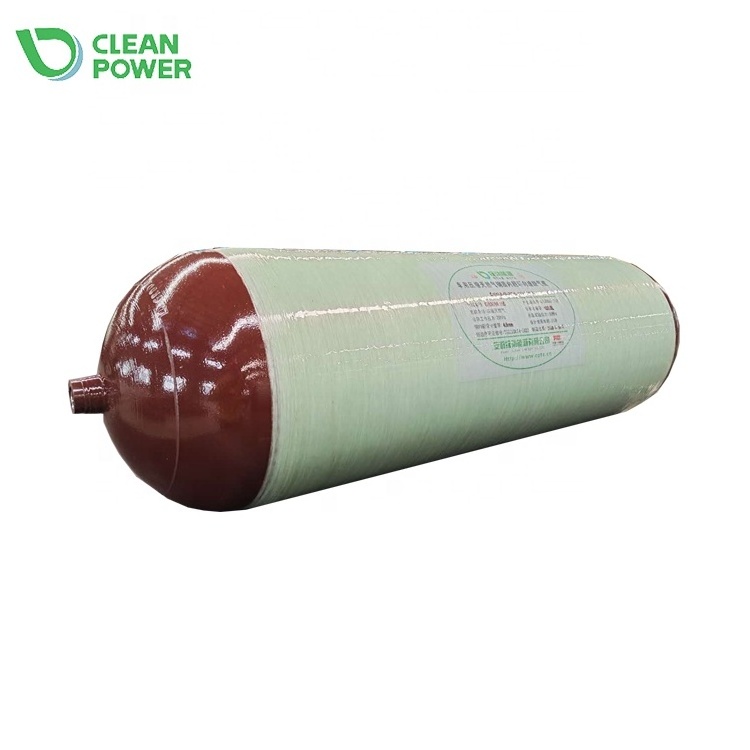

Steel Liner Hoop-wrapped Composite cylinder for vehicles(CNG-2)
|
Executive standard
|
ISO11439，ECE R110，Q/LD0003-2022，GB/T24160
|
|
Hydraulic test pressure, Bar
|
300bar
|
|
Filling medium
|
CNG
|
|
Nominal working pressure, Bar
|
200bar
|
|
Length (mm)
|
710mm～1985mm
|
|
Weight (kg)
|
23KG～147KG
|
|
Material
|
30CrMo+Glass fiber
|
|
Diameter (mm)
|
229/325/356/406mm
|
|
Nominal water volume (L)
|
30L～220L
|
The company was established in 2009 and moved into the Taihu County Economic Development Zone in Anhui Province in 2014, building its own standardized factory covering an area of 46,000 square meters. For more than 10 years, we have focused on R&D and production, with a total global sales volume of 2 million units. The company has 6 cylinder spinning lines, 2 heat treatment and tempering lines, as well as machine processing, painting and winding lines, with an annual production capacity of 360,000 cylinders, and can produce seamless industrial steel cylinders, seamless steel cylinders for CNG vehicles, glass fibre ring-wound cylinders for CNG vehicles, carbon fibre wound cylinders for CNG vehicles, composite wound cylinders for CNG vehicles, seamless steel cylinders for CNG stations, fire-fighting cylinders, LPG Dehejiang cylinders, and LPG cylinders. Fire-fighting cylinders, LPG cylinders, breathing apparatus and other products.
*Q1: Are you manufacturer or trade company?
*A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
*Q2: What is your daily production capacity?
*A2: Our production capacity everyday is 800~1000 units.
*Q3: What is your delivery time?
*A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
*Q4: What certificates do you have?
*A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
*Q5: Do you accept OEM production?
*A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
*Q6: Can you provide samples to us?
*A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
*Q7: Can you customize the products?
*A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
