Quick Details
-
Model Number:
-
H41X-16Q
-
Brand Name:
-
RCV
Quick Details
-
Port Size:
-
DN40-DN600
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
H41X-16Q
-
Brand Name:
-
RCV
Products Description

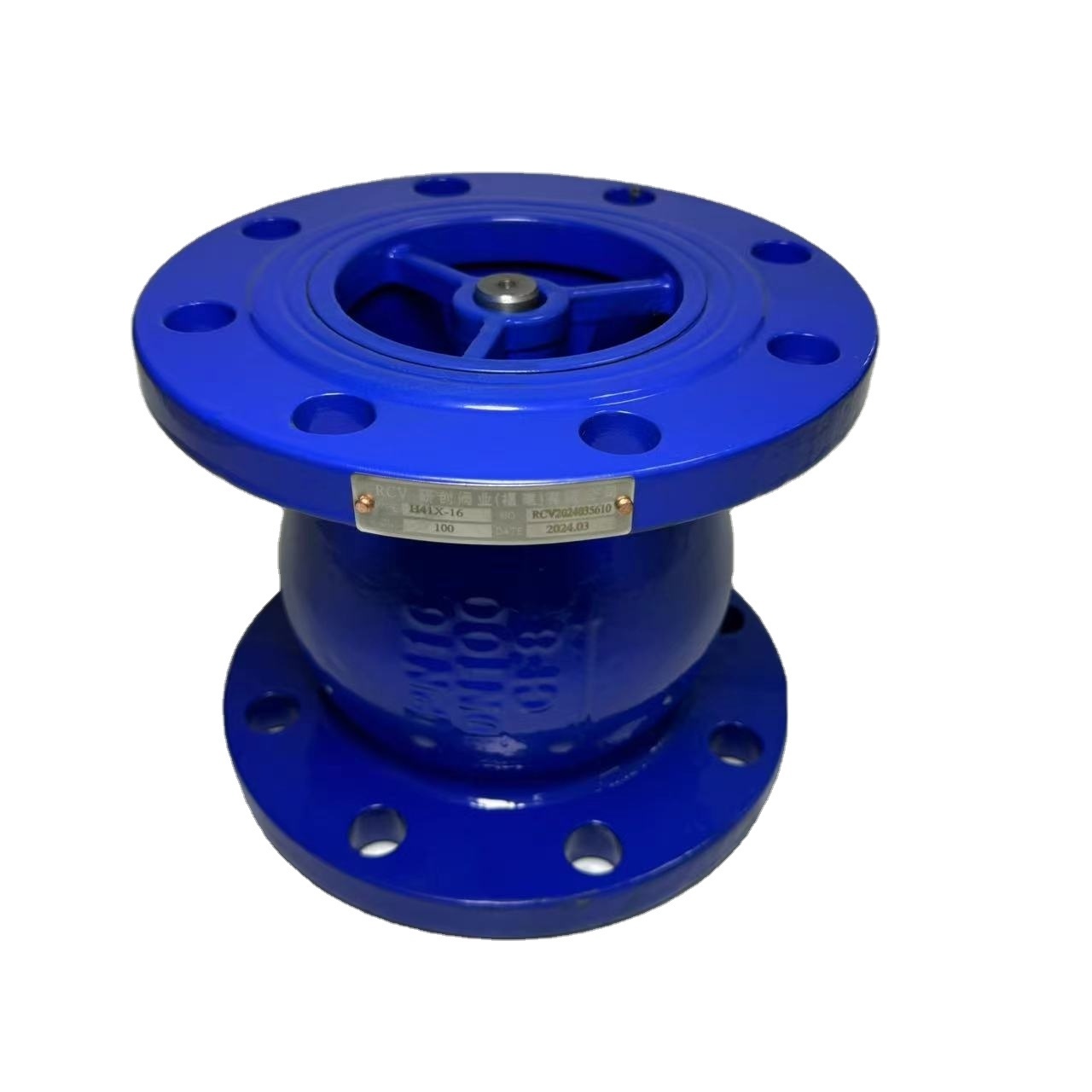

The soundproof check valve is suitable for water supply and drainage pipelines. The valve disc is guided by the central axis at both ends of the inlet and outlet, with flexible opening and closing. It can be installed horizontally or vertically. The valve disc is spring loaded, and its quick closing can effectively eliminate water hammer. The sealing performance is good, and the closing is noise free. It has advantages such as small volume, light weight, low fluid resistance, fatigue resistance, and long service life.
Features
1. The valve disc adopts a "bullet head" shape design, while the valve body adopts a "waist drum" shape design to improve the flow direction of the medium and reduce the flow resistance coefficient
2. The valve adopts a short structure form, although the head loss is slightly larger than the lifting silent check valve, it is small in size and cheap in price
3. Compact structure, equipped with non-metallic lubrication sleeve between the guide shaft and the guide frame, the valve disc can be lifted and lowered flexibly without any locking phenomenon
4. The skeleton type rubber sealing ring is directly embedded on the valve body, avoiding direct erosion of the sealing ring by the medium for a long time, significantly extending its service life, and being sturdy and durable
5. The short opening and closing stroke of the valve disc can effectively prevent water hammer from occurring
6. Suitable for water supply and drainage systems, high-rise building pipe networks, can be installed at the pump outlet with slight structural changes, can be used as a suction bottom valve, but not suitable for sewage pipe networks
Technical parameter
Application Area
