Quick Details
-
Pressure:
-
0.5MPa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
variopress
-
Voltage:
-
customized
-
Weight (KG):
-
9500 KG
-
Power (kW):
-
54.6
-
Dimension(L*W*H):
-
3980x1670x2860
-
Number of Layers:
-
1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
System air pressure:
-
≤0.6Mpa
-
Working way:
-
Double sides
-
Processing dimension:
-
2500x1300mm
-
Opening:
-
300mm
-
No.& diameter of cylinder:
-
6-150mm
-
Heating way:
-
electric heated with thermal oil
-
Installed power:
-
54.6kw
Quick Details
-
Max.Pressure(T):
-
300 T
-
Working Table Size(mm):
-
1300x2500
-
Marketing Type:
-
New Product 2021
-
Pressure:
-
0.5MPa
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
variopress
-
Voltage:
-
customized
-
Weight (KG):
-
9500 KG
-
Power (kW):
-
54.6
-
Dimension(L*W*H):
-
3980x1670x2860
-
Number of Layers:
-
1
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
System air pressure:
-
≤0.6Mpa
-
Working way:
-
Double sides
-
Processing dimension:
-
2500x1300mm
-
Opening:
-
300mm
-
No.& diameter of cylinder:
-
6-150mm
-
Heating way:
-
electric heated with thermal oil
-
Installed power:
-
54.6kw

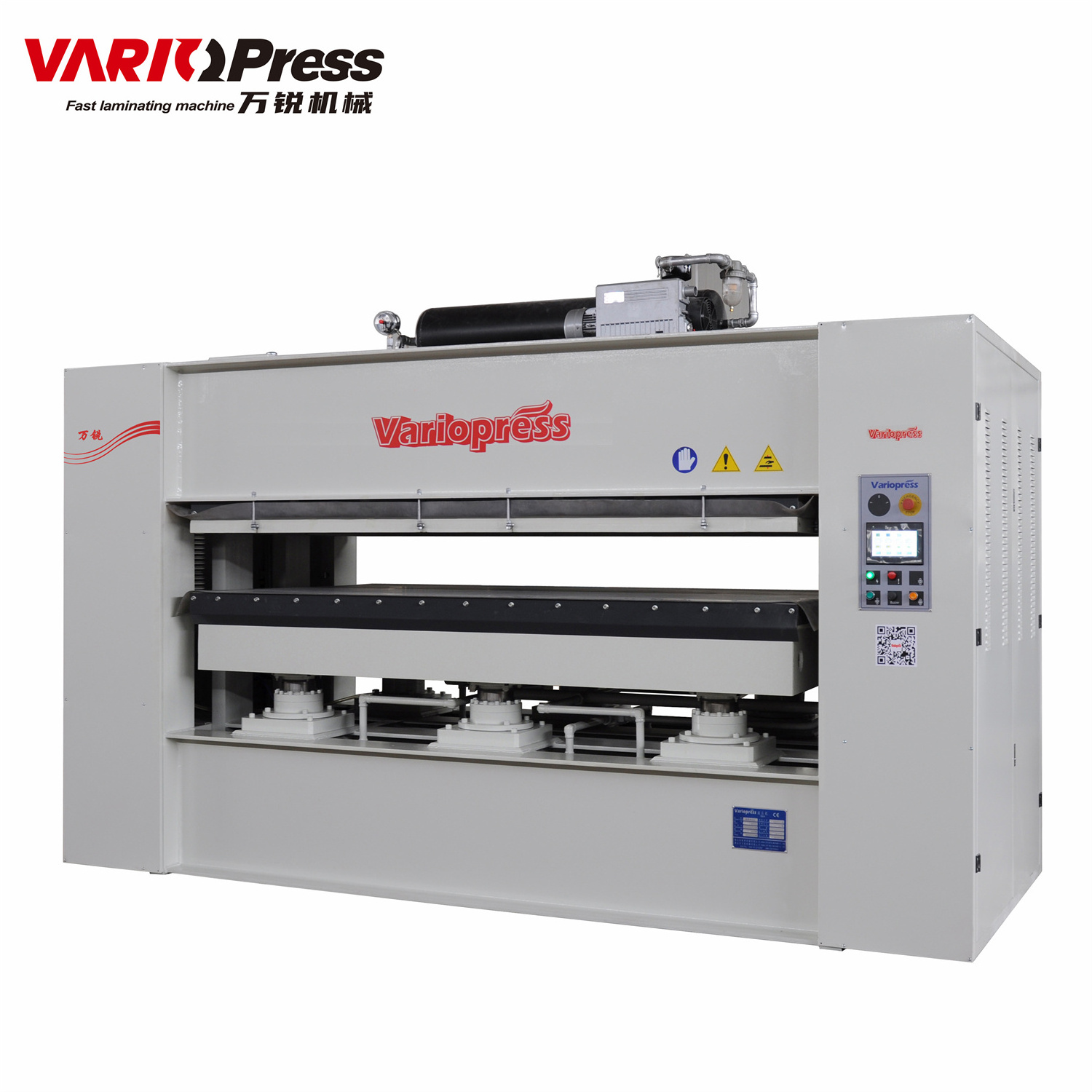

Membrane press feature:
This series of equipment is designed for manufacturing room doors and cupboard plates, which can be used for film the veneer of door core-boards. This can realize many functions( cold and hot pressing machine, filming single side or double sides of solid wood door plates)
1.The equipment frame is welded with quality steel materials. without deformation and high stability.
2.Use International branded Omron PLC touch screen control, easily operation,every parameter can be read through touching screen, leading technology and high automatic level.
3.Select domestic straight-through vacuum pump with Germany technology. High quality and steady usage.
4.The electrical system use international branded products,such as Schneider, Omron .
5.Hydraulic system use Italy Atos, Japan Yuken system.
6.The temperature uniformity of heated surface and the heating efficiency are highly improved by using the heating oil as the heating medium.
| Model | MY995X8/5 |
| Total pressure | 3000kN |
| Working layers | 1 |
| Working inner size | 2500x1300mm |
| Hot platen No.& size | 2-2700x1500x52mm |
| Opening | 300mm |
| Cylinder No. & diameter | 8- φ125mm |
| Platen opening way | automatic,PLC touch screen |
| Heating way | electric heated with thermal oil |
| Pressing film pressure | 0-0.5Mpa |
| Air source pressure | 0.8Mpa |
| Installed power | 54.6kw |
| Closed speed | 17mm/s |
| Overall size |
3980x1670x2860mm |
