Quick Details
-
Product name:
-

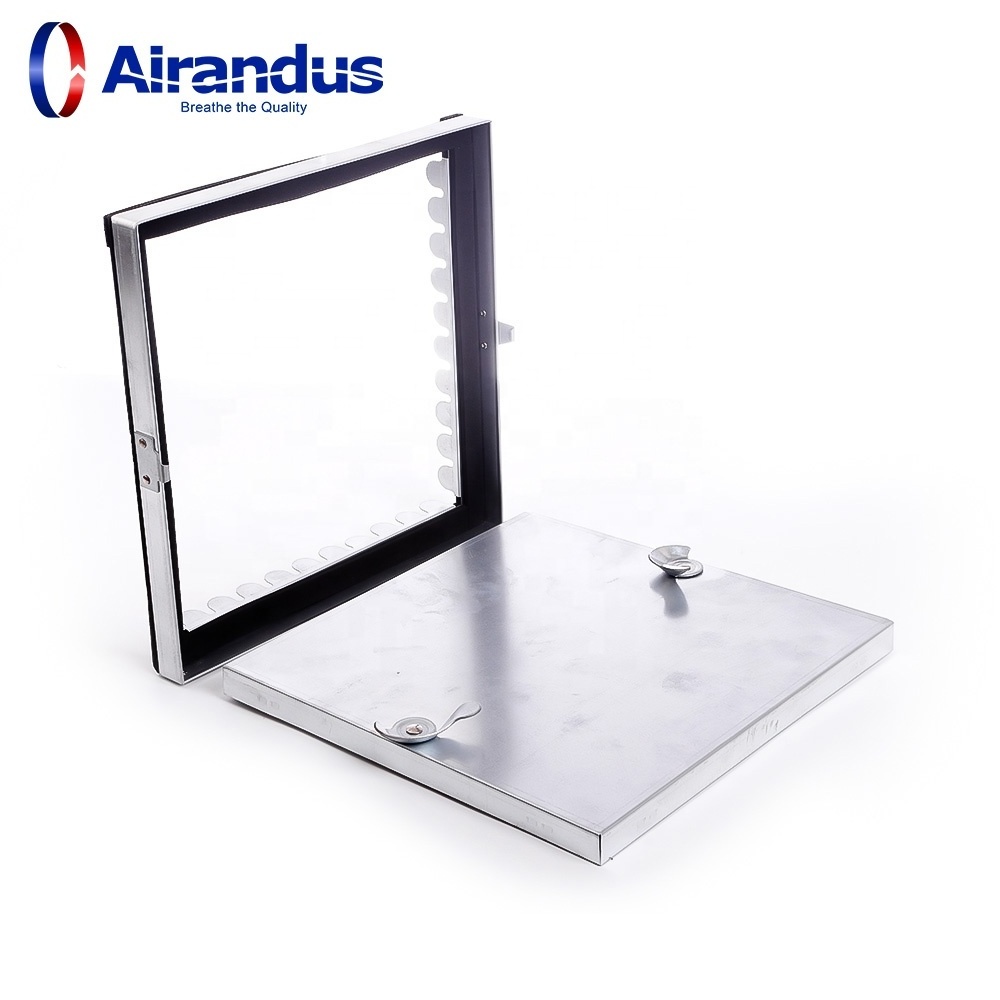

Tabbed Access Door
-
Material:
-
Galvanized Steel
-
Function:
-
Ventilaion
-
Type:
-
Ventilation Equipment
-
Color:
-
Customized Color
-
Size:
-
Standard Size
-
Shape:
-
Oval
-
Installation:
-
Ducts Work
-
Package:
-
Carton
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Airandus
-
Model Number:
-
TAD series
-
Product name:
-
Tabbed Access Door
-
Material:
-
Galvanized Steel
-
Function:
-
Ventilaion
-
Type:
-
Ventilation Equipment
-
Color:
-
Customized Color
-
Size:
-
Standard Size
-
Shape:
-
Oval
-
Installation:
-
Ducts Work
-
Package:
-
Carton
Products Description
TAD-A
Designed to provide access to all in-duct equipment for inspection, maintenance and cleaning.
All doors are of double-skin construction, using 0.8mm galvanized steel enclosing 25mm 60kg/m2 fibreglass insulation.
A flame retardant gasket fixed to the door reduces the risk of air leakage.
A positive seal is achieved by the use of camlock fasteners.
All doors are of double-skin construction, using 0.8mm galvanized steel enclosing 25mm 60kg/m2 fibreglass insulation.
A flame retardant gasket fixed to the door reduces the risk of air leakage.
A positive seal is achieved by the use of camlock fasteners.
|
TAD-A
Size
|
|
|
|
100mm×100mm
|
400mm×400mm
|
|
|
150mm×150mm
|
450mm×300mm
|
|
|
200mm×125mm
|
450mm×450mm
|
|
|
200mm×200mm
|
500mm×500mm
|
|
|
250mm×250mm
|
600mm×300mm
|
|
|
300mm×150mm
|
600mm×400mm
|
|
|
300mm×200mm
|
600mm×450mm
|
|
|
300mm×300mm
|
600mm×600mm
|
|
|
400mm×300mm
|
|
|
TAD-B
Frame thickness: 1.0mm
Curved frame is one piece construction without mitres or welds.
Use concealed piano hinge and cylinder lock.
RAL 9016 as standard, other colors on request.
Curved frame is one piece construction without mitres or welds.
Use concealed piano hinge and cylinder lock.
RAL 9016 as standard, other colors on request.
|
TAD-B
Size
|
|
|
||
|
Specification
|
Neck size
|
Overall size
|
||
|
200mm×200mm
|
195mm×195mm
|
235mm×235mm
|
||
|
......
|
......
|
......
|
||
|
600mm×600mm
|
595mm×595mm
|
635mm×635mm
|
||
TAD-C
Tabbed Access Door
TAD-D
Tabbed Access Door
