Quick Details
-
Material:
-
1, FRP GRP Fiberglass(SMC)
-
Weight:
-
62356102101
-
Size:
-
62356102101
-
Power:
-
10
-
Weight (KG):
-
100 kg
-
Name:
-
1000m3 agriculture frp smc pressurized cubic water tank
-
Color:
-
White
-
Volume:
-
0.125m3 ~1500m3
-
Panel thickness:
-
4mm-20mm
-
OEM:
-
YES
-
Panel size:
-
1000mm*1000mm,1000mm*500mm,500mm*500mm
-
Certificate:
-
ISO9001
-
Technique:
-
Moulding Press
-
Thermal preservation:
-
PU/sponge/rubber insulation
Quick Details
-
Core Components:
-
Panel
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OPCT
-
Material:
-
1, FRP GRP Fiberglass(SMC)
-
Weight:
-
62356102101
-
Size:
-
62356102101
-
Power:
-
10
-
Weight (KG):
-
100 kg
-
Name:
-
1000m3 agriculture frp smc pressurized cubic water tank
-
Color:
-
White
-
Volume:
-
0.125m3 ~1500m3
-
Panel thickness:
-
4mm-20mm
-
OEM:
-
YES
-
Panel size:
-
1000mm*1000mm,1000mm*500mm,500mm*500mm
-
Certificate:
-
ISO9001
-
Technique:
-
Moulding Press
-
Thermal preservation:
-
PU/sponge/rubber insulation

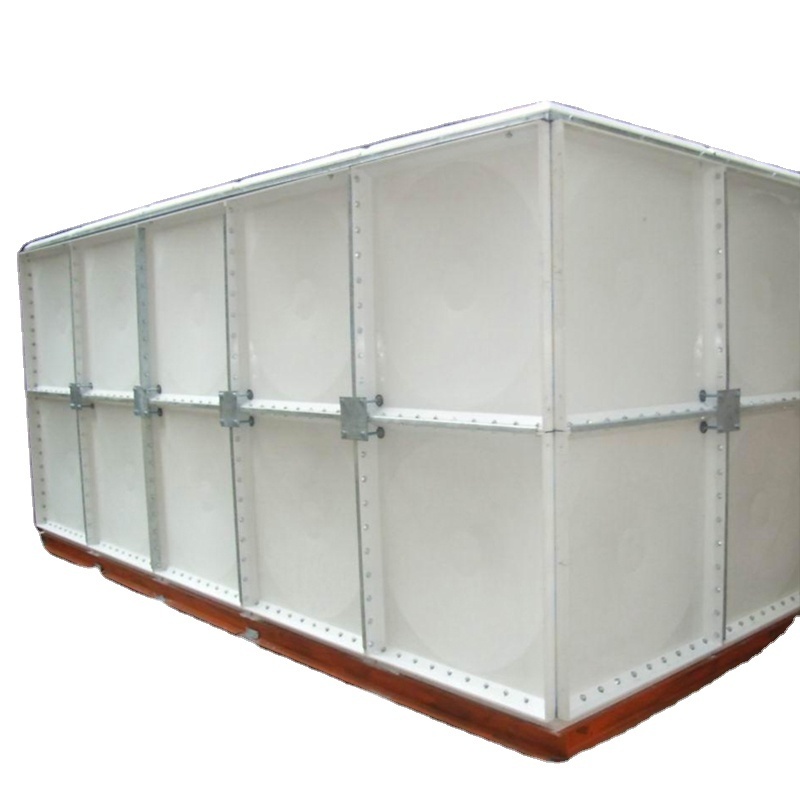

1000m3 agriculture frp smc pressed cubic water tank grp panel water tank
It is composed of SMC mould compressed plate, sealing material, metal structural part, and fittings. It is site installed, which gives great convenience for design and construction. If the original water tank needs to be replaced, it will not need to reform the housing.For normal water tank, design per standard.For special water tank, design especially. We can design the water tanks of 0.125~1500m3.
|
Product name |
Fiberglass SMC water tank / FRP water tank / SMC water tank / GRP water tank |
|
Material composition |
FRP/SMC/GRP |
|
Product Size |
0.5*0.5m, 1*1m, 1*0.5m, etc |
|
Panel Thickness |
5mm,6mm,8mm,10mm,12mm,14mm,16mm, etc |
|
Tank Volume |
0.125-1500m3 |
|
Tank Height |
1-4m(Max) |
|
Eco-Friendly |
Yes |
|
Shipping way |
By sea/air/express |
(1) Strong resistance to corrosion,high strength, good sealing
(2) Excellent waterproof property, with no leakage
(3) Light weight, that is one half of ordinary steel plate water tank
(4) Easy to transport install,and assemble at site
(5) Good shape retention,cost saving
(6) Food grade resin, good water quality, sanitary non-polluted.
(7) Anti-aging with longservice for over 30 years.
| Project | Performance index |
| Tensile strength,Mpa | ≥60 |
| Bending strength,Mpa | ≥100 |
| Bending modulus,Gpa | ≥7.0 |
| Pap hardness | ≥60 |
| Bibulous rate,% | ≥60 |
| Fiberglass content | ≥25 |
| Maximum distortion of side wall | ≤0.5% |
FRP water tank is international newly adopted water tank, which is assembled by qualified integral SMC water tank plates.The SMC combined FRP water tank fabricated by our company is No.1 recommended product by [1999]330 document in State Construction Material Industry Administration and Construction Ministry; can fully meet the technical property requirement of standard JC658.1-2007. it has passed the inspection of relative national ,this tank meet the requirement of GB/T17219-98,Standard for Hygienic Safety Evaluation of Equipment and Protective Materials in Drinking Water.water quality meet the requirement of GB5749-85 ,Standard for Drinking Water.
The water tank has been widely used in mine, enterprise ,residential buildings, hotels, office buildings, R&D buildings, schools, malls, restaurants and other public facilities as well as places with high requirements for water quality, such as hospitals and food processing plants, to serves as the storage equipment for drinking water, fire distinguishing water and others.
