Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine

Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V

Power:: 9KW

Weight:: 200 KG

Dimension(L*W*H):: 1100*900*1350MM

Name:: Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine

Application:: Dairy Products

Final product:: Flavoured Milk Yogurt

Function:: Pasteurizing +Fermentation+cooling

Keywords:: Milk Production Line Plant

Usage:: Dairy Products Equipment

Material:: Stainless Steel 304/316L

Capacity:: 100-500 Liter

Processing:: Mixing + Pasteurizing+Homogenizing

Advantage:: Easy Operation High Efficiency

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Henan, China

Brand Name:: Camels

Voltage:: 380V

Power:: 9KW

Weight:: 200 KG

Dimension(L*W*H):: 1100*900*1350MM

Name:: Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine

Application:: Dairy Products

Final product:: Flavoured Milk Yogurt

Function:: Pasteurizing +Fermentation+cooling

Keywords:: Milk Production Line Plant

Usage:: Dairy Products Equipment

Material:: Stainless Steel 304/316L

Capacity:: 100-500 Liter

Processing:: Mixing + Pasteurizing+Homogenizing

Advantage:: Easy Operation High Efficiency

Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine

Milk pasteurizer is used to sterilize fresh milk equipment. Milk, goat milk, donkey milk, camel milk and other dairy products can be sterilized. Low-temperature pasteurization can kill harmful bacteria, retain beneficial bacteria, and sterilize milk nutrition High value, in line with pasteurized milk regulations.

Mini Milk Yoghurt Processing Line Plant Yogurt Milk Making Machine Specific:

Model	CMPS-100L	CMPS-200L	CMPS-300L	CMPS-500L
Volume	100L	200L	300L	500L
Size	9007501350mm	10208701530mm	114011401700mm	150011501900mm
Diameter	625mm	850mm	1000mm	1000mm
Power	6KW	11KW	20KW	24kw
Voltage	380V/220V	380V	380V	380V
Stirring Speed	30-36r/min	30-36r/min	30-36r/min	30-36r/min
Pasteurizer time	10-30minutes (adjustable)	10-30minutes (adjustable)	10-30minutes (adjustable)	10-30minutes (adjustable)
Pasteurizer temperature	30-99degree (adjustable)	30-99degree (adjustable)	30-99degree (adjustable)	30-99degree (adjustable)
Material	SS304	SS304	SS304	SS304

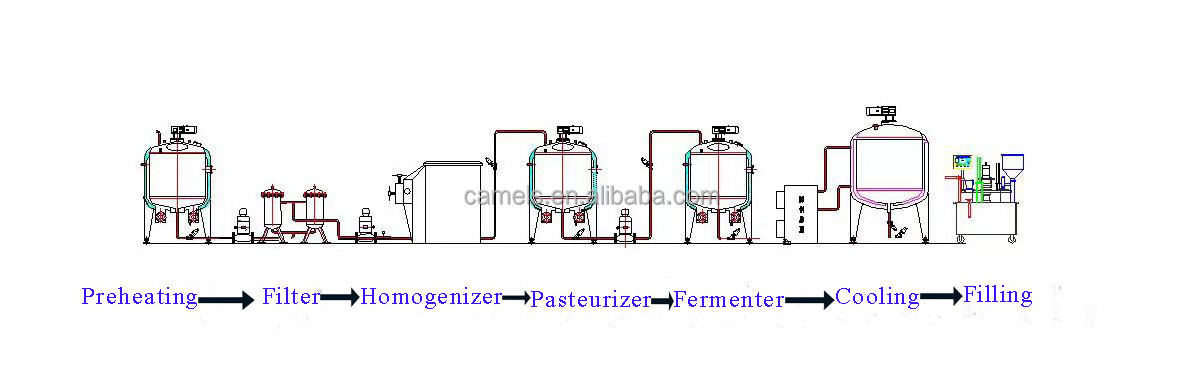

Yogurt/Cheese/Pasteurized Milk Processing Flows::Milk Cold Storage Tank--Preheating---Homogenizer---Pasteurizer---Fermenter---Cheese Machine---Hydraulic Press Machine---Filling

Cold Storage Tank: Material:SUS304 Voltage:380v/50Hz Power:2w Cooling capacity:5000Kcal/h Sheet thickness:inner 2 in 1 outer 1.2mm Installation size:1550*800*1530mm Unit manufacturer:American Copeland Refrigeration medium:R22 Insulation performance:≤1℃/3H Compressor power:2P Motor power/quantity:0.75kw/1 Insulatio material/thickness: polyurethane foam/50mm Material inlet and outlet diameter:Φ32mm/φ38mm .

Preheating Tank: Material: SUS304 Voltage: 380v/50Hz/3Phase, 9KW Heavy plate thickness: Inner 2 in 2 outer 1.2 Installation size: 1020 * 870 * 1530 Mixing motor: 0.55kw Stirring speed: 36r / min Working pressure: 0.09 Mpa Material inlet and outlet diameter: Φ32mm / φ38mm .

Homogenizer: Output: 200L / H Maximum pressure: 25Mpa Motor power: 4kw Dimensions: 990 * 600 * 850mm Machine weight: 600kg .

Pasteurizer Tank: Material: SUS304 Power: 380v/50Hz/3Phase/9kw Heavy plate thickness: Inner 2 in 2 outer 1.2 Installation size: 1020 * 870 * 1530 Mixing motor: 0.55kw Stirring speed: 36r / min Working pressure: 0.09 Mpa Material inlet and outlet diameter: Φ32mm / φ38mm .

Fermenter Tank: Material: SUS304 Power: 380v 50Hz Sheet thickness: 3mm Installation size: 1020 * 870 * 1530mm Material inlet and outlet diameter: Φ32mm / φ38mm .

Cheese Machine: Material: SUS304 Voltage: 380V Heating power: 24kw Mixing power: 1.5kw Mixing speed: variable frequency adjustable Speed range: 0-36R/min Inner Diameter: 1000mm Equipment size:1600*1300*2100mm .
