Quick Details
-
Connector:
-
HDMI
-
Protocol:
-
H.264/H.265
-
Media Transmission Protocol:
-
RTMP/RTSP
-
Audio Encoding:
-
AAC(48K)
-
Video Resolution:
-
1920x1080,1280x720,960x540,848x480,640x360,480x270
-
Supported Internet:
-
3G/4G LTE/Wi-Fi
-
T-Flash Card:
-
128G
-
Battery Capacity:
-
4000mAh
-
Working Duration:
-
4-6 hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mine
-
Model Number:
-
Mine-Q7
-
Connector:
-
HDMI
-
Protocol:
-
H.264/H.265
-
Media Transmission Protocol:
-
RTMP/RTSP
-
Audio Encoding:
-
AAC(48K)
-
Video Resolution:
-
1920x1080,1280x720,960x540,848x480,640x360,480x270
-
Supported Internet:
-
3G/4G LTE/Wi-Fi
-
T-Flash Card:
-
128G
-
Battery Capacity:
-
4000mAh
-
Working Duration:
-
4-6 hours
Product Brief

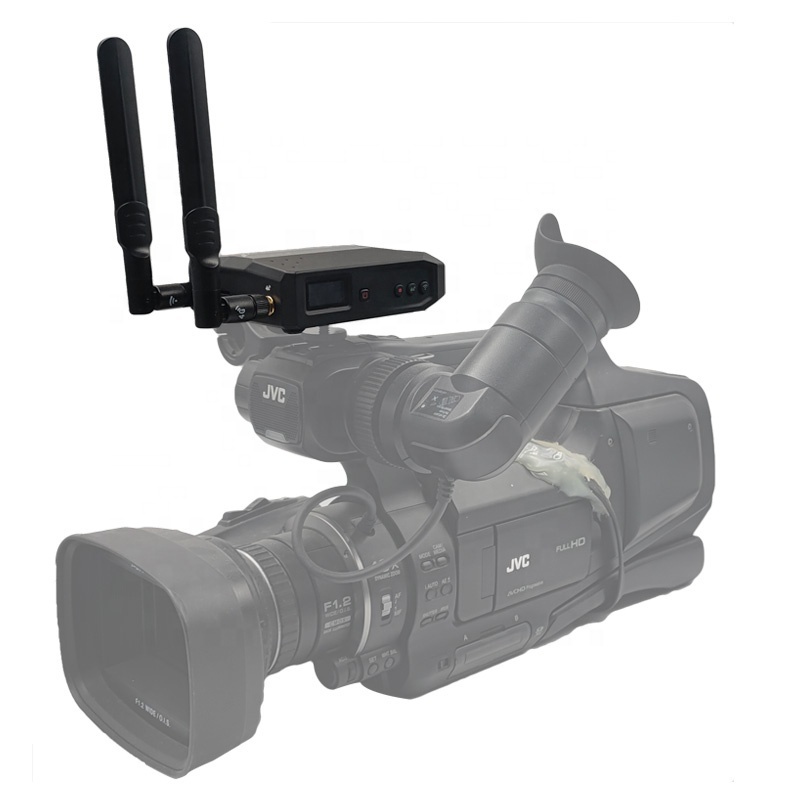

Mine Q7 4G Live Video Encoder
Video Introduction
Product Specification
|
Model
|
Mine Q7
|
|
Support HDMI Resolution
|
1080p/720p @24/25/30/50/60fps ; 1080i@50/60fps
|
|
Encoding Type
|
H.264 for RTMP/H.265 for recording
|
|
Encoding Level
|
H.264/AVC High/Main/Baseline Profile
|
|
Output TS Stream Resolution
|
1920*1080 1920*720 960*540 ; 848*480 640*360 480*720
|
|
Encoding Video FPS
|
15-30FPS
|
|
Input
|
HDMI Audio or 1.*3.5mm mic
|
|
Sample Rates
|
32KHz 44.4kHZ 48kHZ
|
|
Encoding
|
AAC (48K)
|
|
Ts Protocol
|
RTMP/RTMPS/RTSP
|
|
Management
|
M Live App Mobile Control, Android/iOS
|
|
Battery Capacity
|
4000mAh (built-in)
|
|
Work Duration
|
2-3 hours, 12V/3A external charging treasure is allowed for charging.
|
|
Storage Temperature
|
(-40°C~90°C)
|
|
Working Temperature
|
(-20°C~80°C)
|
|
Relative Humidity
|
5%-90% no condensation
|
|
Package Dimension
|
23*20*10 (CM)
|
|
Package Gross Weight
|
1 KG
|
Product Features
LED screen display Signal, recording status, battery, lock-device,input,output, birate and IP adress. Let you know live streaming status easily.
Lock-device function avoids working to wrong operate while live broadcasting. Only power button work after device locked, but M live App operation normally.
Support TF card recording
MiNE Media Story
Partnering with MiNE Media, the young but professional broadcast brand has been a fresh experience for you.
It is a professional provider of live broadcast solutions, focusing on outdoor portable broadcasting products, such as 5G/4G streaming encoder and 4G cellular bonding router. What makes MiNE Media unique is that all our products are focused on network aggregation.
Whether it is a video encoder, video switcher, or a bonding router, we use our binding technology to provide a stable network for different types of outdoor live broadcasts. For 17 years to now, we have been pursuing the development and manufacture of high-quality and low-delay broadcasting equipment.
We are committed to establishing the live broadcast ecosystem of MiNE Media. Provide more products and solutions for outdoor live broadcasting activities.
