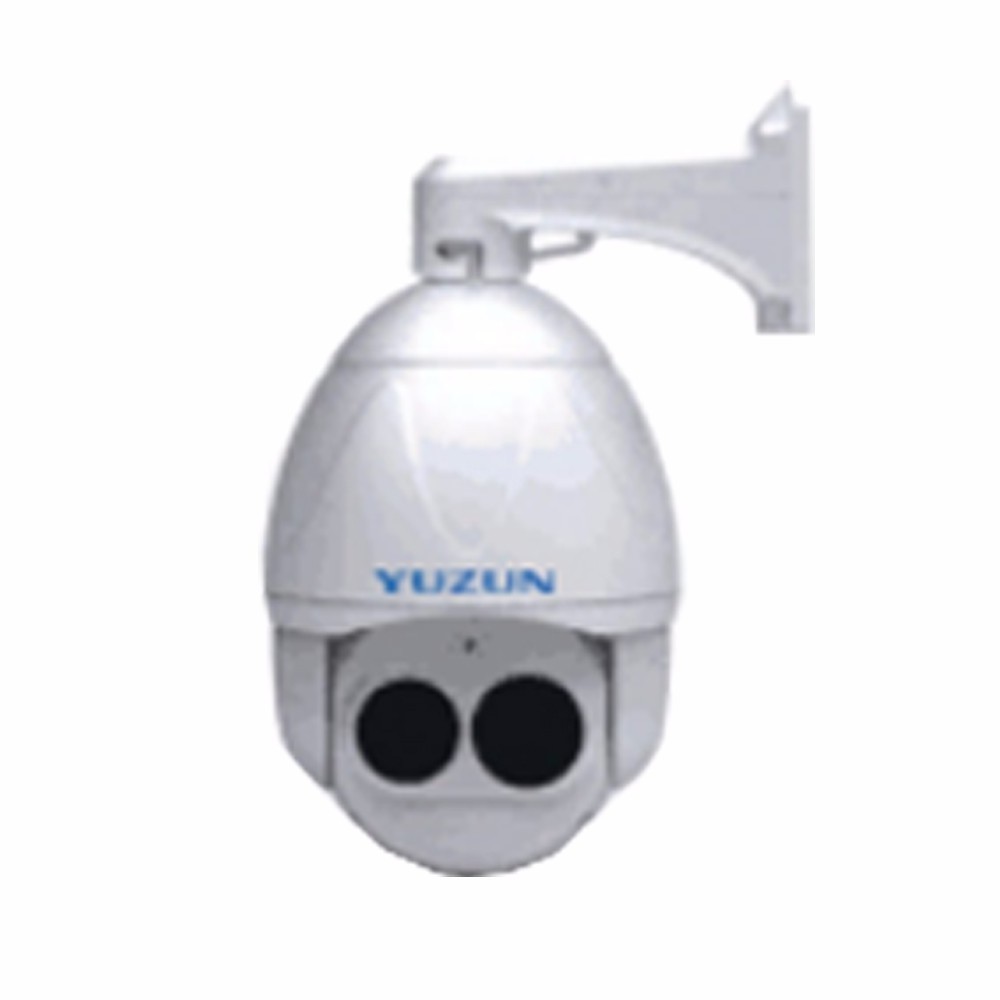

1080p outdoor dual heat Sensor thermal cctv security ptz camera

Model

YZ-NP25H22F

Thermal imaging camera performance

Resolution

≥320*240

Wave band

8~14um

Thermal sensitivity/NETD

50mK/F1.0,300K

Lens

25mm(35mm/50mm optional)

Recognition distance(people)

180M (250/350M)

Recognition distance(vehicle)

350M (500/650M)

Pseudo color video

Black and thermal/ white thermal/ Rainbow / red and custom (12 definitions optional)

FOV

11.9o×9o (23.7o×17.9o/17o×12.8o)

Scene mode

Indoor / outdoor / sky and ground/ ocean and sky/ linear / custom etc.

Mirroring function

Horizontal / vertical / horizontal + vertical

Noise reduction function

Support,2D/3D

Output image

D1/ CIF(30fps)

Output mode

Network RJ45

Visible light camera

Image sensor

1/2.8’CMOS

Effective pixels

2.0M pixels

Horizontal resolution

≥1000TVL

Focal length

4.7mm(F1.6) - 103 mm(F3.2)

Zoom

22x optical zoom

Focus

Automatic / manual settings, parameters can be set

Illumination

Color 0.05LUX monochorme0.01LUX,0Lux/F2(IR)

White balance

Automatic white balance / manual

Max resolution

First stream:1920*1080

Second stream:640*360

Video bit rate

0.1Mbps-6Mbps adjustable

Video stream

Dual stream, at maximum resolution and 25 FPS while the output of the video frame rate, video frame rate adjustable 1~25fps

3D noise reduction

Support

Low illumination enhanced

Support

Infrared anti-reflection

Support

PTZ function

Rotation range

Horizontal : 0~360° continuous rotation;vertical : 0°~-90°

Rotation speed

Horizontal : 0.1~355°/s;vertical : 0.1~355°/s

Preset

128

Linear scanning

The user can set the starting point and the end point of the line scanning; the scanning speed can be modified; the scanning angle can be automatically recognized according to the order of the user's starting and ending point of the line scanning);

Trajectory

The maximum number of records can be recorded and demonstrated for 4 track scanning, each record can include up to 100 movements

PTZ function

Human focus / speed automatic matching function, power failure memory function

Network

Network protocols

IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, UPnP, DDNS, NTP, IGMP, ICMP;

Access protocols

Standard ONVIF2.0 protocol

Safety

Password protection, multi-user access, access control

IE application

Support web configuration, support OSD character overlay of channel title and time information

System integration

APP interface

Support API,SDK

Network interface

2 ports of RJ45 10Base-T/100Base-TX(Support for thermal imaging and camera, two ports for both)

Others

Power supply

AC24V/DC12V

Power consumption

<60W

Working environment

Working termperature-35℃~+55℃(heater activated-40℃-+50℃);working humidity≤ 90%

Housing

Aluminum alloy die casting

IP rating

IP66
