Quick Details
-
Brand Name:
-
NOVACELL
-
Model Number:
-
NV-104060P
-
Battery Size:
-
104060
-
Place of Origin:
-
guangdong
-
Weight:
-
60g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
O.2C
-
Electric Energy:
-
11.1 Wh
-
Certificate:
-
CE,RoHS,FCC,MSDS,UN38.3 BIS KC CB IEC
-
Cycle life:
-
500 Times
-
OEM/ODM:
-
Accepatable
-
Keywords:
-
3.7v Lithium Ion polymer Battery
-
Sample:
-
Yes
-
Wire leads:
-
Customer's Pointed
-
Quality Grade:
-
A1
-
Protect PCM:
-
To be determined
-
Connector:
-
Customer's Pointed
-
Warranty:
-
13 MONTHS
Quick Details
-
Storage Type:
-
dry, cool and ventilation
-
Anode Material:
-
NCM
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
-
Brand Name:
-
NOVACELL
-
Model Number:
-
NV-104060P
-
Battery Size:
-
104060
-
Place of Origin:
-
guangdong
-
Weight:
-
60g
-
The charging ratio:
-
0.5C
-
The discharge rate:
-
O.2C
-
Electric Energy:
-
11.1 Wh
-
Certificate:
-
CE,RoHS,FCC,MSDS,UN38.3 BIS KC CB IEC
-
Cycle life:
-
500 Times
-
OEM/ODM:
-
Accepatable
-
Keywords:
-
3.7v Lithium Ion polymer Battery
-
Sample:
-
Yes
-
Wire leads:
-
Customer's Pointed
-
Quality Grade:
-
A1
-
Protect PCM:
-
To be determined
-
Connector:
-
Customer's Pointed
-
Warranty:
-
13 MONTHS

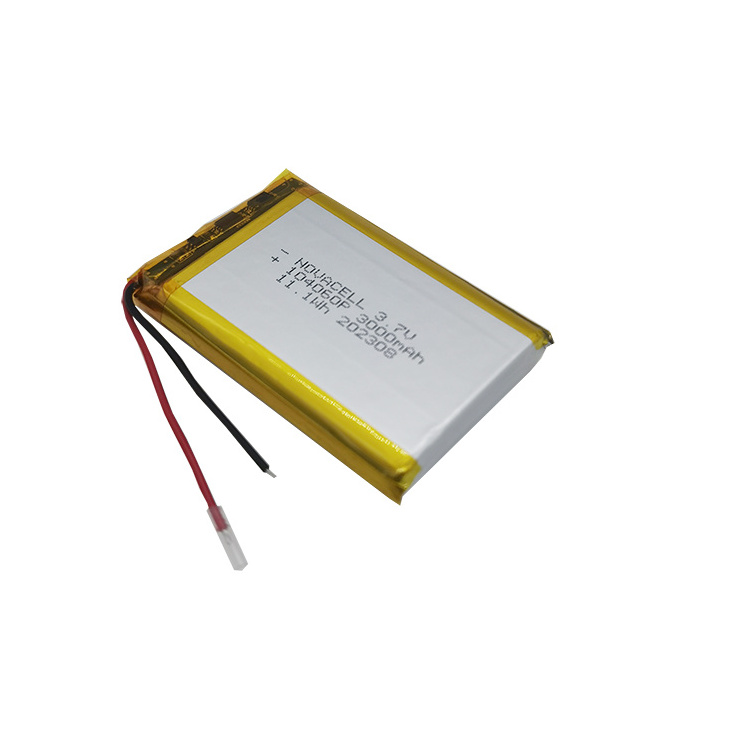

High Capacity 104060 3.7v 3000mah Lithium Ion Polymer Battery Lipo Battery for Electronic equipment
Product Description
Product Advantage
1. Shape, dimension, voltage, capacity and current can be customized
2. Light weight, high density, safety and long life cycle
3. Protection pcb board, cable and connector are included
4. Low self-discharge rate
5. Eco-friendly
Product Specification
|
|
Item
|
Details
|
Remark
|
|
Energy
|
Nominal Voltage
|
3.7V
|
batteries lithium
|
|
|
Rated Capacity
|
3000mAh
|
polymer battery
|
|
|
Battery type
|
Li polymer battery
|
|
|
|
Energy
|
11.1wh
|
|
|
Electrical Parameters
|
Standard charge current
|
0.5C
|
Recommended charge and discharge current 0.2C
|
|
|
Standard discharge current
|
0.2C
|
|
|
|
Maximum charge current
|
1C
|
Custom
|
|
|
Maximum discharge current
|
1C
|
|
|
|
Charge cut off voltage
|
4.2V
|
|
|
|
Discharge cut off voltage
|
3.0V
|
|
|
Structure
|
Max. Dimention
|
T10.5*W40*L62mm
|
inclu. PCM
|
|
|
N.W.
|
60g
|
|
|
Working Temperature
|
Charging temperature
|
0~45℃
|
recommended
|
|
|
Discharging temperature
|
-10~60℃
|
recommended
|
|
|
Storage temperature
|
0~45℃
|
|
|
Accessories
|
Protection circuit Board
|
Included
|
Optional
|
|
|
Cut off discharge voltage
|
3.0V
|
2.4/2.75/3.0V for Option
|
|
|
Wire leads
|
50mm
|
Custom
|
|
|
Connector
|
Flying leads
|
Custom
|
Product display
ISO9001:2015 Guangdong manufacturer
This battery with
CE,RoHS,FCC,MSDS,UN38.3 BIS KC CB IEC
certification
Welcome OEM&Customize service!
Related Products
|
Type
|
Model
|
Nominal Voltage(V)
|
Nominal Capacity(mAh)
|
Dimension(mm)
|
|
**1020
|
301020P
|
3.7V
|
30mAh
|
T3*W10*L20mm
|
|
**1030
|
301030P
|
3.7V
|
50mAh
|
T3*W10*L30mm
|
|
**1119
|
401119P
|
3.7V
|
55mAh
|
T4*W11*L19mm
|
|
**1225
|
401225P
|
3.7V
|
100mAh
|
T4*W12*L25mm
|
|
**1230
|
401230P
|
3.7V
|
120mAh
|
T4*W12*L30mm
|
|
**2020
|
302020P
|
3.7V
|
90mAh
|
T3*W20*L20mm
|
|
**2025
|
302025P
|
3.7V
|
100mAh
|
T3*W20*L25mm
|
|
|
602025P
|
3.7V
|
250mAh
|
T6*W20*L25mm
|
|
**2030
|
302030P
|
3.7V
|
150mAh
|
T3*W20*L30mm
|
|
|
402030P
|
3.7V
|
200mAh
|
T4*W20*L30mm
|
|
|
502030P
|
3.7V
|
250mAh
|
T5*W20*L30mm
|
|
|
602030P
|
3.7V
|
350mAh
|
T6*W20*L30mm
|
|
**2035
|
302035P
|
3.7V
|
200mAh
|
T3*W20*L35mm
|
|
|
402035P
|
3.7V
|
250mAh
|
T4*W20*L35mm
|
|
|
502035P
|
3.7V
|
350mAh
|
T5*W20*L35mm
|
|
**2040
|
302040P
|
3.7V
|
200mAh
|
T3*W20*L40mm
|
|
|
402040P
|
3.7V
|
300mAh
|
T4*W20*L40mm
|
|
|
502040P
|
3.7V
|
350mAh
|
T5*W20*L40mm
|
|
|
602040P
|
3.7V
|
450mAh
|
T6*W20*L40mm
|
|
|
802040P
|
3.7V
|
600mAh
|
T8*W20*L40mm
|
|
|
902040P
|
3.7V
|
700mAh
|
T9*W20*L40mm
|
|
**2525
|
302525P
|
3.7V
|
150mAh
|
T3*W25*L25mm
|
|
|
402525P
|
3.7V
|
250mAh
|
T4*W25*L25mm
|
|
|
502525P
|
3.7V
|
300mAh
|
T5*W25*L25mm
|
|
**2530
|
302530P
|
3.7V
|
200mAh
|
T3*W25*L30mm
|
|
|
402530P
|
3.7V
|
300mAh
|
T4*W25*L30mm
|
|
|
502530P
|
3.7V
|
350mAh
|
T5*W25*L30mm
|
|
|
602530P
|
3.7V
|
450mAh
|
T6*W25*L30mm
|
|
|
702530P
|
3.7V
|
500mAh
|
T7*W25*L30mm
|
|
|
802530P
|
3.7V
|
600mAh
|
T8*W25*L30mm
|
|
|
902530P
|
3.7V
|
650mAh
|
T9*W25*L30mm
|
|
**2540
|
302540P
|
3.7V
|
300mAh
|
T3*W25*L40mm
|
|
|
402540P
|
3.7V
|
400mAh
|
T4*W25*L40mm
|
|
|
502540P
|
3.7V
|
500mAh
|
T5*W25*L40mm
|
|
|
602540P
|
3.7V
|
600mAh
|
T6*W25*L40mm
|
|
|
702540P
|
3.7V
|
700mAh
|
T7*W25*L40mm
|
|
|
802540P
|
3.7V
|
800mAh
|
T8*W25*L40mm
|
|
|
902540P
|
3.7V
|
900mAh
|
T9*W25*L40mm
|
|
**3030
|
303030P
|
3.7V
|
250mAh
|
T3*W30*L30mm
|
|
|
403030P
|
3.7V
|
350mAh
|
T4*W30*L30mm
|
|
|
503030P
|
3.7V
|
400mAh
|
T5*W30*L30mm
|
|
|
603030P
|
3.7V
|
500mAh
|
T6*W30*L30mm
|
|
|
903030P
|
3.7V
|
800mAh
|
T9*W30*L30mm
|
|
**3035
|
303035P
|
3.7V
|
300mAh
|
T3*W30*L35mm
|
|
|
403035P
|
3.7V
|
400mAh
|
T4*W30*L35mm
|
|
|
503035P
|
3.7V
|
500mAh
|
T5*W30*L35mm
|
|
**3040
|
303040P
|
3.7V
|
350mAh
|
T3*W30*L40mm
|
|
|
403040P
|
3.7V
|
450mAh
|
T4*W30*L40mm
|
|
|
503040P
|
3.7V
|
600mAh
|
T5*W30*L40mm
|
|
|
803040P
|
3.7V
|
1000mAh
|
T8*W30*L40mm
|
|
**3048
|
303048P
|
3.7V
|
400mAh
|
T3*W30*L48mm
|
|
|
403048P
|
3.7V
|
550mAh
|
T4*W30*L48mm
|
|
|
503048P
|
3.7V
|
700mAh
|
T5*W30*L48mm
|
|
|
603048P
|
3.7V
|
850mAh
|
T6*W30*L48mm
|
|
|
703048P
|
3.7V
|
1000mAh
|
T7*W30*L48mm
|
|
|
803048P
|
3.7V
|
1200mAh
|
T8*W30*L48mm
|
|
|
903048P
|
3.7V
|
1400mAh
|
T9*W30*L48mm
|
|
|
103048P
|
3.7V
|
1500mAh
|
T10*W30*L48mm
|
|
**3448
|
303448P
|
3.7V
|
450mAh
|
T3*W34*L48mm
|
|
|
403448P
|
3.7V
|
650mAh
|
T4*W34*L48mm
|
|
|
503448P
|
3.7V
|
800mAh
|
T5*W34*L48mm
|
|
|
603448P
|
3.7V
|
970mAh
|
T6*W34*L48mm
|
|
|
703448P
|
3.7V
|
1200mAh
|
T7*W34*L48mm
|
|
|
803448P
|
3.7V
|
1400mAh
|
T8*W34*L48mm
|
|
|
903448P
|
3.7V
|
1600mAh
|
T9*W34*L48mm
|
|
|
103448P
|
3.7V
|
1800mAh
|
T10*W34*L48mm
|
|
**3450
|
303450P
|
3.7V
|
500mAh
|
T3*W34*L50mm
|
|
|
403450P
|
3.7V
|
650mAh
|
T4*W34*L50mm
|
|
|
503450P
|
3.7V
|
800mAh
|
T5*W34*L50mm
|
|
|
603450P
|
3.7V
|
1100mAh
|
T6*W34*L50mm
|
|
|
703450P
|
3.7V
|
1300mAh
|
T7*W34*L50mm
|
|
|
803450P
|
3.7V
|
1500mAh
|
T8*W34*L50mm
|
|
|
903450P
|
3.7V
|
1600mAh
|
T9*W34*L50mm
|
|
|
103450P
|
3.7V
|
1900mAh
|
T10*W34*L50mm
|
|
|
113450P
|
3.7V
|
2000mAh
|
T11*W34*L50mm
|
|
**3759
|
603759P
|
3.7V
|
1400mAh
|
T6*W37*L59mm
|
|
**4050
|
504050P
|
3.7V
|
1100mAh
|
T5*W40*L50mm
|
|
|
604050P
|
3.7V
|
1300mAh
|
T6*W40*L50mm
|
|
|
804050P
|
3.7V
|
1700mAh
|
T8*W40*L50mm
|
|
|
104050P
|
3.7V
|
2400mAh
|
T10*W40*L50mm
|
|
**4550
|
504550P
|
3.7V
|
1200mAh
|
T5*W45*L50mm
|
|
|
104550P
|
3.7V
|
2700mAh
|
T10*W45*L50mm
|
|
**5050
|
505050P
|
3.7V
|
1300mAh
|
T5*W50*L50mm
|
|
|
605050P
|
3.7V
|
1600mAh
|
T6*W50*L50mm
|
|
|
105050P
|
3.7V
|
3000mAh
|
T10*W50*L50mm
|
|
**5070
|
105070P
|
3.7V
|
4500mAh
|
T10*W50*L70mm
|
|
**5080
|
505080P
|
3.7V
|
2400mAh
|
T5*W50*L80mm
|
|
|
105080P
|
3.7V
|
5000mAh
|
T10*W50*L80mm
|
|
**6090
|
606090P
|
3.7V
|
4000mAh
|
T6*W60*L90mm
|
|
**65113
|
1165113P
|
3.7V
|
10000mAh
|
T11*W65*L113mm
|
|
**66121
|
7566121P
|
3.7V
|
8000mAh
|
T7.5*W66*L121mm
|
|
**90120
|
9590120P
|
3.7V
|
10000mAh
|
T9.5*W90*L120mm
|
Product packaging
1) Package: PI965 & PI967 package requirement
2) Shipping: Express,Air,Sea or Parcel Post
Product Application
1. Tracker, heated golves, heated clothes, consumer electronics, earphones, electronic scale, mini fan, earphone headset, shoes, speaker, fishing light, india power bank, smart bracelet, medical device, led light, sensor, keyboard, record pen, smart card, heated jackets,
2. Scooter, strips, POS machine, water meter, solar street lights, solar lamps, electronic lock, CCTV Camara, beauty instruments, medical instruments, Vaccum cleaner, router, camping lantern, emergency light, toys, Robot lawn mover, flashlight,
3. Ebike, energy storage, solar energy, boats, marines, golf carts,solar system, camping light, wheelchair, communication tower, home power system
