Quick Details
-
Wheel:
-
Four-wheel
-
Warranty:
-
1vyears
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGTAI
-
Model Number:
-
KPJ
-
Product name:
-
heavy duty platform cart and heavy duty steel trolley
-
Load Capacity:
-
customized
-
Keyword:
-
transfer cart;electric flat car
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square
Quick Details
-
Color:
-
Brown
-
Usage:
-
Tools
-
Material:
-
Stainless Steel
-
Wheel:
-
Four-wheel
-
Warranty:
-
1vyears
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGTAI
-
Model Number:
-
KPJ
-
Product name:
-
heavy duty platform cart and heavy duty steel trolley
-
Load Capacity:
-
customized
-
Keyword:
-
transfer cart;electric flat car
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square

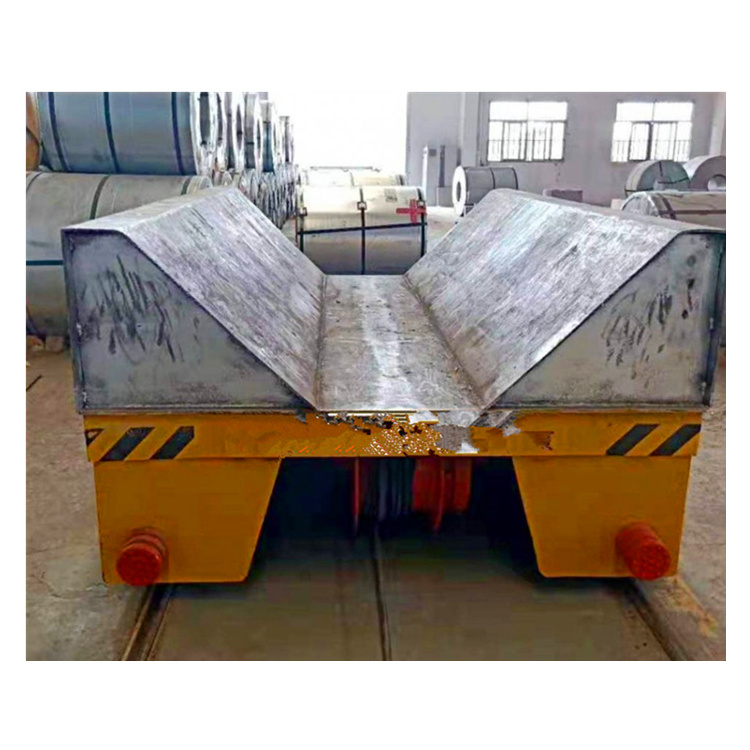

20 tons electric powered coil transfer trolley
Electric rail flat car is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on. With different styles and d ifferent capacity , we have the solution you need and each style can be designed for your specific application.
|
Model
|
KPT-2T | KPT-5T | KPT-10T | KPT-16T | KPT-20T | KPT-50T | KPT-100T | KPT-150T | |
| Rated load (T) | 2 | 5 | 10 | 16 | 20 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P43 | QU100 | QU100 | |
20 tons electric powered coil transfer trolley
1. The running distance is not limited for the battery powered transfer car
2. Low using frequency(The spare battery can be provided if higher using frequency)
3. Despite of turning or going straight, the transfer car can realize
4. Despite of running on indoor or outdoor, high temperarture or explosive environment, ferry or cross rail, the transfer car can realize.
5. Dimensions,capacity, loading platform superstructure, speed and many others special funcition can be customized as per client request.
20 tons electric powered coil transfer trolley
20 tons electric powered coil transfer trolley
Presale service:
1. Free comprehensive and detailed technology consultancyin construction sites, referential programs for construction equipment and the most suitable product program.
2.we have a complete service network,hotline services for 24 hours and assist you to solve the problem in a short time.
After-sale service:
1.We provide free guidance of installation and debugging and free training of operation, care and maintenance.
2. One year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine's maintenance and reparations.
