Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RFM
-
Voltage:
-
380V Or As Customize
-
Dimension(L*W*H):
-
7500*1500*1300Mm
-
Weight:
-
4000 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
raw material:
-
ppgi
-
motor brand:
-
china famous brand
-
name:
-
glazed tile former machine
-
plc:
-
MITSUBISHI/DELTA/SIEMENS
-
operate style:
-
automatic
-
profiles:
-
as customers requirement
-
thickness:
-
0.3-0.8mm
-
cutting blade material:
-
cr12 with quenched treatment
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
6-10M/Min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RFM
-
Voltage:
-
380V Or As Customize
-
Dimension(L*W*H):
-
7500*1500*1300Mm
-
Weight:
-
4000 kg
-
Marketing Type:
-
New Product 2024
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
raw material:
-
ppgi
-
motor brand:
-
china famous brand
-
name:
-
glazed tile former machine
-
plc:
-
MITSUBISHI/DELTA/SIEMENS
-
operate style:
-
automatic
-
profiles:
-
as customers requirement
-
thickness:
-
0.3-0.8mm
-
cutting blade material:
-
cr12 with quenched treatment
-
After Warranty Service:
-
Video technical support

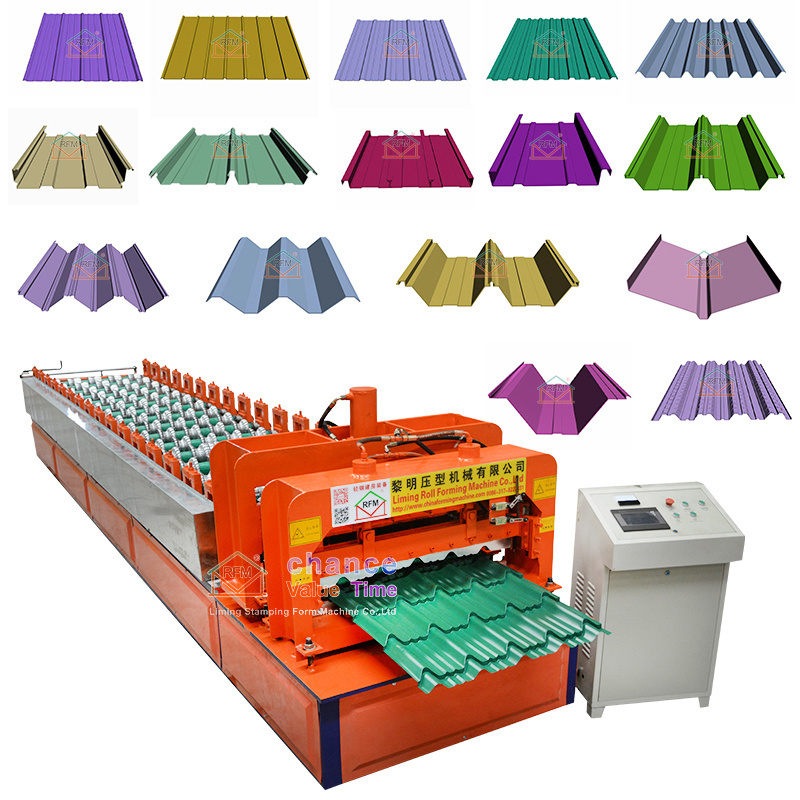

Liming High Quality Sheet Wall Glazed Tile Making Machine Roof Panel Used Roll Forming Machinery
Product Paramenters
|
NO.
|
Item
|
Specification
|
|
Material
|
Raw material
|
Galvanized steel or PPGI
|
|
|
Thickness
|
0.3mm—0.8 mm
|
|
Decoiler
|
Operation
|
Manual or Hydraulic
|
|
|
Weight capacity
|
3T 5T 7T 10T
|
|
Machine
|
Roller station
|
10-14 or depend on customer' drawing
|
|
|
Shaft diameter
|
70mm—80 mm
|
|
|
Machine body frame
|
350H steel
|
|
|
Roller material
|
Cr12
|
|
|
Machine size
|
About 6*1.5*1.2 m
|
|
|
Machine weight
|
4 - 6 tons
|
|
|
Machine color
|
As customer need
|
|
|
Working speed
|
12-60 m/min
|
|
Cutter
|
Hardness
|
50-65 HRC
|
|
|
Cutting tolerance
|
± 1mm
|
|
|
Material
|
Cr12
|
|
|
Operate
|
Hydraulic cutting
|
|
Power
|
Main motor
|
5.5 KW
|
|
|
Pump motor for cutter
|
7.5 KW
|
|
|
Voltage
|
380V/50HZ, 3P or Customized as customer' request
|
|
Control system
|
PLC brand
|
Delta
|
|
|
Screen
|
Delta touch screen
|
|
|
Language
|
Chinese and English or add customer need language
|
Roof system profiles
Contact us
Partner
Related products
Packing and shipping
After-Sales Service
FAQS
Q1. How do I choose the right machine for me?
1. A machine doesn't just provide a few photos to prove what they can produce
2. A machine should have a complete production and assembly system photos and videos. When choosing a company with a factory, it is necessary to ensure that the company has a complete after-sales service system.
Q2. You don't show the product I need, can you manufacture it?
Our company's engineers have studied in well-known European cold bending companies and have great advantages in machine design and R&D and manufacturing.
Q3. How long can the machine be built?
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Q4. Why are your prices higher than others?
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life.
The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Q5. Do you have after-sales support?
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Q6. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
