- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RD-TPA1/RD-TPA1B
-
Product name:
-
Power Relay
-
Color:
-
White
-
Rated voltage:
-
220-240V OR AC/DC 24-264V
-
Rated Current:
-
16A/AC1
-
Power comsumption:
-
1w
-
Rate frequency:
-
50/60hz
-
Number of chanels:
-
1
-
Programs:
-
weekly,annual and astronomical
-
model of work:
-
manual,automatic,holiday,random
-
Summer / winter time:
-
off,automatic changeover
Quick Details
-
Contact Load:
-
High Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RELETEK
-
Model Number:
-
RD-TPA1/RD-TPA1B
-
Product name:
-
Power Relay
-
Color:
-
White
-
Rated voltage:
-
220-240V OR AC/DC 24-264V
-
Rated Current:
-
16A/AC1
-
Power comsumption:
-
1w
-
Rate frequency:
-
50/60hz
-
Number of chanels:
-
1
-
Programs:
-
weekly,annual and astronomical
-
model of work:
-
manual,automatic,holiday,random
-
Summer / winter time:
-
off,automatic changeover

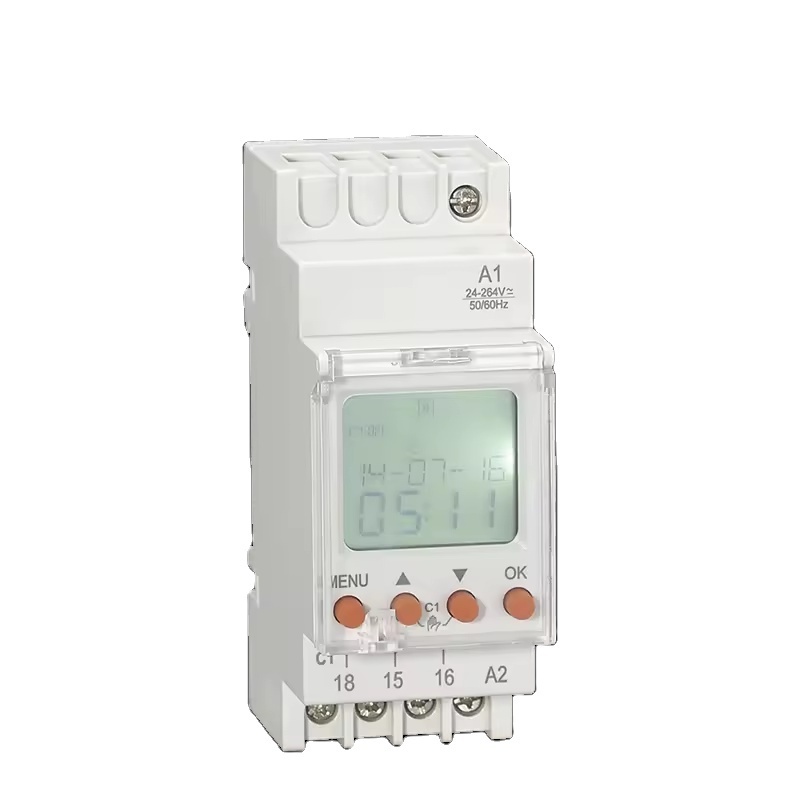

RD-TPM series multifunction time switch is for realization of time functions in the systems of automatics and steering. It calculates the sunrise and sunset time automatically according to the set geographic position and time zone, without the use of a photocell sensor.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.
Specification
|
Model
|
RD-TPM1
|
RD-TPM1B
|
|
|
Rated voltage
|
AC 220-240V
|
AC/DC 24-264V
|
|
|
Rated frequency
|
50/60Hz,O
|
|
|
|
Power consumption
|
1W
|
|
|
|
Supply volltage tolerance
|
±10%
|
|
|
|
Number of channels
|
1
|
|
|
|
Program
|
weekly,annual and astronomical
|
|
|
|
Mode of work
|
manual, automatic, holiday,random
|
|
|
|
Summer /winter time
|
off, automatic,changeover
|
|
|
|
Time tolerance
|
≤1s/day at 25℃
|
|
|
|
Power reserve
|
3 year
|
10 year
|
|
|
Data readout
|
LCD display
|
LCD display with blacklight
|
|
|
Number of contacts
|
1C/0
|
|
|
|
Current of contacts
|
16A/250V AC1
|
|
|
|
Switching capacity
|
4000VA/AC,384W/DC
|
|
|
|
Mechanical life
|
10
6
|
|
|
|
Electrical life
|
10
5
|
|
|
|
Rated insulation voltage
|
250V
|
|
|
|
Protection degree
|
IP20
|
|
|
|
Pollution degree
|
3
|
|
|
|
Altitude
|
≤2000m
|
|
|
|
Ambient temperature
|
-30℃~55℃
|
|
|
|
Permissable relative humidity
|
≤50% at 40℃（without condensation）
|
|
|
|
Storage temperature
|
-35℃~70℃
|
|
|
|
Wire size
|
1mm
2
~4mm
2
|
|
|
|
Tightening torque
|
0.5Nm
|
|
|
|
Mounting
|
TH-35 Rail（EN60715)
|
|
|
|
Standard
|
EN/IEC60730-1, EN/IEC60730-2-7
|
|
|
Front-face panel
Wiring diagrams
FAQ
A) Can I get a sample for test before place order?
Of course!
B) How's the delivery?Because I really need them is urgently?
Basically we have sample in stock.7 days for bulk order
C) What's your shipment method?
We ship by Express, by air, by sea, by train.
D) If i want to release order, what's the payment method you accept ?
We accept T/T, Paypal, Western union, L/C,Trade Assurance.
E) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
F) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
G) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
