Quick Details
-
Brand Name:
-
XCCRFID
-
Product Name:
-
XCC A6 reader/A6 card issuer
-
Standard:
-
ISO 18000-6C
-
Operating Distance:
-
2-8cm
-
OEM/ODM:
-
Accept
-
Feature:
-
Read & write EPC, User area, read TID
-
Size:
-
99.5mm*99.5mm*19.8mm
-
Color:
-
Black
-
agreement:
-
ISO/IEC14443A/B,ISO/IEC15693
Quick Details
-
Frequency:
-
13.56MHz,125KHz, 13.56mhz
-
Protocol:
-
ISO/IEC 14443A ,ISO/EM4001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XCCRFID
-
Product Name:
-
XCC A6 reader/A6 card issuer
-
Standard:
-
ISO 18000-6C
-
Operating Distance:
-
2-8cm
-
OEM/ODM:
-
Accept
-
Feature:
-
Read & write EPC, User area, read TID
-
Size:
-
99.5mm*99.5mm*19.8mm
-
Color:
-
Black
-
agreement:
-
ISO/IEC14443A/B,ISO/IEC15693
|
name
|
XCC A6 reader/A6 card issuer
|
|
|
|
|||
|
Working mode
|
Active/passive mode
|
|
|
|
|||
|
Size
|
99.5*99.5*19.8mm (error ±3mm) line length 1000mm (error ±10mm)
|
|
|
|
|||
|
international standard
|
ISO/IEC 14443A 、ISO/EM4001
|
|
|
|
|||
|
Support the card
|
Mf-s50,MF-S70,1208-CPU+MF composite card, MF3-DESFIRE Ev1 card,Ntag213 Card,15693,14443B, id card
|
|
|
|
|||
|
Electrical parameters
|
Working voltage: DC 5V (±4%)
Current: standby current less than 80mA;card current is less than 200mA
|
|
|
|
|||
|
Working temperature
|
-10℃ ~ 50℃
|
|
|
|
|||
|
Storage temperature
|
-20℃ ~ 65℃
|
|
|
|
|||
|
Operating frequency
|
13.56mhz/125KHZ
|
|
|
|
|||

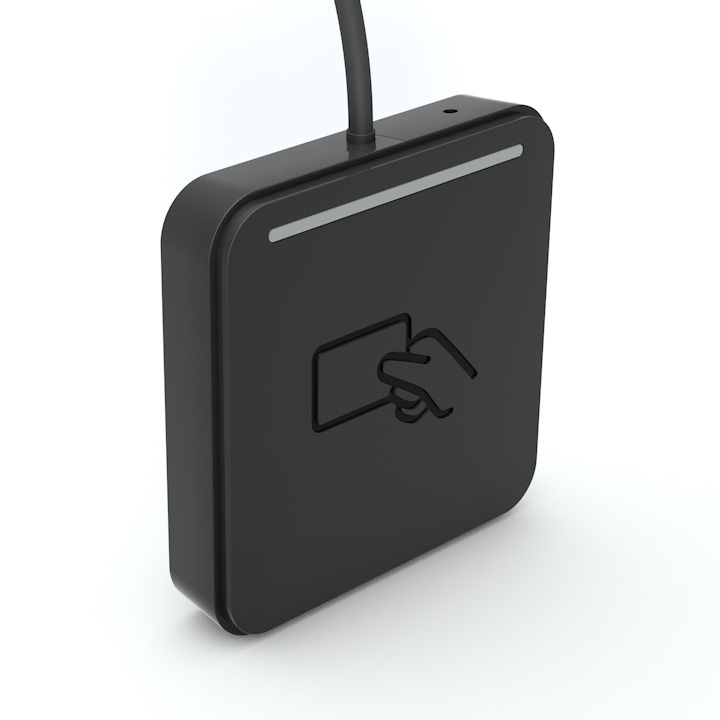

XCC A6 non-drive read-write desktop card writer, is based on ISO/ IEC14443a, ISO/EM4001 international standard protocol development of non-contact intelligence Can card serial number reader. It adopts the high-performance RF card reading circuit designed by our company. With high integration, anti - interference Strong force, small size, stable performance, cost-effective, easy to use characteristics. Can provide USB communication interface.
Widely used in access control, attendance, charging, anti-theft, patrol and other rfid applications.
