Quick Details
-
Voltage:
-
380V
-
Power:
-
0.75kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
5000*1400*1700mm
-
Year:
-
NEW
-
Product Name:
-

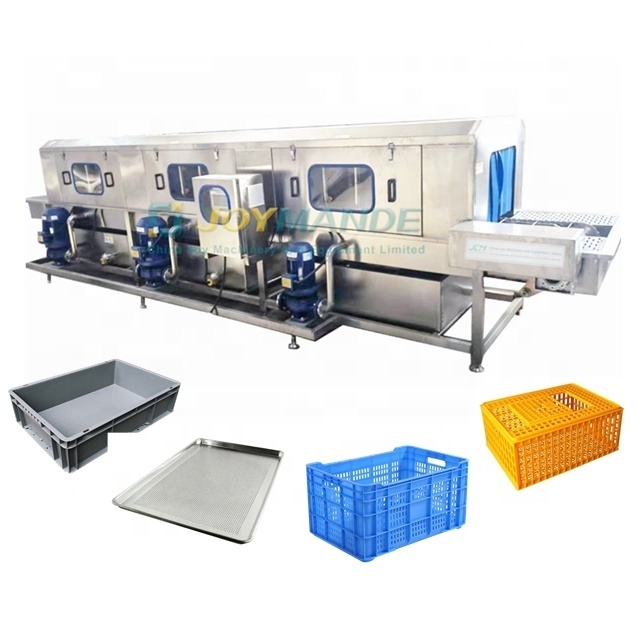

Fully Automatic Plastic Turnover Crate Cleaning Washing Machine
-
Material:
-
304 Stainless steel
-
Washing capacity:
-
300-1000pcs/h
-
Washing pressure:
-
5-6 bar
-
Working mode:
-
Automatic
-
Washing size:
-
all sizes
-
Heating model:
-
electric or steam
-
Package:
-
Standard Wooden Case
-
Application:
-
Trays,crate,bin,basket,pallet washing
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JOYMANDE
-
Type:
-
Crate Washer
-
Voltage:
-
380V
-
Power:
-
0.75kw
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
5000*1400*1700mm
-
Year:
-
NEW
-
Product Name:
-
Fully Automatic Plastic Turnover Crate Cleaning Washing Machine
-
Material:
-
304 Stainless steel
-
Washing capacity:
-
300-1000pcs/h
-
Washing pressure:
-
5-6 bar
-
Working mode:
-
Automatic
-
Washing size:
-
all sizes
-
Heating model:
-
electric or steam
-
Package:
-
Standard Wooden Case
-
Application:
-
Trays,crate,bin,basket,pallet washing
1.This machine is suitable for washing crates,tray,basket,pallet,turnover box,bakery tray and chicken cage,etc.
2.Machine is made of high quality 304 stainless steel.The crates are conveyed into washing
tunnel and washed by high pressure spraying water from up and down,left and right.
3.The whole machine has separate cleaning units. Each cleaning unit is coming with separate water tank,spraying pipe and fan type nozzles which have very good washing effect.
4.Each water tank has separate drain valves and double filters to prevent nozzles blocking.The washing water could be cycle used.
5.It is labor saving and easy to use.
1.Machine body is made of high quality 304 stainless steel.
2.Conveyor speed is frequncy adjustable.
3.High pressure water is spraying from up and down,left and right.The angles of the cleaning nozzles are adjustable.
4.Each water tank has separate drain valve and double filters to prevent nozzles blocking.Washing water is recycled used.
5.Configured adjustable guide bars,suitable for different size crates.
| Model | Cleaning Units | Motor Power | Water Pumps | Capacity | Machine Size |
| JME4500 | 2 | 0.75kw | 4kw*2pcs | 200-300pcs/h | 4000x1500x1700mm |
| JME5500 | 3 | 0.75kw | 4kw*3pcs | 400-800pcs/h | 6000x1500x1700mm |
| JME8000 | 4 | 0.75kw | 4kw*4pcs | 800-1200pcs/h | 8000x1500x1700mm |
| JME10000 | 5 | 1.5kw |
5.5kw*2pcs, 4kw*3pcs |
1500-1800pcs/h | 4000x1500x1700mm |
| Remark | Hot water heating device: Steam or electric heating device. | ||||
** Contact us and advise your processing crate size,crate application and washi ng capacity, We will choose suitable model for you. **
