Quick Details
-
Brand Name:
-
Ktac
-
Model Number:
-
MPPT-60A
-
Work Time (h):
-
24H
-
Max PV Power:
-
3700W
-
Max PV Voltage:
-
175V
-
Certificate:
-
CE
-
Warranty:
-
5Y
-
Rated Voltage:
-
12V/24V/36/48V Automatic Recognition
-
Product name:
-

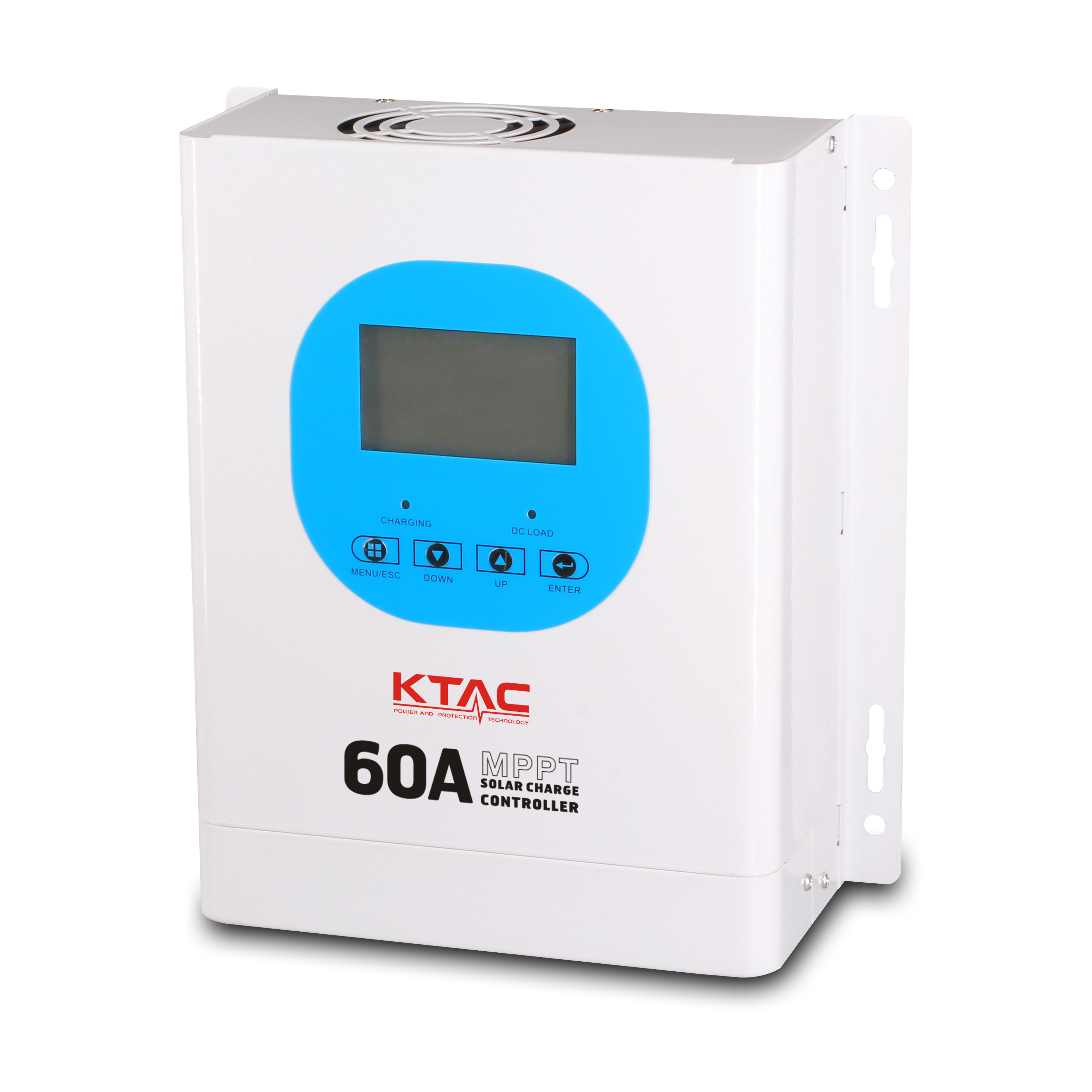

MTTP Solar Charger Controller
-
Rated Current:
-
60A
-
System voltage:
-
12V/24V/36v/48v Auto
-
Charge mode:
-
MPPT Charging
-
MPPT efficiency:
-
≥99.5%
-
Display:
-
Intelligent LCD display
-
Grow Weight:
-
2.5kg
-
Product Size:
-
255x240X75mm
-
Function:
-
MPPT Function
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ktac
-
Model Number:
-
MPPT-60A
-
Work Time (h):
-
24H
-
Max PV Power:
-
3700W
-
Max PV Voltage:
-
175V
-
Certificate:
-
CE
-
Warranty:
-
5Y
-
Rated Voltage:
-
12V/24V/36/48V Automatic Recognition
-
Product name:
-
MTTP Solar Charger Controller
-
Rated Current:
-
60A
-
System voltage:
-
12V/24V/36v/48v Auto
-
Charge mode:
-
MPPT Charging
-
MPPT efficiency:
-
≥99.5%
-
Display:
-
Intelligent LCD display
-
Grow Weight:
-
2.5kg
-
Product Size:
-
255x240X75mm
-
Function:
-
MPPT Function
Product Description
Specification
|
Model
|
MPPT-60A
|
|
|
|
Charging pattern
|
MPPT automatic maximum power point tracking
|
|
|
|
Charging mode
|
three stages: constan current(MPPT),Equalizing charging, float charging
|
|
|
|
System type
|
DC 12V/24V/48V
|
|
|
|
System voltage range
|
12V system
|
DC 9V-DC 15V
|
|
|
|
24V system
|
DC 18V-DC 30V
|
|
|
|
48V system
|
DC 36V-DC 60V
|
|
|
Soft start time
|
12V/24V/48V
|
<10S
|
|
|
Dynamic response recovery time
|
12V/24V/48V
|
<500us
|
|
|
Static power
|
12V/24V/48V
|
<2W
|
|
|
Overall efficiency
|
12V/24V/48V
|
>96.5%
|
|
|
PV modules uilization
|
12V/24V/48V
|
<99.7%
|
|
|
Input characteristic
|
|
|
|
|
MPPT Working
|
12V system
|
DC 18V-DC 175V
|
|
|
|
24V system
|
DC 34V-DC 175V
|
|
|
|
48V system
|
DC 65V-DC 175V
|
|
|
Input low voltage protection
|
12V system
|
DC 16V
|
|
|
|
24V system
|
DC 30V
|
|
|
|
48V system
|
DC 60V
|
|
|
Input low voltage recovery
|
12V system
|
DC 18V
|
|
|
|
24V system
|
DC 34V
|
|
|
|
48V system
|
DC 65V
|
|
|
Input voltage limit
|
12V/24V/48V -DC 180V
|
|
|
|
Input over voltage protection
|
12V/24V/48V -DC 175V
|
|
|
|
Input over voltage recovery
|
12V/24V/48V -DC 170V
|
|
|
|
Solar panel Max input power
|
12V system
|
900W
|
|
|
|
24V system
|
1700W
|
|
|
|
48V system
|
3400W
|
|
|
Output charateristic
|
|
|
|
|
Battery type available
|
12V/24V/48V
|
Lead Acid battery, colloidal battery, lithium battery..
|
|
