Quick Details
-
Weight (KG):
-
13 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aibote
-
Voltage:
-
220v/110v for optional, 220V/110 Optional
-
Power (kW):
-
0.15 kW
-
Product name:
-
80L Chemical Blades High Speed Mixer Overhead Stirrer
-
Motor Power:
-
150W
-
Motor Type:
-
Brushless DC Motor
-
Motor Torque:
-
600m N.M
-
Stirring Volume (Water):
-
80L
-
Stir Speed Range:
-
60- 1500 RPM
-
Digital display:
-
LED
-
Holder Length:
-
700mm
-
Gross weight (KG ):
-
12
Quick Details
-
Barrel Volume (L):
-
80
-
Max. Loading Volume (L):
-
80 L
-
Range of Spindle Speed(r.p.m):
-
60 - 1500 r.p.m
-
Weight (KG):
-
13 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Aibote
-
Voltage:
-
220v/110v for optional, 220V/110 Optional
-
Power (kW):
-
0.15 kW
-
Product name:
-
80L Chemical Blades High Speed Mixer Overhead Stirrer
-
Motor Power:
-
150W
-
Motor Type:
-
Brushless DC Motor
-
Motor Torque:
-
600m N.M
-
Stirring Volume (Water):
-
80L
-
Stir Speed Range:
-
60- 1500 RPM
-
Digital display:
-
LED
-
Holder Length:
-
700mm
-
Gross weight (KG ):
-
12

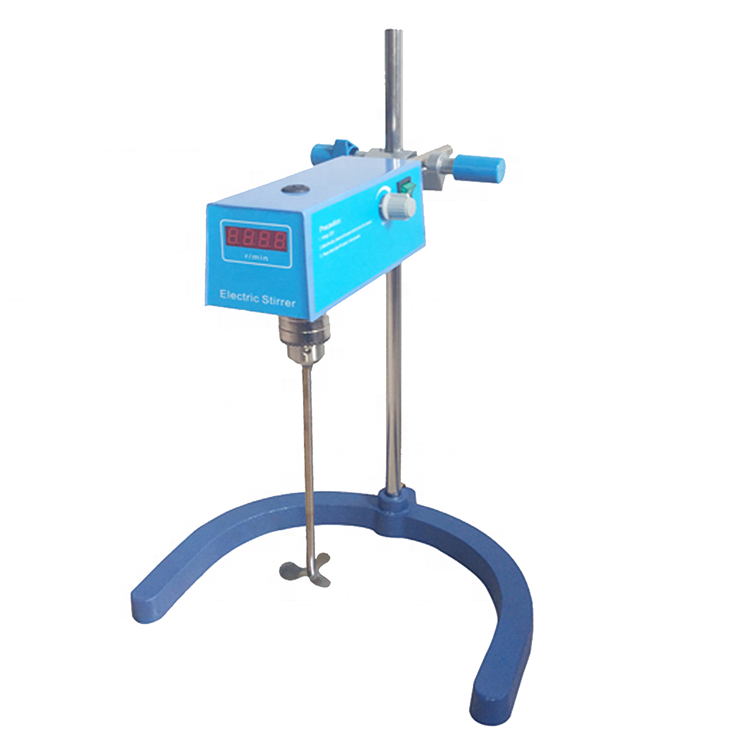

Introduction
HM-S series is an experimental equipment for liquid mixing and agitation.It's suitable to mix kinds of liquids,
such as shampoo, shower gel,honey,paint,cosmetic. It ’ s widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other field.
Feature
- Brushless DC motor drive ,low noise, high reliability and long continuous working.
- Digital display rotation speed,60-1500RPM
- 220/110V Optional
Specification
|
Model |
HM-40S |
HM-100S |
HM-150S |
HM-250S |
|
Motor Power |
4 0W |
10 0W |
15 0W |
25 0W |
|
Motor Type |
Brushless DC Motor |
|||
|
Motor Torque |
20 0m N.M |
45 0m N.M |
60 0m N.M |
1 N.M |
|
Voltage |
220V/110 Optional |
|||
|
Stirring Volume (Water) |
15 L |
40L |
80L |
150L |
|
Stir Speed Range |
60- 1500 RPM |
|||
|
Digital display |
LED |
|||
|
Stir Rod Length |
3 0 0mm (Standard) |
|||
|
Stir Rod Material |
SS 304 |
|||
|
Holder Length |
700mm |
|||
|
Chuck Clamping Range |
Ø 1.5 -1 0 |
Ø 1.5 -1 0 |
Ø 1.5 -1 3 |
Ø 1.5 -1 3 |
|
Dimension ( CM ) |
69 x 39 x 20 |
|||
|
Gross weight (KG ) |
1 1 |
11.5 |
12 |
12 |
Optional stir rod
