Quick Details
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
100 KG
-
Product name:
-
Rock Ore Gravity Separator Machine Vibration Gold Shaking Shaker Table
-
Time/min::
-
240-360
-
Surface siza of table(mm):
-
152*1825*4450
-
Application:
-
gold , zircon, iron, tin, ilmenite etc.
-
Feeding size:
-
0-2mm
-
Trainning:
-
supply
-
Stroke(mm):
-
10-30
-
Model Number:
-
6s
-
Certification:
-
CE ISO
Quick Details
-
Production Capacity:
-
0.05-1.5TPH, High capacity
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuxiang
-
Voltage:
-
Clients Local Standard
-
Dimension(L*W*H):
-
Diffrent Model
-
Weight:
-
100 KG
-
Product name:
-
Rock Ore Gravity Separator Machine Vibration Gold Shaking Shaker Table
-
Time/min::
-
240-360
-
Surface siza of table(mm):
-
152*1825*4450
-
Application:
-
gold , zircon, iron, tin, ilmenite etc.
-
Feeding size:
-
0-2mm
-
Trainning:
-
supply
-
Stroke(mm):
-
10-30
-
Model Number:
-
6s
-
Certification:
-
CE ISO
Most popular selling gold washing machine gravity equipment shaking table
Small Scale Mineral Rock Ore Gravity Separator Machine Vibration Gold Shaking Shaker Table for Gold Mining
Description of the Shaking table
Gold refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied in recovery of tungsten, tin,colombite, gold and many other rare&precious metals.It can also add in beneficiation procedure of iron, manganese and coal.6S shaking table can be usedin different stages in mining, like rough concentration, retreat and scanvenging. Recovery material size ranges are: coarse sand(0.5 mm to 2 mm), fine sand(0.074 mm to 0.5 mm)and slime(-0.074 mm). Effective mineral recovery size range is 0.22 mm to 2 mm.
Working principle of shaking table
| The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced. |
|
|
Main Features: 1.High recovery ratio 2.High concentration ratio 3.Easy installation 4.Simple operation 5.Deck constructed of fiber glass 6.Seven different decks to choose 7.Long working life 8.Adjustable stroke length and speed.
|
Technical parameters
| Name | Fine sand shaking table | |
| Size of tables | Length(mm) | 4450 |
| Width of driving side(mm) | 1855 | |
| Width of concentrating side(mm) | 1546 | |
| Max.feeding size(mm) | 0.5 | |
| Feeding capacity(t/d) | 10-20 | |
| Density(%) | 20-25 | |
| Stroke(mm) | 11-16 | |
| Frenquency(F) | 48-53 | |
| Quality for washing water in the table(t/d) | 30-60 | |
| Cross slope(°) | 1.5-3.5 | |
| Protrait slope(%) | 0.92 | |
| Concentration area | 7.6 | |
| Length scale | 2.6 | |
| Power(kw) | 1.1 | |

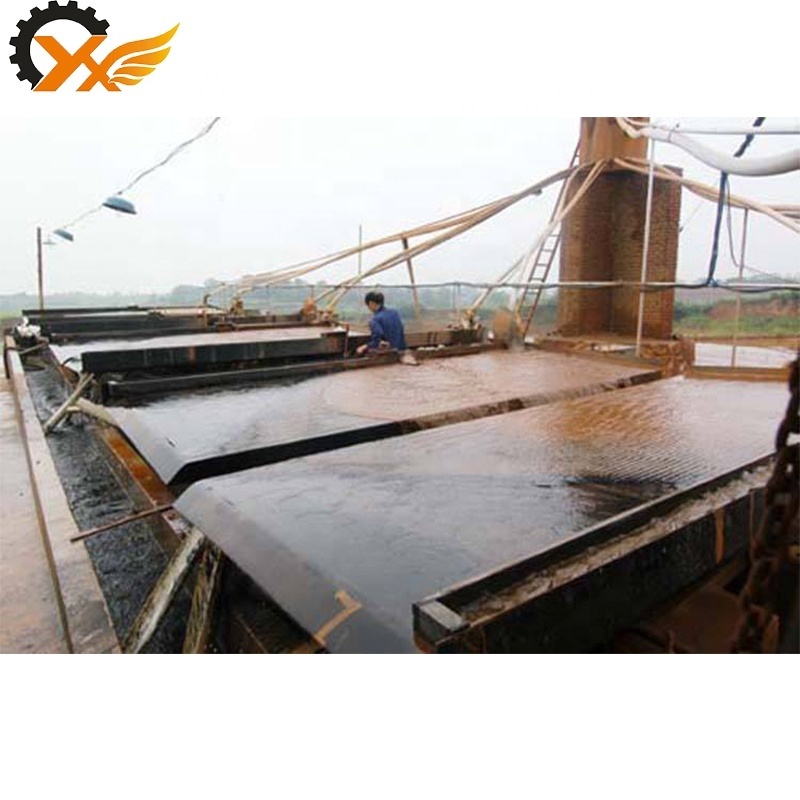

Deatils pictures of shaking table
Our Service
Pre-sale services:
Act as a good adviser and assistant of clients
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Train technical personnel for clients;
Services during the sale:
Respect clients;considering every aspect and details for our customers
Check products ahead of delivery;
Keep costumers informed about the shipping;
After-sale services:
We promise excellent after-sale service!
Assist client to prepare for the first construction scheme;
Install and debug the equipment;
main the first-line operators on site;
Take initiative to eliminate the troubles rapidly at site;
Provide maintenance for big items;
