Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
COSSIM
-
Model Number:
-
VMS103CD
-
Product name:
-
Dental Microscope
-
Eyepiece:
-
WF10X/22mm
-
Viewing head:
-
Trinocular Head
-
Objective:
-
0.65X-5.5X
-
Type:
-
Trolley Type
-
Illuminator:
-
LED Ring Light
-
Sensor:
-
1/2.33" Panasonic 16MP CMOS Sensor
-
HDMI-Compatible output:
-
1920 * 1080 60fps
-
USB output:
-
1920 * 1080/ 30, 1280*720/30, 640 * 480/30, 320 * 240/30(MJPG)
-
Input Voltage:
-
DC 5V~12V
Quick Details
-
Warranty:
-
12 months
-
Theory:
-
Stereo Microscope
-
Drawtube:
-
TRINOCULAR
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
COSSIM
-
Model Number:
-
VMS103CD
-
Product name:
-
Dental Microscope
-
Eyepiece:
-
WF10X/22mm
-
Viewing head:
-
Trinocular Head
-
Objective:
-
0.65X-5.5X
-
Type:
-
Trolley Type
-
Illuminator:
-
LED Ring Light
-
Sensor:
-
1/2.33" Panasonic 16MP CMOS Sensor
-
HDMI-Compatible output:
-
1920 * 1080 60fps
-
USB output:
-
1920 * 1080/ 30, 1280*720/30, 640 * 480/30, 320 * 240/30(MJPG)
-
Input Voltage:
-
DC 5V~12V
VMS103CD is a new dental microscope which has super long working distance and clear sharp images. The standard equipment is WF 10X eyepiece & 0.65X~5.5X objective, high brightness LED lamp. Adding 0.5X & 2X auxiliary objectives, the magnification could be 3.3X~220X, with the 20X Eyepiece.
Features
Features for Dental Microscope:
---Super long working distance, for any directions
---Total Standard Magnifictaion:6.5X~55X; Optical Magnificaton: 3.3X~220X
---Wide field of view, clear imaging and strong stereo sensation
Features for Microscope Camera:
---Adopt 16MP Panasonic CMOS Sensor
---Adopt 1/2.33” Sensor, more wide view field
---HDMI 1080P 60 FPS
---USB2.0 free drive 1080P 30FPS Image Output
---4K Video Record
---One push freeze/ defrost function, digital scaling function
---Supplying manual/ auto / one push exposition, exposure compensation adjustable
---Supplying manual/ auto / one push white balance, R, G, B adjustable
---Supplying 8 draw lines function, color, thickness, position adjustable
---Center cross lines display/ close
---Providing TF Card for saving, 64GB(max)
---Remote control
---Chinese / English Language, English(Default)
---Providing datas saved after closing camera
---Solid Metal Shell

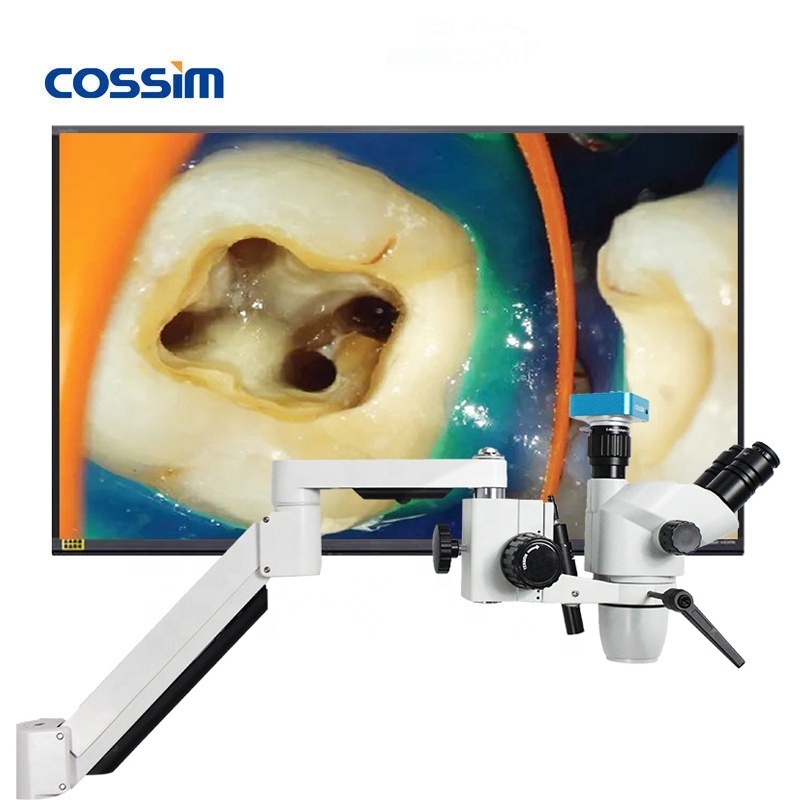

| VMS103CD Dental Stereo Microscope with HDMI Microscope Camera |
| Structure of VMS103CD Dental Stereo Microscope |
|
Specification for Head: |
||
|---|---|---|
|
Eyepiece |
High eye point WF10X/Φ22mm |
|
|
Objective |
0.65X-5.5X, ratio: 1:8.5 |
|
|
Total Mag. |
Standard:6.5X-55X (Optional Aux.0.5X, 2X ) 3.3X-220X with optional 20X eyepiece |
|
|
Head |
Trinocular, inclined 45°, rotatable 360°, Diopter adjustment: ±5 diopters |
|
|
F.O.V |
4.0-31.4mm |
|
|
Interpupillary Distance |
54-75mm |
|
|
Working Distance |
105mm |
|
|
Focusing Range |
45mm (pole: 240mm) |
|
|
Illuminator |
LED Ring Light |
|
|
Specification for Microscope Camera |
||
|
Sensor |
1/2.33” Panasonic 16MP CMOS Sensor |
|
|
Resolution |
1.335μm x 1.335μm |
|
|
HDMI output |
1920 * 1080 60fps |
|
|
USB output |
1920 * 1080/ 30, 1280*720/30, 640 * 480/30, 320 * 240/30(MJPG) |
|
|
Interface |
C/CS |
|
|
Exposure |
Auto/ Manal/ One-button |
|
|
Exposure Compensate |
Supply |
|
|
White Balance |
Auto/ Manal/ One-button, RGB Adjustable |
|
|
Memory |
64GB |
|
|
Input Voltage |
DC 5V~12V |
|
|
Lines |
8 types, color & thickness adjustable |
|
|
Center Lines |
Supply |
|
|
Language |
English(default)/ Chinese |
|
|
Remote |
Remote Operation Supply |
|
|
Eyepiece High eye point WF10X/Φ22mm. The trinocular head is inclined 45°. The field of plan objective can achieve ø 22mm, which let you have more wide and comfortable of observation. The trinocular can easily change in the observation and photography. |
|
Continuous Zoom Different multiple can be chosen. |
|
Built-in Objective 0.65X-5.5X, ratio: 1:8.5. |
|
Focusing Knob Focusing Range: 45mm (pole: 240mm). |
|
Black Handle A pair of black handle, which is convenient for user to operate. |
|
LED Right Light Working Diameter Range: 40~160mm, Metal Light Head: 60 LED granule, Color Tem. 5500 / 6500K. |
|
No. |
Item |
Spec. |
Quantity |
Unit |
|---|---|---|---|---|
|
1 |
Microscope Head |
6555 |
1 |
unit |
|
2 |
Eyepiece |
WF10X |
1 |
pair |
|
3 |
Built-in Objective |
0.65X-5.5X |
1 |
unit |
|
5 |
Microscope Support Arm Mounting |
/ |
1 |
unit |
|
6 |
Microscope Camera |
HD1600 |
1 |
unit |
|
7 |
Spot Light, LED Ring Light |
/ |
1 each |
pc |
|
8 |
Power Cord |
/ |
1 |
pc |
|
9 |
Microscope Adapter |
/ |
1 |
pc |
|
10 |
Trolley Table |
/ |
1 |
unit |
|
11 |
Operation Manual |
/ |
1 |
pc |
