Quick Details
-
HDMI version:
-
HDMI2.1
-
warranty:
-
1 years
-
Certification:
-
FCC ce RoHS
-
Color:
-
Black
-
Material:
-
Aluminum Alloy
-
Weight:
-
0.4KG
Quick Details
-
Model Number:
-
JL-CK02
-
Brand Name:
-
JustLink
-
Place of Origin:
-
Guangdong, China
-
HDMI version:
-
HDMI2.1
-
warranty:
-
1 years
-
Certification:
-
FCC ce RoHS
-
Color:
-
Black
-
Material:
-
Aluminum Alloy
-
Weight:
-
0.4KG
Products Description
Introduction

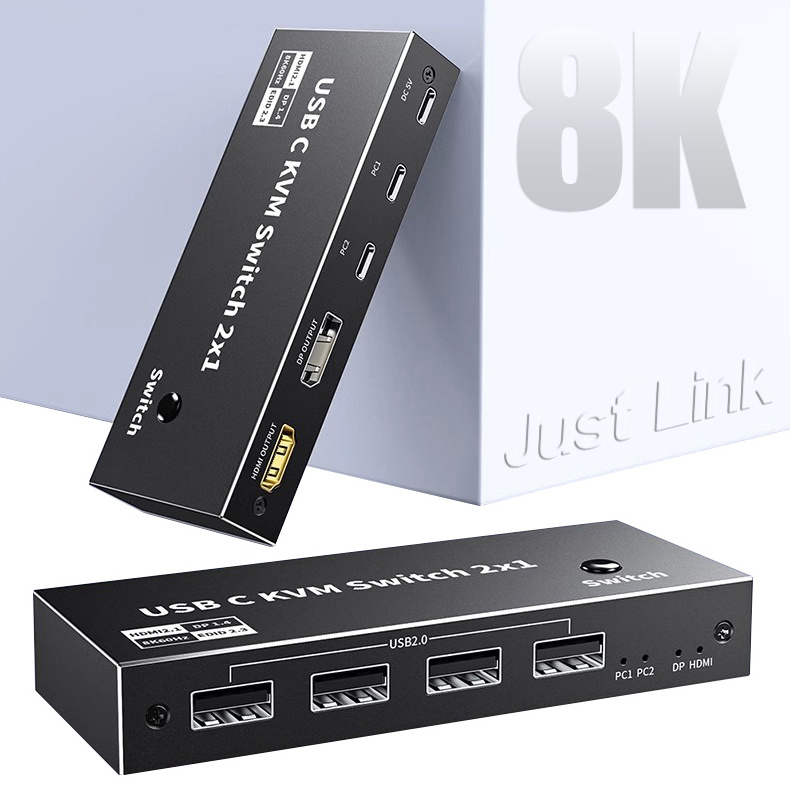

This is a 2 in 1 out USB C switcher. lt can connect two PCs to one monitor; it also has USB docking function, which can connect DP/HDM Video, USB external devices such as mouse, keyboard, printer, etc.
|
Input Port
|
3 x USB Type C Female Port
|
|
Output Port
|
1 x HDMI Female Port
1 x DP Female Port
4 x USB 2.0 A Female Port
|
|
Bandwidth
|
HDMI 2.1: 48Gbps
DP 1.4: 32.4Gbps
USB 2.0: 480Mbps
|
|
HDMI Output Resolution
|
1080P@60Hz/120Hz/165Hz,
4K@60/120Hz144HZ(DSC),
8K (DSC)
|
|
DP Output Resolution
|
1080P@60HZ/120Hz/165Hz,
4K@60/120Hz 144HZ(DSC),
8K(DSC)
|
|
Operating Temperature
|
-15℃~55℃ /5℉~131℉
|
|
DP Deep Color
|
8bit / 10bit / 12bit
|
|
DP Chroma
|
4:2:0 / 4:2:2 / 4:4:4
|
|
Material
|
Aluminium alloy Shell
|
|
Dimension
|
122mm(L)x48mm(W)x19.3mm(H)
|
|
Cable Length
|
2.0m Max(Standard 8K DP cable)
2.0m Max(Standard 8K HDMI cable)
|
* The USB C port of the laptop is Gen 2, the DP output can only be up to 4K/60Hz
* The USB C port of the laptop is Thunderbolt 3, the DP output can only be up to 4K/60Hz
* The USB C port of the laptop is Thunderbolt 4, the DP output can reach 4K/144Hz and 8K
* The USB C port of the laptop is Thunderbolt 3, the DP output can only be up to 4K/60Hz
* The USB C port of the laptop is Thunderbolt 4, the DP output can reach 4K/144Hz and 8K
