Quick Details
-
Voltage:
-
380v
-
Weight:
-
6500 KG
-
Product name:
-
Drum Screen Trommel
-
The Machines classification:
-
Building Stone Production Line
-
Applicaton:
-
Rock Crusher Processing
-
Raw material:
-
Stones Rocks Ores
-
Color:
-
Customer Requirement
-
Advantage:
-
High Capacity
-
Function:
-
Screening
Quick Details
-
Type:
-
Drum Screen
-
Place of Origin:
-
Henan, China, Henan
-
Brand Name:
-
KQ
-
Voltage:
-
380v
-
Weight:
-
6500 KG
-
Product name:
-
Drum Screen Trommel
-
The Machines classification:
-
Building Stone Production Line
-
Applicaton:
-
Rock Crusher Processing
-
Raw material:
-
Stones Rocks Ores
-
Color:
-
Customer Requirement
-
Advantage:
-
High Capacity
-
Function:
-
Screening
Products Description

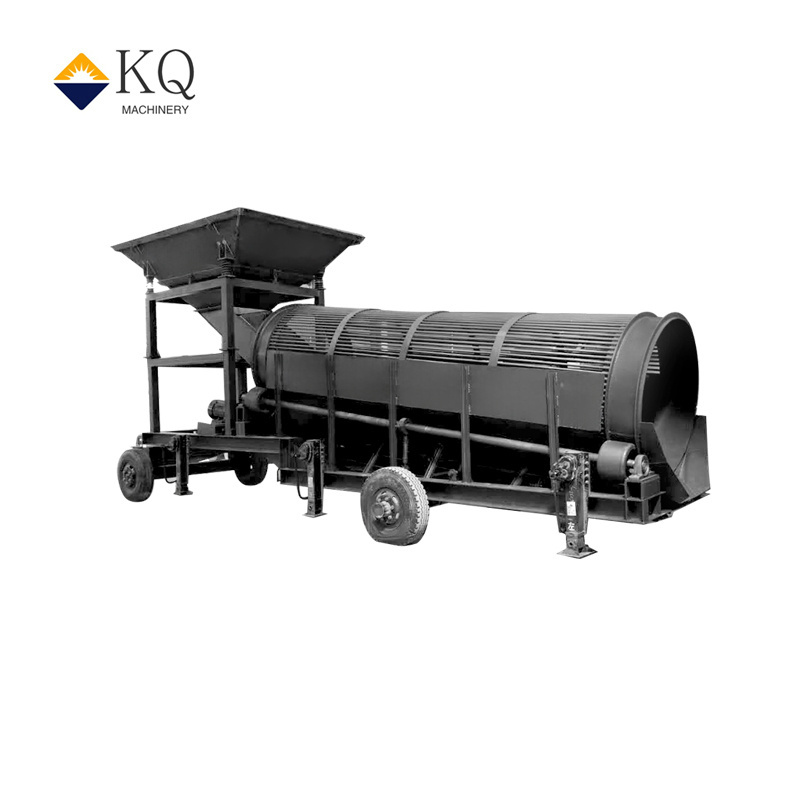

Trommel screen
Trommel screen is widely used in gravity separation for ore washing and desliming，or classifying fine and middle materials.It can make out more than two kinds of product.
Details Images
Working Principle
The roller device is installed on the frame obliquely. The motor is connected with the roller device through a coupling through a reducer, and drives the roller device to rotate around its axis. When the material enters the drum device, due to the inclination and rotation of the drum device, the material on the screen surface is turned and rolled, so that the qualified materials (products under the screen) are discharged through the discharge port at the bottom of the rear end of the drum, and the unqualified materials (the screen The upper product) is discharged through the discharge port at the end of the drum. Due to the overturning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being blocked.
Features:
1. The sieve holes are not easy to be blocked.
2. Smooth operation and low noise.
3. Simple structure and convenient maintenance.
4. The screening cylinder can be closed, which is easy to seal and collect dust.
5. The whole machine has high reliability and less one-time investment.
6. Using special screen mesh, high screening efficiency and long service life.
Product Paramenters
|
Specification
|
Cylinder
|
|
Rotate speed
|
Gradient
|
Power
|
Capacity
|
Overall dimension
|
weight
|
|
|
|
Diameter
|
Length
|
(r/min)
|
（°）
|
(kw)
|
(t/h)
|
(L×W×H)(mm)
|
(t)
|
|
|
|
(mm)
|
(mm)
|
|
|
|
|
|
|
|
|
GS1.0×3.0
|
1000
|
3000
|
22
|
2-2.5
|
1.5
|
20-60
|
3500 × 1400 x2200
|
1.5
|
|
|
GS1.2×4.5
|
1200
|
4500
|
17
|
2-2.5
|
4
|
30-80
|
5700x1600
|
2.5
|
|
|
|
|
|
|
|
|
|
x2400
|
|
|
|
GS1.5×5.0
|
1500
|
5000
|
14
|
2-2.5
|
7.5
|
80-160
|
6860 x1900 x2810
|
3.8
|
|
|
GS1.6×6.0
|
1600
|
6000
|
12
|
2-2.5
|
11
|
110-260
|
7300x2000 x3000
|
4.7
|
|
|
GS1.8×6.5
|
1800
|
6500
|
11.5
|
2-2.5
|
11
|
220-380
|
9000 x2200
|
6
|
|
|
|
|
|
|
|
|
|
x 3200
|
|
|
