UniGuard
has been manufacturing gps tracking products over 10 years, with experienced technical team and production lines.
Customization Details:
1. logo printing
2. packing box customization
2. hardware casing customization
4. software customization
5. customized URL
- Product Details
- {{item.text}}
Quick Details
-
Frequency (MHz):
-
gps tracker for speed governor
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UniGuard
-
Usage:
-
GPS Speed Limiter
-
Network:
-
GSM/GPRS 850/900/1800/1900MHz
-
Certificate:
-
CE ROHS
-
battery:
-
800 mAh Rechargeable Li-ion
-
Battery life:
-
8 hrs
-
Weight:
-
270g
-
Tracking system:
-
Web and APP
-
GPS accuracy:
-
5meters
-
GPS Sensitivity:
-
159dBm
-
Size:
-
137*75*29mm
Quick Details
-
Car Fitment:
-
Universal
-
Function:
-
GPS / GSM, speed limiter for bus, car speed limiter, speed monitoring system
-
Control Distance:
-
Unlimited
-
Frequency (MHz):
-
gps tracker for speed governor
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UniGuard
-
Usage:
-
GPS Speed Limiter
-
Network:
-
GSM/GPRS 850/900/1800/1900MHz
-
Certificate:
-
CE ROHS
-
battery:
-
800 mAh Rechargeable Li-ion
-
Battery life:
-
8 hrs
-
Weight:
-
270g
-
Tracking system:
-
Web and APP
-
GPS accuracy:
-
5meters
-
GPS Sensitivity:
-
159dBm
-
Size:
-
137*75*29mm
What is a GPS speed Limiter
A gps speed limiter is a combination of vehicle GPS tracker and vehicle speed limit technology. GPS integrated speed limiter device is designed to limit the maximum road speed of motor vehicles by control of engine power.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards, respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Products Description
UT04S GPS Speed Limiter Features:
1.
GPS Speed Limiter.
User can setup top speed to limit vehicle speed either by SMS or computer based tool.
2. Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.
3. USB flash data downloaded . Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless BLE printer.
4. Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.
5. Tamperproof. UniGuard vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40KM/H or 30KM/H. (Per Kenya or Ethiopia Standard)
6. Pre-warn if 95% of set speed limit is reached, beep sound will be produced continuously.
7. In installation UniGuard speed governor could be hidden in a place not accessible by unauthorized people.
8. The speed limiter recorder could communicate with computer by use of USB flash.
9. 6 to 60V working Voltage. Wide applicable for trucks, cars, school buses, taxi and other commercial vehicles.
10. Wireless Data Printing. Support connection with wireless portable printer and print the past 24 hr driving data.
1* GPS antenna
1* GSM antenna
1* Print control button
1* Sticker
2. Geo fence based Speed Limit. The device support 3 fences to setup different speed limit per fences.
3. USB flash data downloaded . Vehicle travelling data could be retrieved by using a computer or a USB flash or a wireless BLE printer.
4. Data could be stored for at least 72 working hours for future reference, including date, time, speed, car plate number, owner name, fitting center, installer name, installed date, longitude, latitude, etc.
5. Tamperproof. UniGuard vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode- vehicle speed is restricted to 40KM/H or 30KM/H. (Per Kenya or Ethiopia Standard)
6. Pre-warn if 95% of set speed limit is reached, beep sound will be produced continuously.
7. In installation UniGuard speed governor could be hidden in a place not accessible by unauthorized people.
8. The speed limiter recorder could communicate with computer by use of USB flash.
9. 6 to 60V working Voltage. Wide applicable for trucks, cars, school buses, taxi and other commercial vehicles.
10. Wireless Data Printing. Support connection with wireless portable printer and print the past 24 hr driving data.
11. Fuel Monitoring, by connecting with either ultrasonic fuel sensor or capactive fuel sensor

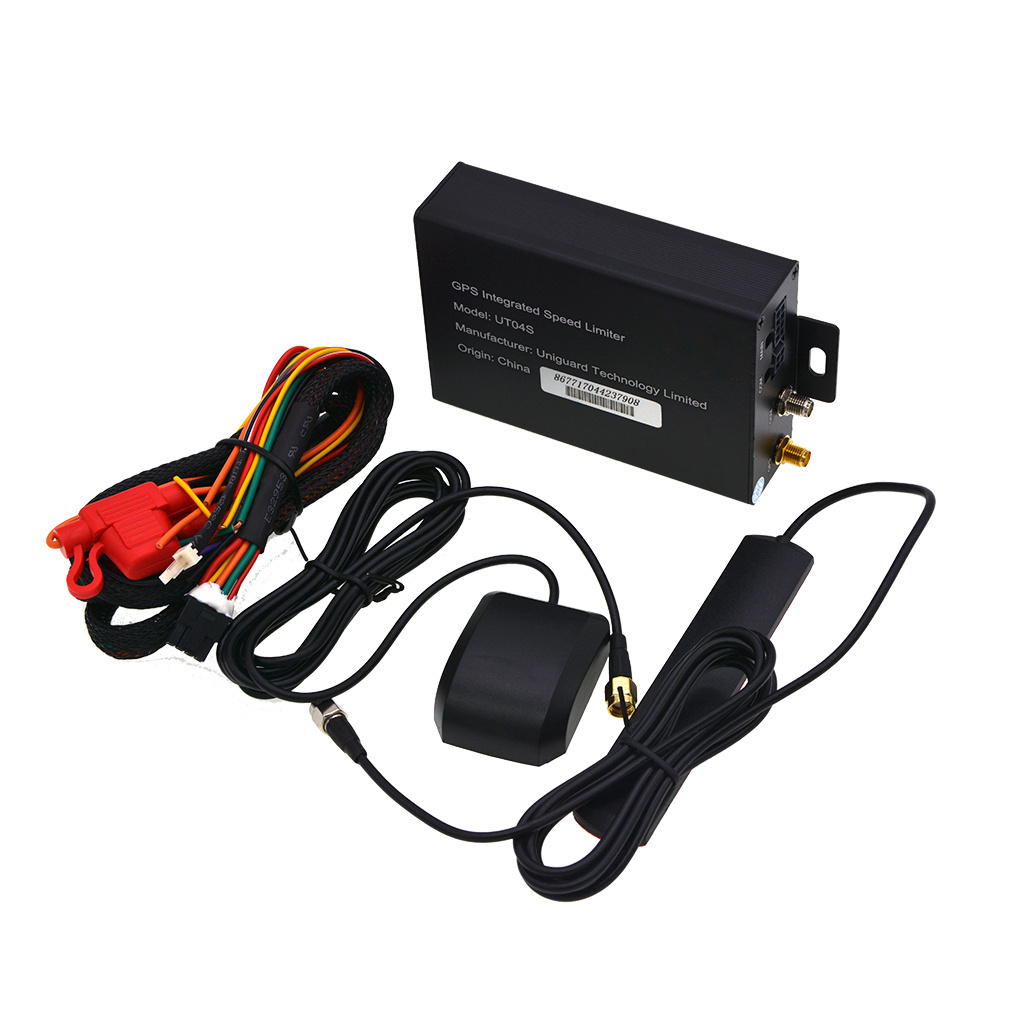

Packing details:
1*
UT04S GPS Speed Limiter
1* Enhanced power wires
1* GPS antenna
1* GSM antenna
1* Print control button
1* Sticker
1* original packing box
GPS Speed limiter is used for fleet management, Taxi business, Transportation business. It's also applied for trucks because of the accurate of fuel monitoring, and speed limitation.
Advantages of UniGuard GPS tracker integrated speed governor
* Safety by avoid over speeding.
* Increasing engine life
* Increasing engine efficiency
* Reduce maintenance cost
* Reduce pollution, increase environmental protection
* Ensure road safety for pedestrian, drivers, passengers and goods.
* Increasing engine life
* Increasing engine efficiency
* Reduce maintenance cost
* Reduce pollution, increase environmental protection
* Ensure road safety for pedestrian, drivers, passengers and goods.
Customization
Customization
Product Paramenters
|
Name
|
UT04 GPS speed Limiter
|
Battery
|
800 mAh rechargeable
|
||
|
Weight
|
191g
|
Working Power
|
2A
|
||
|
Dimension
|
110*75*30mm
|
GSM Chip
|
Quectel
|
||
|
Working Voltage
|
9-36V
|
GPS Chip
|
Ub-7020
|
||
|
GPS Speed Limiter Port
|
|
1 AD Port for fuel monitoring
|
|
||
|
|
|
1 USB port for USB disk data download
|
|
||
|
|
|
2 Port for Speed Limit
|
|
||
|
|
|
1 Input for Pulse speed
|
|
||
|
|
|
1 Input for wireless printer
|
|
||
|
Built in Flash
|
Store data of 72hrs
|
Built in Buzzer
|
Alarm when over speed and limit speed
|
||
|
Tracking Way
|
Web and APP
|
Account Level
|
Unlimited
|
||
|
Reports
|
Trip report, Speed report, Geo-fence report, Parking report, Driving Report, Alarm report, Mileage report, Engine Idle report
|
|
|
||
Connection diagram
Standard GPS Speed Limiter
Actuator for Mechanical Vehicle
Data download by USB disk
Wireless Printer for Data Printing
Solenoid Valve
Web Platform And Mobile APP
UniGuard GPSPOS Powerful GPS Tracking Platform(GPSPOS)
UniGuard GPS
Company has its own web platform and mobile app, iOS and Android application both. Our web platform is hosted by cloud cluster server. The distingushed features are:
1. It can host unlimited quantity of gps tracking device
2. it can track person, pet, vehicles at simultanously.
3. Multiple maps optional: Google map,Tecent map, gaode map, baidu map,tian map,mapbox map,OSM map,microsoft map, ArcGIS map
4. High speed server, and never goes down.
5. Main functions: Live Track, history play back, Stop engine, set time interval and, set time zone,etc,Translate physical address, Fuel lever monitoring, View all types of alarm & report, etc.
6. Admin account is easy and friendly for fleet management.
7. Language choices: it suppors 100+ languages
1. It can host unlimited quantity of gps tracking device
2. it can track person, pet, vehicles at simultanously.
3. Multiple maps optional: Google map,Tecent map, gaode map, baidu map,tian map,mapbox map,OSM map,microsoft map, ArcGIS map
4. High speed server, and never goes down.
5. Main functions: Live Track, history play back, Stop engine, set time interval and, set time zone,etc,Translate physical address, Fuel lever monitoring, View all types of alarm & report, etc.
6. Admin account is easy and friendly for fleet management.
7. Language choices: it suppors 100+ languages
Web Tracking
Advanced web tracking software,
Fast login
One click to view all devices status
Realtime location tracking
